| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33757cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33757cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,949,440 | 85,576,320 |
| Size | 435.8 MB | 81.6 MB |
| Events in quadrant A | 2,824,806 | 562,810 |
| Events in quadrant B | 3,097,636 | 571,529 |
| Events in quadrant C | 3,278,147 | 572,163 |
| Events in quadrant D | 4,305,171 | 540,793 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11420 | 3 |
| B | 0 | 12335 | 2 |
| C | 0 | 12802 | 2 |
| D | 0 | 16121 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4908 | 142 | 2.893236% |
| B | 4908 | 138 | 2.811736% |
| C | 4908 | 152 | 3.096985% |
| D | 4908 | 156 | 3.178484% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7061 | 4909 | 118 | 118 | 1.67% | 2.40% |  |
| B | 7061 | 4909 | 95 | 95 | 1.35% | 1.94% |  |
| C | 7061 | 4909 | 116 | 116 | 1.64% | 2.36% |  |
| D | 7061 | 4908 | 136 | 136 | 1.93% | 2.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 378981 | 3063.36 | 627 | 617 | 123.5 |
| A | 10 | 83 | 10098 | 76.76 | 627 | 617 | 123.5 |
| A | 13 | 254 | 9121 | 68.85 | 627 | 617 | 123.5 |
| B | 5 | 172 | 321175 | 2729.78 | 630 | 617 | 117.4 |
| B | 0 | 190 | 137069 | 1161.98 | 630 | 617 | 117.4 |
| B | 5 | 255 | 87548 | 740.28 | 630 | 617 | 117.4 |
| C | 15 | 214 | 214970 | 1510.87 | 625 | 632 | 141.9 |
| C | 9 | 187 | 204519 | 1437.2 | 625 | 632 | 141.9 |
| C | 0 | 239 | 177220 | 1244.77 | 625 | 632 | 141.9 |
| D | 8 | 195 | 1094494 | 7229.96 | 623 | 609 | 151.3 |
| D | 2 | 250 | 312578 | 2061.94 | 623 | 609 | 151.3 |
| D | 7 | 223 | 217514 | 1433.62 | 623 | 609 | 151.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

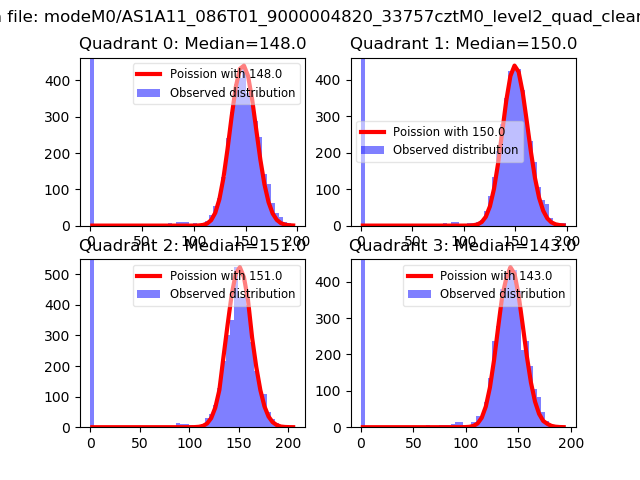

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

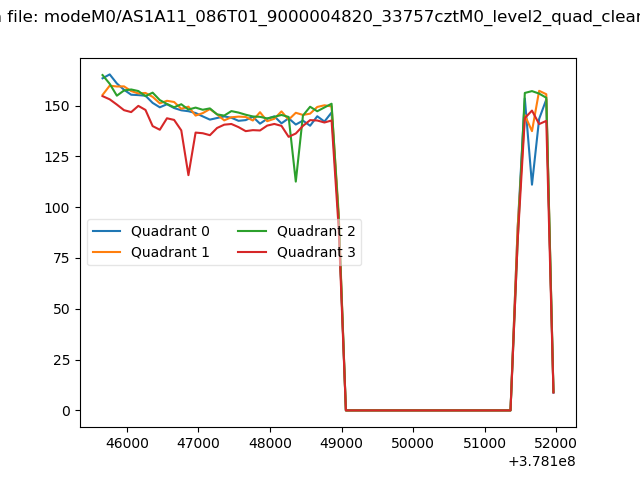

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
