| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33758cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33758cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,933,760 | 92,436,480 |
| Size | 454.8 MB | 88.2 MB |
| Events in quadrant A | 2,781,266 | 623,434 |
| Events in quadrant B | 3,722,351 | 619,960 |
| Events in quadrant C | 3,518,499 | 613,152 |
| Events in quadrant D | 4,090,587 | 599,873 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11391 | 3 |
| B | 0 | 14202 | 2 |
| C | 0 | 13407 | 2 |
| D | 0 | 15539 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4886 | 170 | 3.479329% |
| B | 4886 | 274 | 5.607859% |
| C | 4886 | 376 | 7.695456% |
| D | 4886 | 164 | 3.356529% |

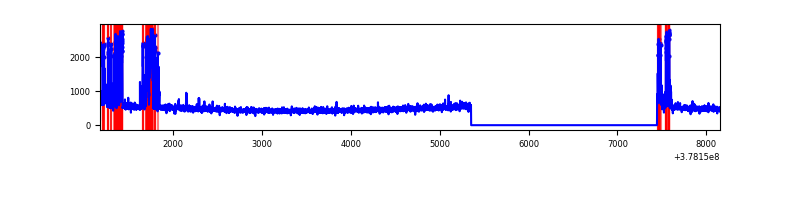

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6979 | 4887 | 147 | 147 | 2.11% | 3.01% |  |
| B | 6979 | 4887 | 227 | 227 | 3.25% | 4.64% |  |
| C | 6979 | 4887 | 368 | 368 | 5.27% | 7.53% |  |
| D | 6978 | 4886 | 151 | 151 | 2.16% | 3.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 472992 | 4027.76 | 589 | 580 | 117.3 |
| A | 15 | 169 | 10658 | 85.92 | 589 | 580 | 117.3 |
| A | 13 | 6 | 9903 | 79.49 | 589 | 580 | 117.3 |
| B | 5 | 172 | 574420 | 5162.94 | 588 | 575 | 111.1 |
| B | 15 | 222 | 486625 | 4373.04 | 588 | 575 | 111.1 |
| B | 4 | 251 | 160343 | 1437.45 | 588 | 575 | 111.1 |
| C | 9 | 187 | 903139 | 6990.8 | 566 | 573 | 129.1 |
| C | 15 | 214 | 208708 | 1612.1 | 566 | 573 | 129.1 |
| C | 0 | 10 | 115110 | 887.14 | 566 | 573 | 129.1 |
| D | 8 | 195 | 966311 | 6734.52 | 582 | 568 | 143.4 |
| D | 2 | 250 | 295659 | 2057.79 | 582 | 568 | 143.4 |
| D | 7 | 223 | 166271 | 1155.51 | 582 | 568 | 143.4 |

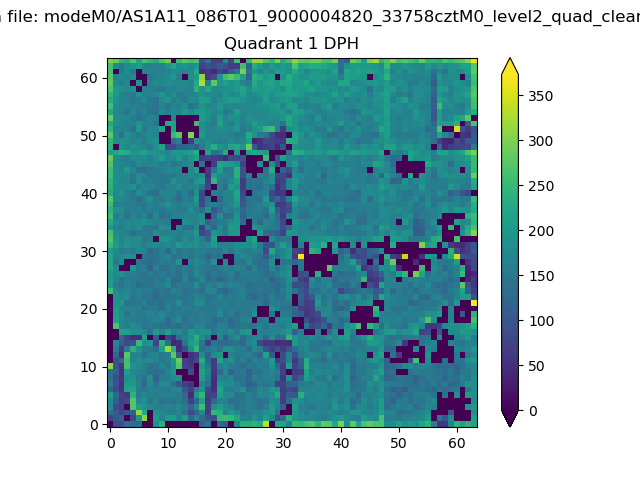

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

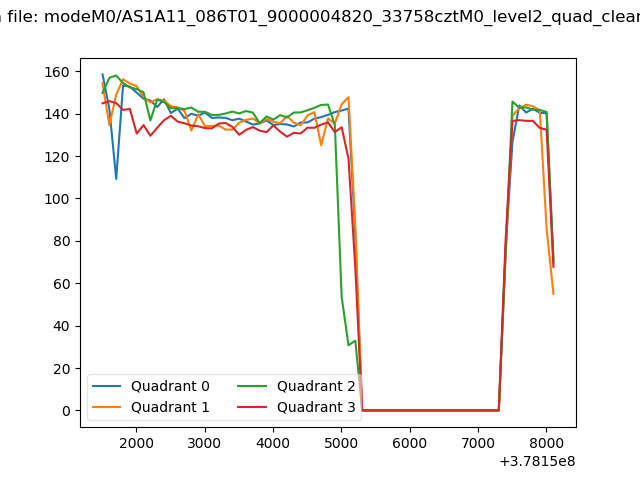

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

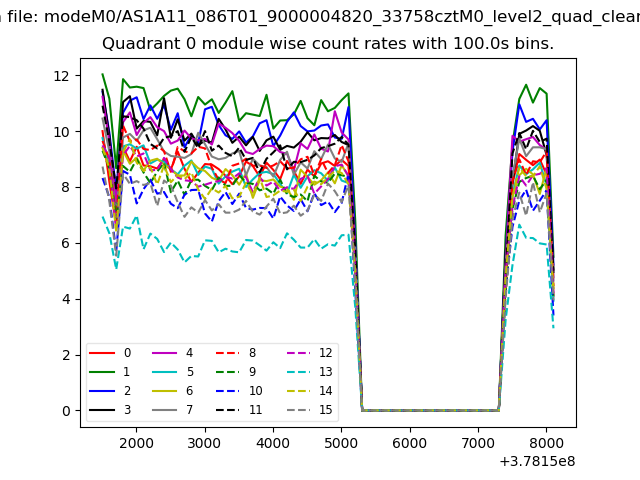

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

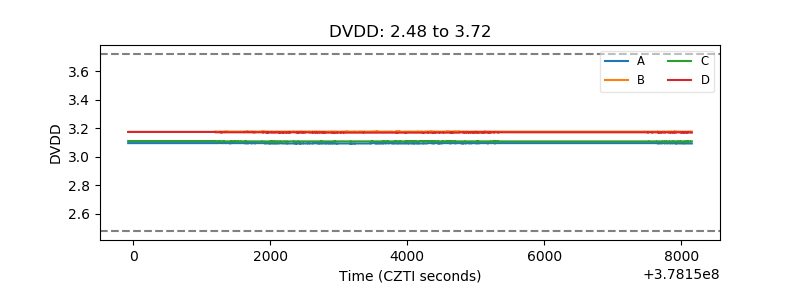

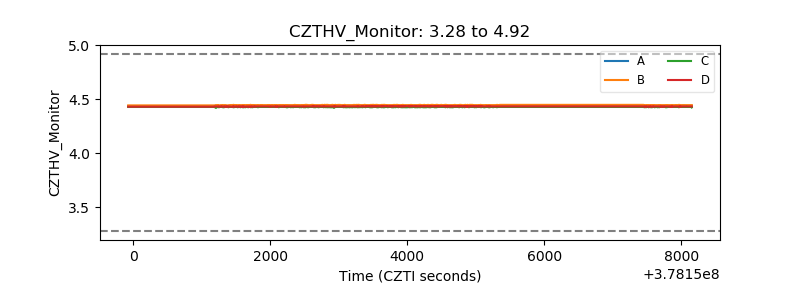

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

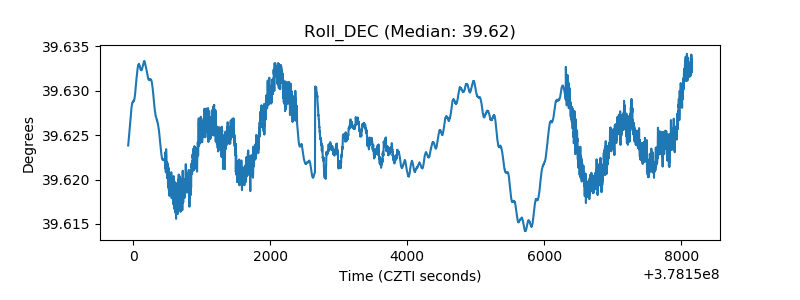

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
