| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33760cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33760cztM0_level2_quad_clean.evt |
| Size (bytes) | 582,344,640 | 78,626,880 |
| Size | 555.4 MB | 75.0 MB |
| Events in quadrant A | 5,832,606 | 468,297 |
| Events in quadrant B | 3,580,650 | 507,754 |
| Events in quadrant C | 3,411,291 | 509,977 |
| Events in quadrant D | 4,410,350 | 480,647 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 34 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21438 | 3 |
| B | 0 | 14552 | 2 |
| C | 0 | 13857 | 2 |
| D | 0 | 17304 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5921 | 1234 | 20.841074% |
| B | 5921 | 195 | 3.293363% |
| C | 5921 | 122 | 2.060463% |
| D | 5921 | 141 | 2.381355% |

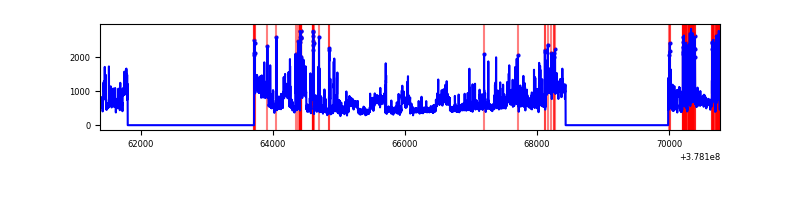

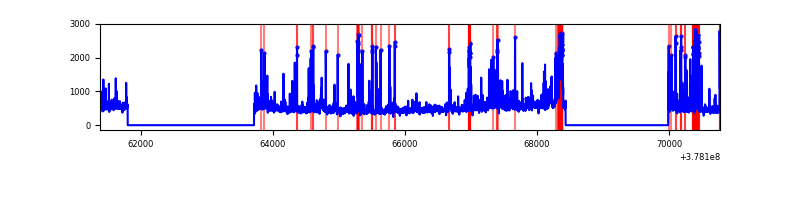

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9386 | 5922 | 1007 | 1007 | 10.73% | 17.00% |  |
| B | 9386 | 5922 | 144 | 144 | 1.53% | 2.43% |  |
| C | 9387 | 5923 | 88 | 88 | 0.94% | 1.49% |  |
| D | 9387 | 5923 | 132 | 132 | 1.41% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2970622 | 23767.06 | 614 | 599 | 125.0 |
| A | 15 | 237 | 422532 | 3376.44 | 614 | 599 | 125.0 |
| A | 7 | 16 | 39204 | 308.93 | 614 | 599 | 125.0 |
| B | 5 | 172 | 379784 | 2906.71 | 683 | 665 | 130.4 |
| B | 5 | 200 | 128033 | 976.53 | 683 | 665 | 130.4 |
| B | 0 | 229 | 109938 | 837.8 | 683 | 665 | 130.4 |
| C | 9 | 187 | 343013 | 2221.18 | 670 | 674 | 154.1 |
| C | 15 | 214 | 258650 | 1673.81 | 670 | 674 | 154.1 |
| C | 0 | 10 | 113346 | 731.04 | 670 | 674 | 154.1 |
| D | 8 | 195 | 967852 | 5876.3 | 670 | 652 | 164.6 |
| D | 2 | 250 | 232703 | 1409.84 | 670 | 652 | 164.6 |
| D | 1 | 47 | 211311 | 1279.87 | 670 | 652 | 164.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

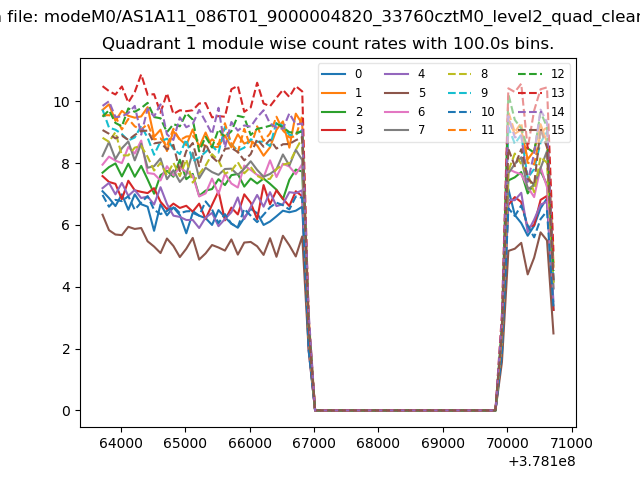

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

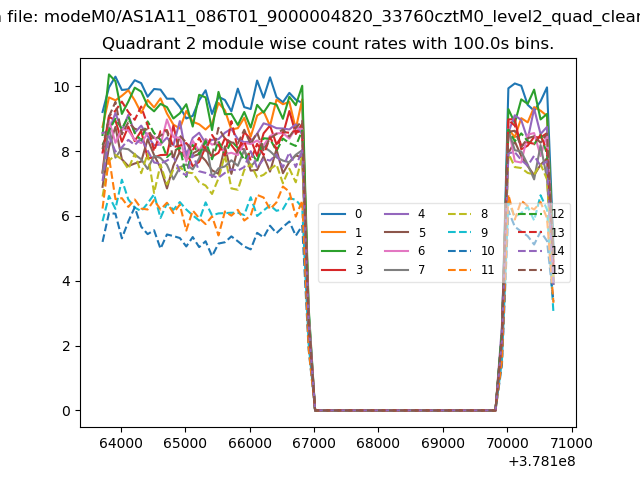

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

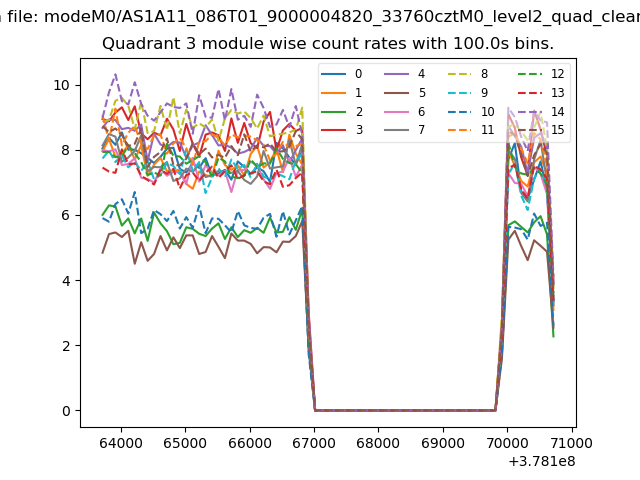

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

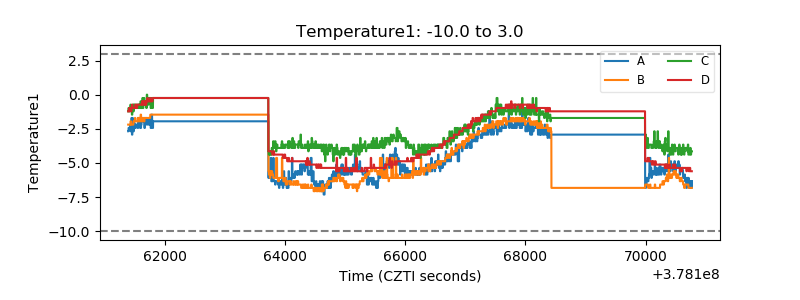

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

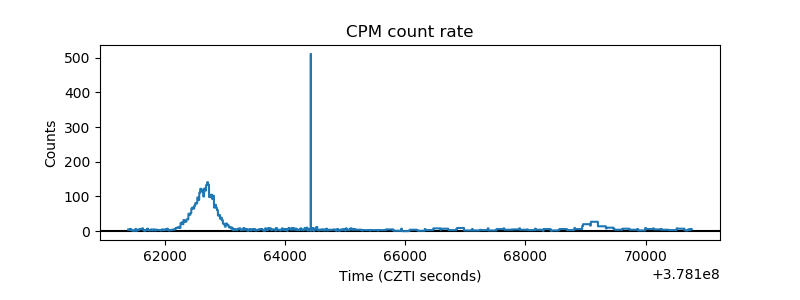

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

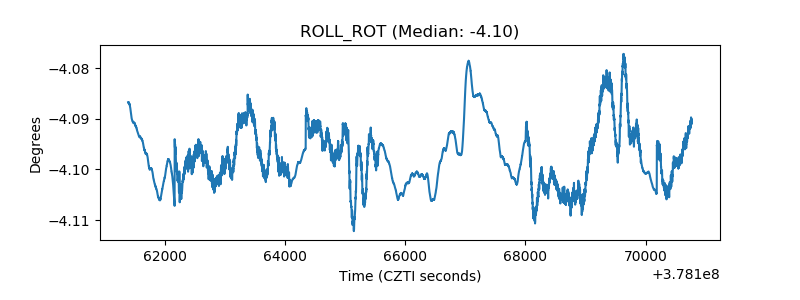

| _ROLL_ROT |  |
