| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33762cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33762cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,029,035,520 | 131,785,920 |
| Size | 981.4 MB | 125.7 MB |
| Events in quadrant A | 8,188,833 | 793,749 |
| Events in quadrant B | 6,809,868 | 826,385 |
| Events in quadrant C | 6,294,547 | 831,368 |
| Events in quadrant D | 9,133,812 | 782,060 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31484 | 3 |
| B | 0 | 27533 | 2 |
| C | 0 | 25800 | 2 |
| D | 0 | 34898 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10945 | 948 | 8.661489% |
| B | 10945 | 384 | 3.508451% |
| C | 10945 | 185 | 1.690270% |
| D | 10945 | 435 | 3.974418% |

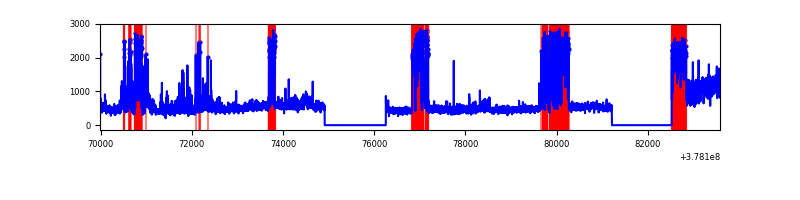

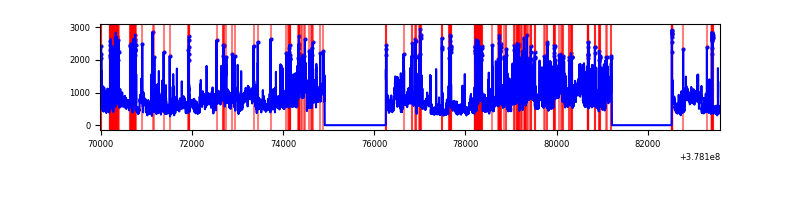

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13598 | 10945 | 766 | 766 | 5.63% | 7.00% |  |
| B | 13598 | 10944 | 258 | 258 | 1.90% | 2.36% |  |
| C | 13598 | 10945 | 138 | 138 | 1.01% | 1.26% |  |
| D | 13598 | 10945 | 359 | 359 | 2.64% | 3.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2376917 | 9830.32 | 1216 | 1191 | 241.7 |
| A | 15 | 237 | 957910 | 3958.73 | 1216 | 1191 | 241.7 |
| A | 7 | 16 | 129410 | 530.55 | 1216 | 1191 | 241.7 |
| B | 5 | 172 | 1097958 | 4606.57 | 1247 | 1215 | 238.1 |
| B | 5 | 200 | 243776 | 1018.81 | 1247 | 1215 | 238.1 |
| B | 5 | 255 | 163761 | 682.73 | 1247 | 1215 | 238.1 |
| C | 9 | 187 | 619975 | 2189.65 | 1226 | 1234 | 282.6 |
| C | 15 | 214 | 474698 | 1675.53 | 1226 | 1234 | 282.6 |
| C | 0 | 10 | 171494 | 602.53 | 1226 | 1234 | 282.6 |
| D | 8 | 195 | 2213957 | 7453.9 | 1218 | 1185 | 296.9 |
| D | 2 | 250 | 709647 | 2386.51 | 1218 | 1185 | 296.9 |
| D | 1 | 47 | 383005 | 1286.19 | 1218 | 1185 | 296.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

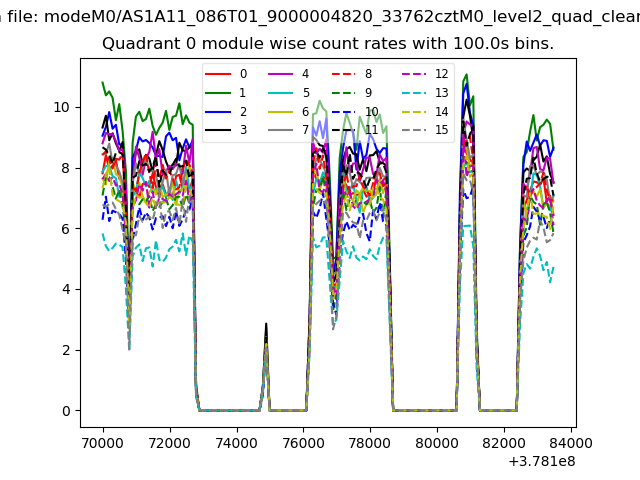

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

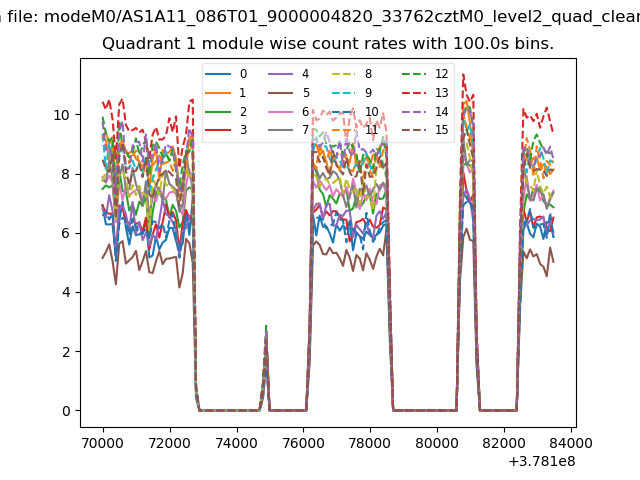

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

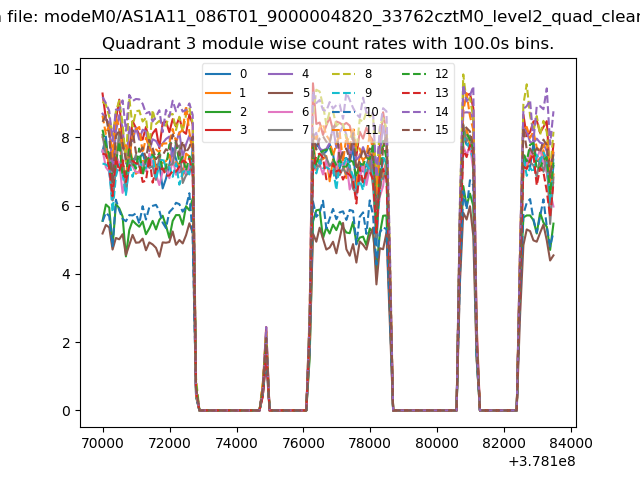

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

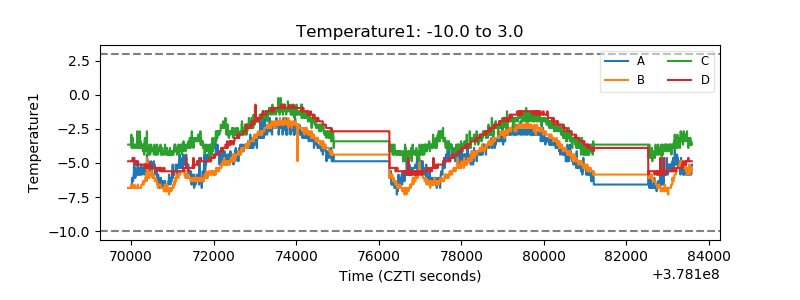

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

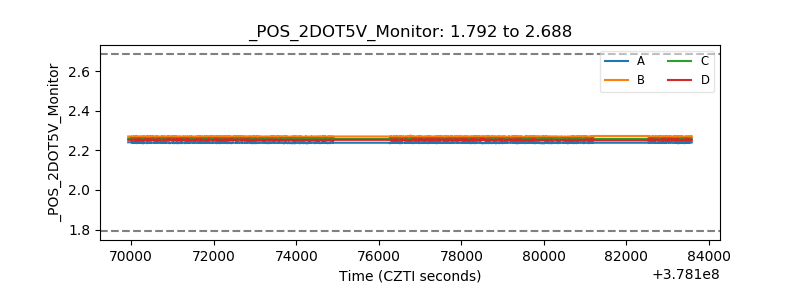

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

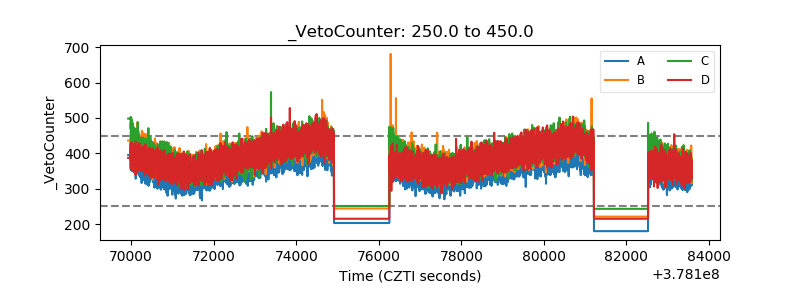

| Veto Counter |  |
