| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33772cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33772cztM0_level2_quad_clean.evt |
| Size (bytes) | 598,806,720 | 84,631,680 |
| Size | 571.1 MB | 80.7 MB |
| Events in quadrant A | 6,080,322 | 531,145 |
| Events in quadrant B | 3,192,083 | 586,160 |
| Events in quadrant C | 3,394,257 | 583,969 |
| Events in quadrant D | 5,140,121 | 520,347 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 38 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21462 | 3 |
| B | 0 | 12494 | 2 |
| C | 0 | 13212 | 2 |
| D | 0 | 18642 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4858 | 1340 | 27.583368% |
| B | 4858 | 195 | 4.013998% |
| C | 4858 | 212 | 4.363936% |
| D | 4858 | 665 | 13.688761% |

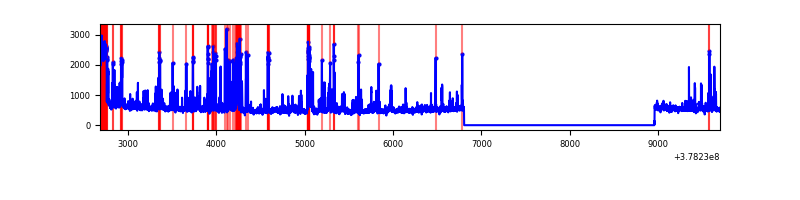

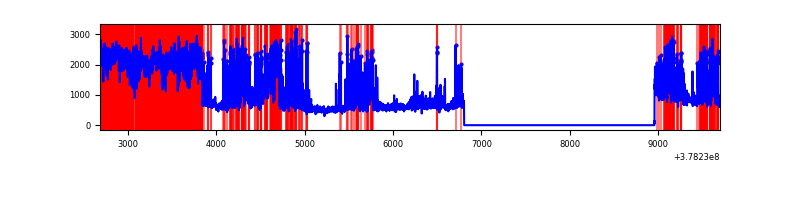

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7011 | 4859 | 1200 | 1200 | 17.12% | 24.70% |  |
| B | 7011 | 4859 | 166 | 166 | 2.37% | 3.42% |  |
| C | 7011 | 4859 | 190 | 190 | 2.71% | 3.91% |  |
| D | 7011 | 4859 | 655 | 655 | 9.34% | 13.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2004012 | 18217.45 | 557 | 550 | 110.0 |
| A | 15 | 237 | 1884545 | 17131.14 | 557 | 550 | 110.0 |
| A | 13 | 6 | 14091 | 123.13 | 557 | 550 | 110.0 |
| B | 5 | 172 | 585246 | 5106.1 | 605 | 591 | 114.5 |
| B | 0 | 229 | 48120 | 415.1 | 605 | 591 | 114.5 |
| B | 0 | 189 | 42251 | 363.84 | 605 | 591 | 114.5 |
| C | 9 | 187 | 479436 | 3518.71 | 599 | 607 | 136.1 |
| C | 15 | 214 | 210132 | 1539.71 | 599 | 607 | 136.1 |
| C | 0 | 10 | 145440 | 1064.31 | 599 | 607 | 136.1 |
| D | 8 | 195 | 808701 | 5461.63 | 556 | 545 | 148.0 |
| D | 2 | 250 | 701776 | 4739.01 | 556 | 545 | 148.0 |
| D | 1 | 47 | 559519 | 3777.62 | 556 | 545 | 148.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

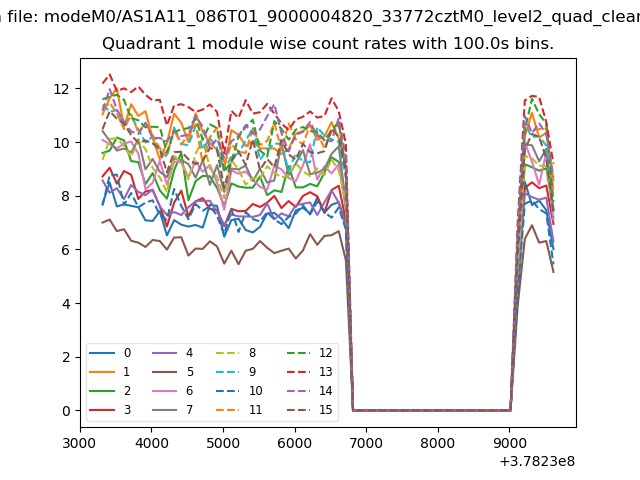

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

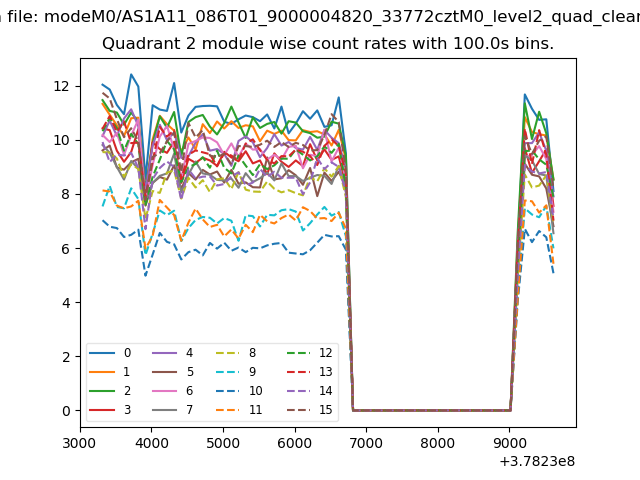

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

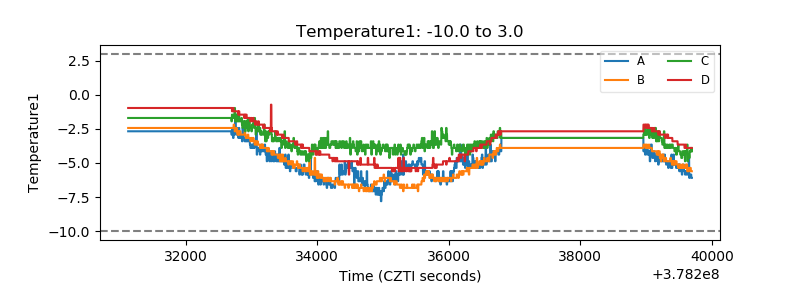

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

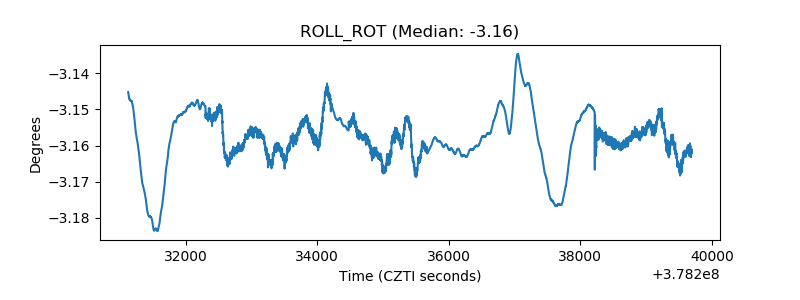

| _ROLL_ROT |  |
| _Roll_DEC |  |

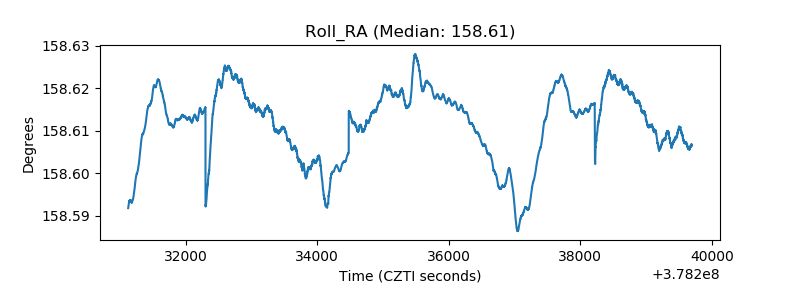

| _Roll_RA |  |

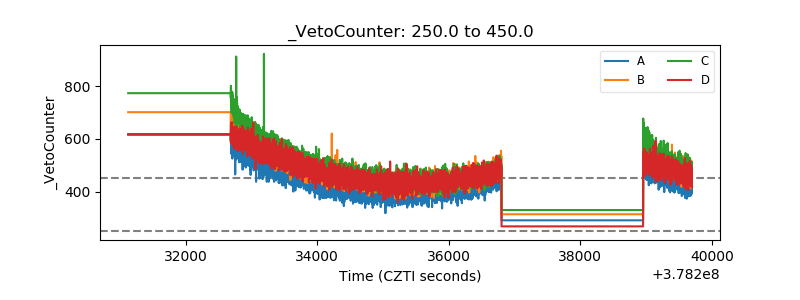

| Veto Counter |  |
