| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33774cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33774cztM0_level2_quad_clean.evt |
| Size (bytes) | 532,224,000 | 84,300,480 |
| Size | 507.6 MB | 80.4 MB |
| Events in quadrant A | 5,373,149 | 520,525 |
| Events in quadrant B | 3,296,769 | 560,328 |
| Events in quadrant C | 3,083,349 | 563,195 |
| Events in quadrant D | 4,003,656 | 534,713 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19703 | 3 |
| B | 0 | 13350 | 2 |
| C | 0 | 12358 | 2 |
| D | 0 | 15578 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5342 | 689 | 12.897791% |
| B | 5342 | 168 | 3.144890% |
| C | 5342 | 54 | 1.010857% |
| D | 5342 | 136 | 2.545863% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

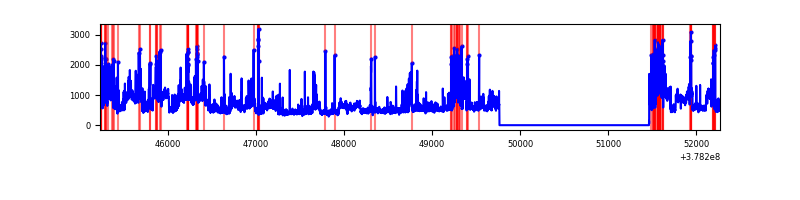

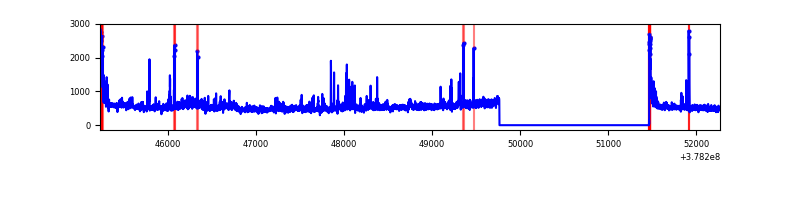

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7043 | 5343 | 549 | 549 | 7.79% | 10.28% |  |
| B | 7043 | 5343 | 127 | 127 | 1.80% | 2.38% |  |
| C | 7043 | 5343 | 43 | 43 | 0.61% | 0.80% |  |
| D | 7043 | 5343 | 120 | 120 | 1.70% | 2.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1826613 | 15444.21 | 589 | 578 | 118.2 |
| A | 15 | 169 | 1235844 | 10447.61 | 589 | 578 | 118.2 |
| A | 13 | 6 | 15447 | 125.76 | 589 | 578 | 118.2 |
| B | 5 | 172 | 426014 | 3609.57 | 615 | 601 | 117.9 |
| B | 4 | 251 | 175620 | 1485.01 | 615 | 601 | 117.9 |
| B | 5 | 255 | 55984 | 469.92 | 615 | 601 | 117.9 |
| C | 15 | 214 | 233315 | 1656.18 | 607 | 611 | 140.5 |
| C | 3 | 233 | 183305 | 1300.25 | 607 | 611 | 140.5 |
| C | 0 | 10 | 119042 | 842.88 | 607 | 611 | 140.5 |
| D | 8 | 195 | 907600 | 5659.35 | 598 | 587 | 160.3 |
| D | 2 | 249 | 140274 | 871.58 | 598 | 587 | 160.3 |
| D | 12 | 6 | 137603 | 854.92 | 598 | 587 | 160.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

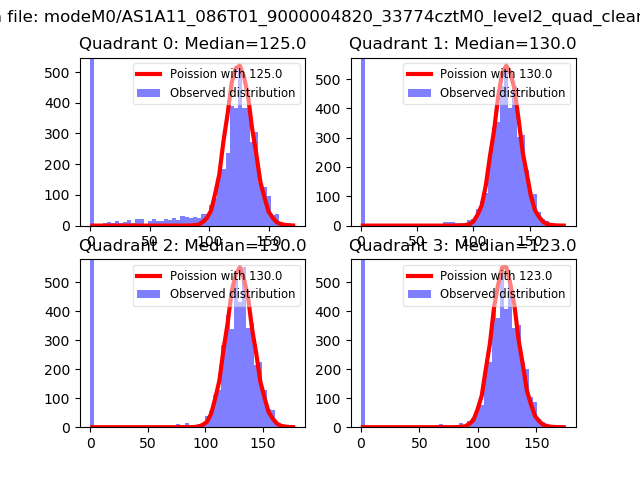

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

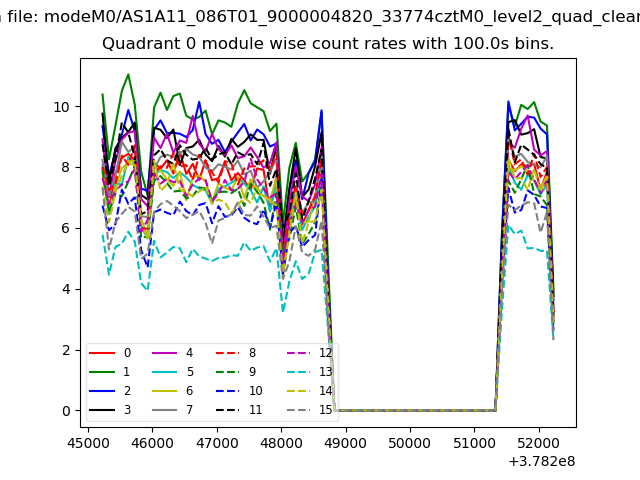

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

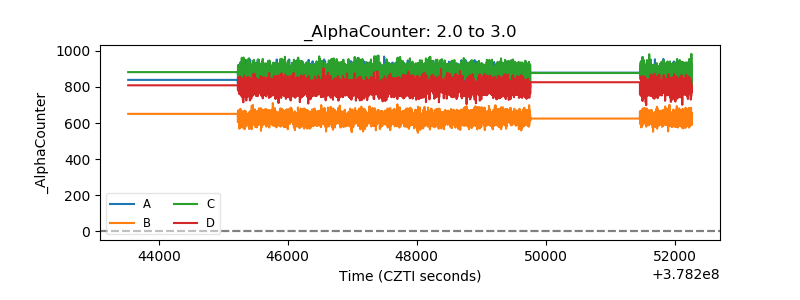

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

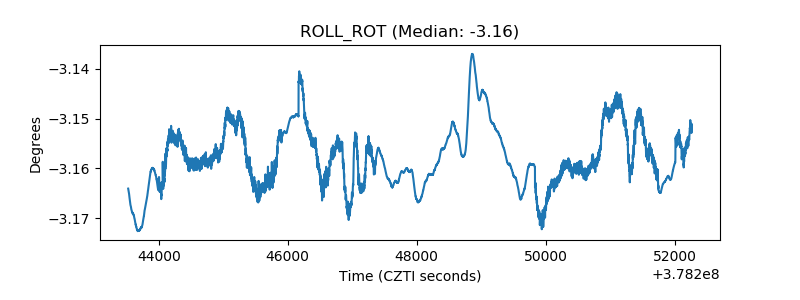

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

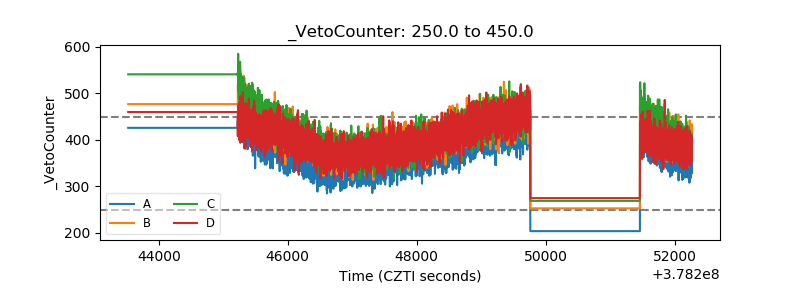

| Veto Counter |  |
