| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_086T01_9000004820_33787cztM0_level2.evt | modeM0/AS1A11_086T01_9000004820_33787cztM0_level2_quad_clean.evt |
| Size (bytes) | 643,340,160 | 85,072,320 |
| Size | 613.5 MB | 81.1 MB |
| Events in quadrant A | 4,053,719 | 584,575 |
| Events in quadrant B | 3,254,103 | 603,415 |
| Events in quadrant C | 2,829,381 | 614,642 |
| Events in quadrant D | 9,011,498 | 424,957 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 40 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15330 | 3 |
| B | 0 | 12939 | 2 |
| C | 0 | 11362 | 2 |
| D | 0 | 30152 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4962 | 446 | 8.988311% |
| B | 4962 | 168 | 3.385732% |
| C | 4962 | 42 | 0.846433% |
| D | 4962 | 2359 | 47.541314% |

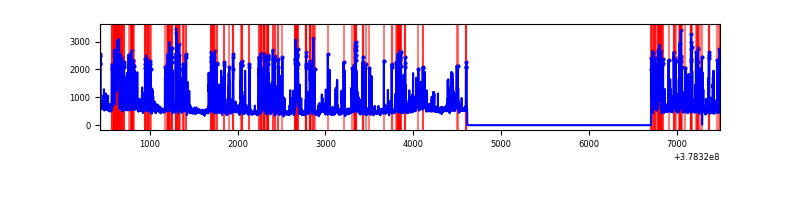

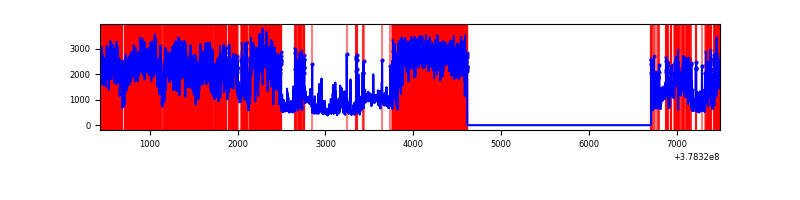

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7054 | 4963 | 336 | 336 | 4.76% | 6.77% |  |
| B | 7054 | 4963 | 124 | 124 | 1.76% | 2.50% |  |
| C | 7054 | 4963 | 30 | 30 | 0.43% | 0.60% |  |
| D | 7054 | 4963 | 2423 | 2423 | 34.35% | 48.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 1736925 | 14964.2 | 587 | 577 | 116.0 |
| A | 15 | 169 | 25178 | 212.01 | 587 | 577 | 116.0 |
| A | 13 | 6 | 13628 | 112.47 | 587 | 577 | 116.0 |
| B | 5 | 172 | 532814 | 4642.34 | 605 | 592 | 114.6 |
| B | 15 | 222 | 86667 | 750.8 | 605 | 592 | 114.6 |
| B | 4 | 232 | 37388 | 320.96 | 605 | 592 | 114.6 |
| C | 15 | 214 | 218425 | 1575.44 | 603 | 611 | 138.3 |
| C | 0 | 10 | 122904 | 884.54 | 603 | 611 | 138.3 |
| C | 3 | 233 | 95372 | 685.4 | 603 | 611 | 138.3 |
| D | 12 | 235 | 5273119 | 44099.51 | 448 | 438 | 119.6 |
| D | 8 | 195 | 960359 | 8028.56 | 448 | 438 | 119.6 |
| D | 1 | 52 | 293246 | 2448.98 | 448 | 438 | 119.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

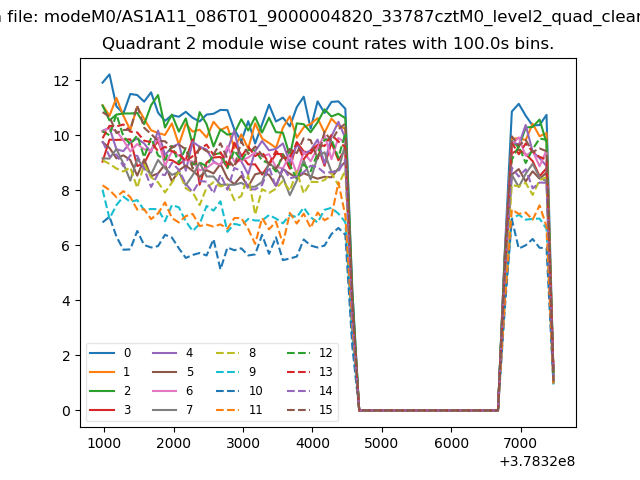

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

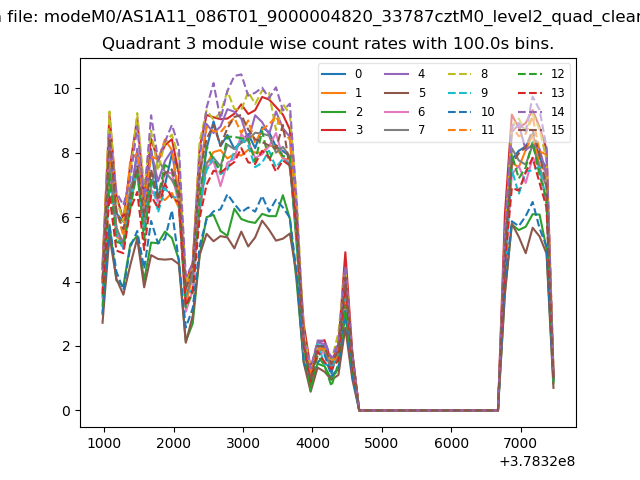

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

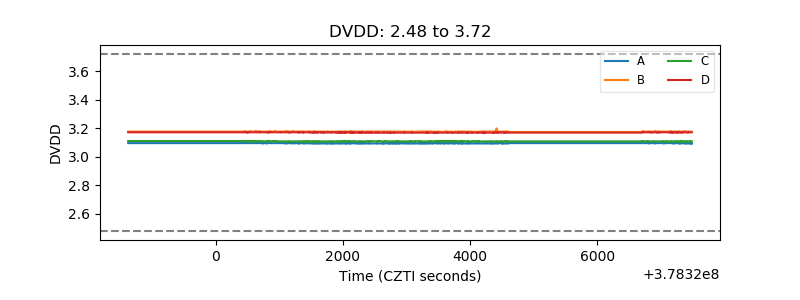

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

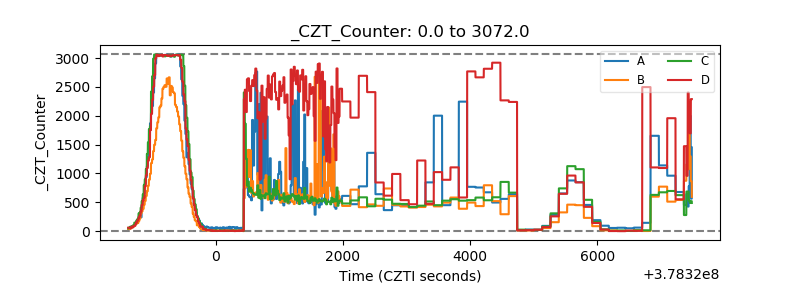

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

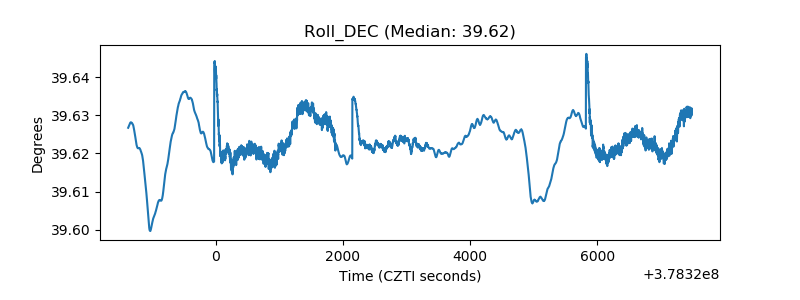

| _Roll_DEC |  |

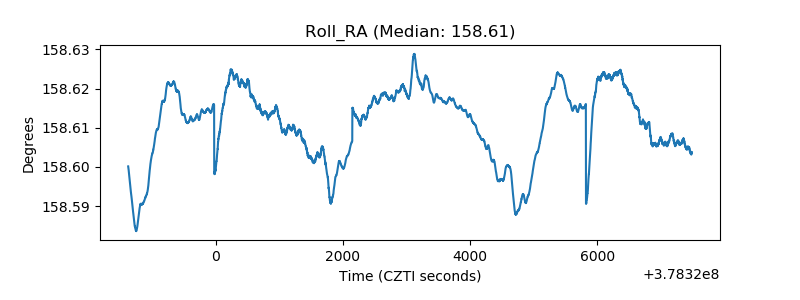

| _Roll_RA |  |
| Veto Counter |  |
