| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_077T01_9000004824_33813cztM0_level2.evt | modeM0/AS1T04_077T01_9000004824_33813cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,539,048,960 | 141,998,400 |
| Size | 1.4 GB | 135.4 MB |
| Events in quadrant A | 7,005,269 | 879,005 |
| Events in quadrant B | 9,229,697 | 849,302 |
| Events in quadrant C | 8,089,245 | 860,261 |
| Events in quadrant D | 21,368,573 | 767,329 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 56 | 0 |
| B | 0 | 56 | 0 |
| C | 0 | 56 | 0 |
| D | 0 | 56 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28999 | 4 |
| B | 0 | 36010 | 3 |
| C | 0 | 32313 | 3 |
| D | 0 | 73059 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 280 | 0 |
| B | 0 | 280 | 0 |
| C | 0 | 280 | 0 |
| D | 0 | 280 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 13661 | 49 | 0.358685% |
| B | 13661 | 519 | 3.799136% |
| C | 13661 | 165 | 1.207818% |
| D | 13661 | 3451 | 25.261694% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19310 | 13664 | 25 | 25 | 0.13% | 0.18% |  |
| B | 19310 | 13664 | 346 | 346 | 1.79% | 2.53% |  |
| C | 19310 | 13664 | 129 | 129 | 0.67% | 0.94% |  |
| D | 19310 | 13664 | 3529 | 3529 | 18.28% | 25.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 203327 | 586.56 | 1746 | 1714 | 343.7 |
| A | 13 | 6 | 47504 | 133.22 | 1746 | 1714 | 343.7 |
| A | 13 | 254 | 22712 | 61.09 | 1746 | 1714 | 343.7 |
| B | 5 | 172 | 1896216 | 5946.12 | 1705 | 1661 | 318.6 |
| B | 0 | 219 | 105541 | 326.03 | 1705 | 1661 | 318.6 |
| B | 4 | 251 | 89947 | 277.09 | 1705 | 1661 | 318.6 |
| C | 15 | 214 | 437098 | 1127.3 | 1693 | 1714 | 386.2 |
| C | 0 | 10 | 315717 | 813.02 | 1693 | 1714 | 386.2 |
| C | 3 | 233 | 255653 | 657.5 | 1693 | 1714 | 386.2 |
| D | 12 | 235 | 8461328 | 22092.96 | 1581 | 1539 | 382.9 |
| D | 8 | 195 | 3423464 | 8936.45 | 1581 | 1539 | 382.9 |
| D | 2 | 250 | 1124879 | 2933.63 | 1581 | 1539 | 382.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

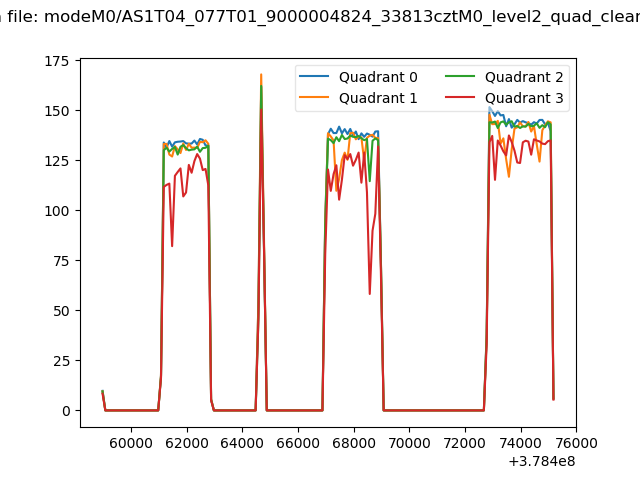

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

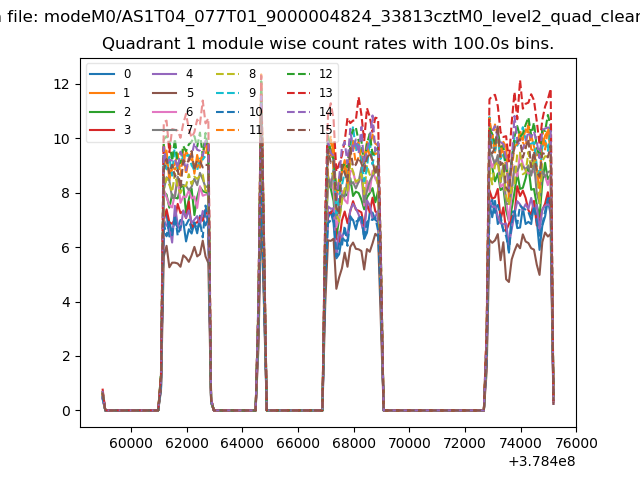

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

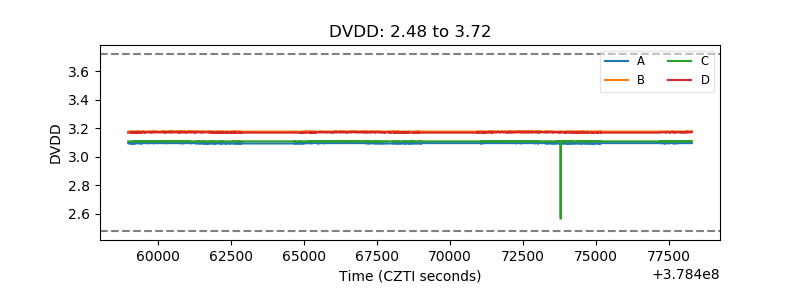

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

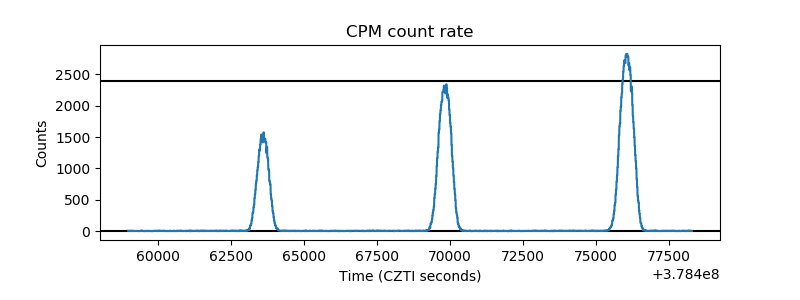

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

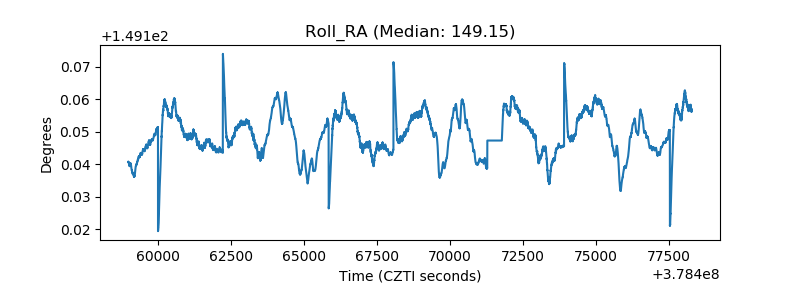

| _Roll_RA |  |

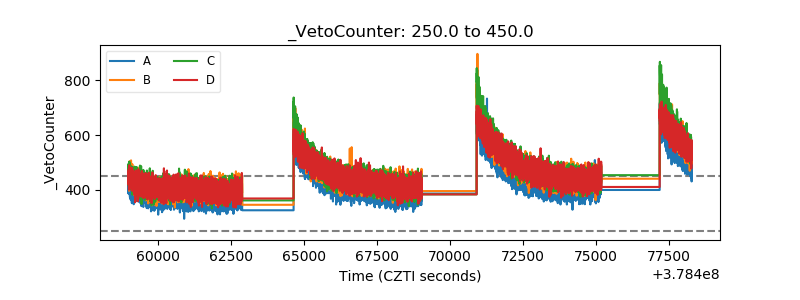

| Veto Counter |  |
