| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_091T01_9000004822_33803cztM0_level2.evt | modeM0/AS1T04_091T01_9000004822_33803cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,746,880 | 86,008,320 |
| Size | 552.9 MB | 82.0 MB |
| Events in quadrant A | 4,379,682 | 549,553 |
| Events in quadrant B | 3,317,992 | 572,407 |
| Events in quadrant C | 3,192,024 | 576,713 |
| Events in quadrant D | 6,299,729 | 524,547 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16655 | 3 |
| B | 0 | 13399 | 2 |
| C | 0 | 12674 | 2 |
| D | 0 | 22606 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5441 | 649 | 11.927954% |
| B | 5441 | 161 | 2.959015% |
| C | 5441 | 104 | 1.911413% |
| D | 5441 | 689 | 12.663113% |

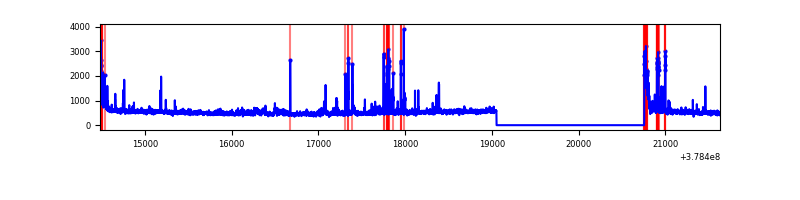

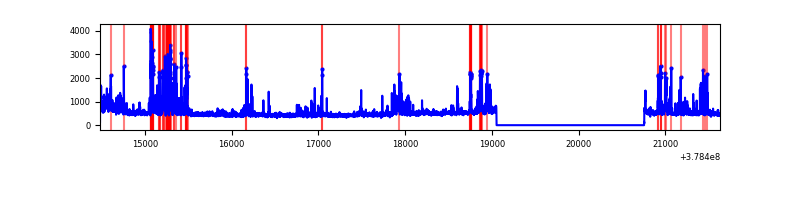

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7143 | 5442 | 467 | 467 | 6.54% | 8.58% |  |
| B | 7143 | 5442 | 99 | 99 | 1.39% | 1.82% |  |
| C | 7143 | 5442 | 84 | 84 | 1.18% | 1.54% |  |
| D | 7143 | 5442 | 658 | 658 | 9.21% | 12.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 237 | 2017554 | 16532.06 | 604 | 592 | 122.0 |
| A | 13 | 6 | 16057 | 126.76 | 604 | 592 | 122.0 |
| A | 13 | 254 | 9963 | 76.81 | 604 | 592 | 122.0 |
| B | 5 | 172 | 567287 | 4695.88 | 627 | 610 | 120.7 |
| B | 4 | 81 | 55036 | 451.01 | 627 | 610 | 120.7 |
| B | 0 | 190 | 54049 | 442.83 | 627 | 610 | 120.7 |
| C | 15 | 214 | 236610 | 1653.63 | 619 | 625 | 142.7 |
| C | 9 | 187 | 190130 | 1327.93 | 619 | 625 | 142.7 |
| C | 0 | 10 | 160580 | 1120.86 | 619 | 625 | 142.7 |
| D | 12 | 235 | 2060801 | 13763.05 | 591 | 577 | 149.7 |
| D | 8 | 195 | 1137448 | 7594.71 | 591 | 577 | 149.7 |
| D | 2 | 250 | 472076 | 3149.78 | 591 | 577 | 149.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

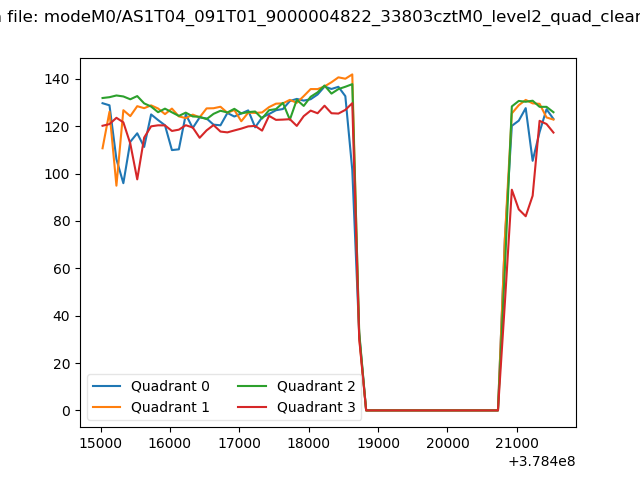

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

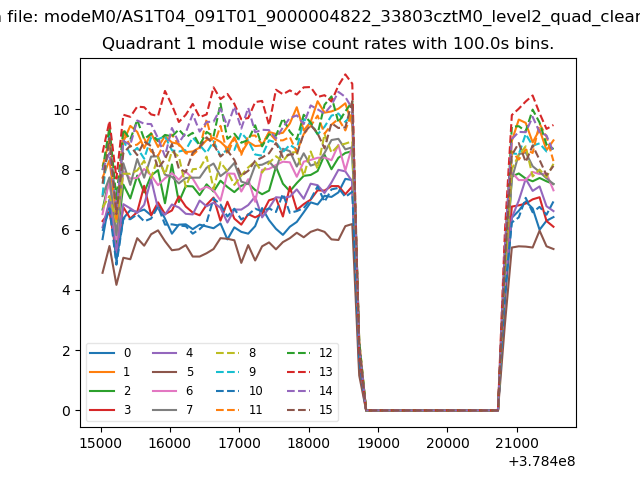

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

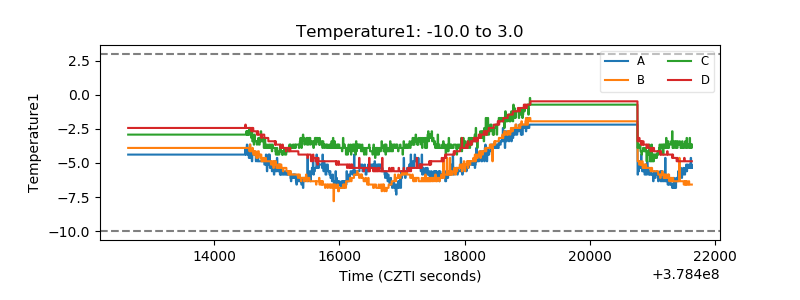

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

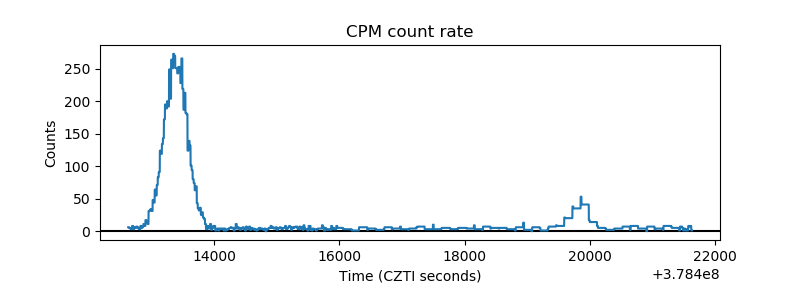

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

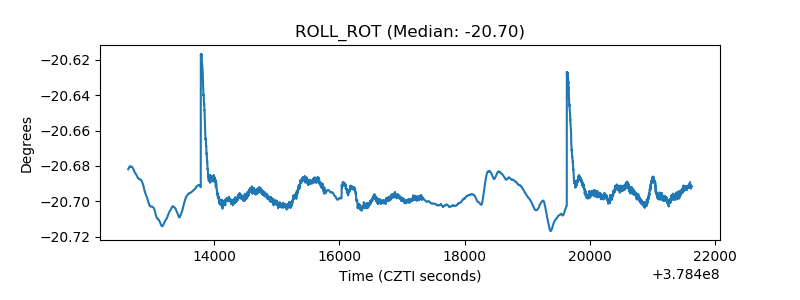

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

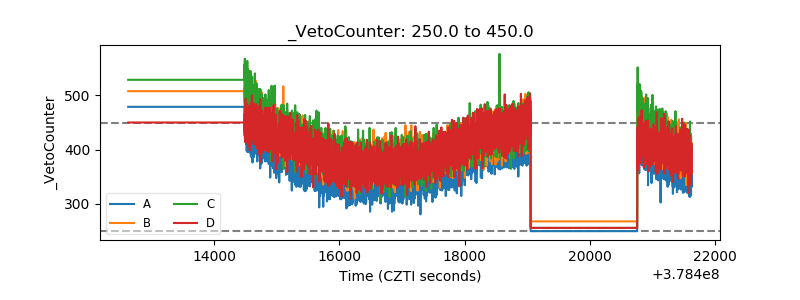

| Veto Counter |  |
