| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T03_9000004826_33816cztM0_level2.evt | modeM0/AS1A11_106T03_9000004826_33816cztM0_level2_quad_clean.evt |
| Size (bytes) | 468,604,800 | 84,329,280 |
| Size | 446.9 MB | 80.4 MB |
| Events in quadrant A | 2,403,051 | 560,689 |
| Events in quadrant B | 3,292,564 | 553,216 |
| Events in quadrant C | 3,480,912 | 560,484 |
| Events in quadrant D | 4,678,234 | 530,599 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10197 | 2 |
| B | 0 | 12993 | 1 |
| C | 0 | 13484 | 1 |
| D | 0 | 17403 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4977 | 14 | 0.281294% |
| B | 4977 | 235 | 4.721720% |
| C | 4977 | 165 | 3.315250% |
| D | 4977 | 276 | 5.545509% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

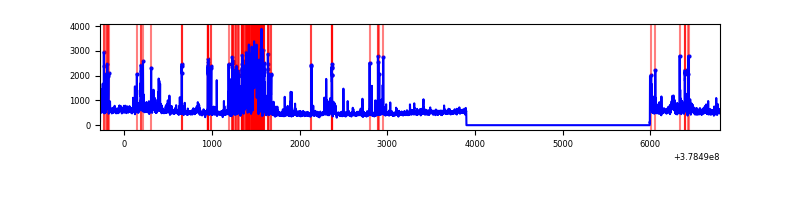

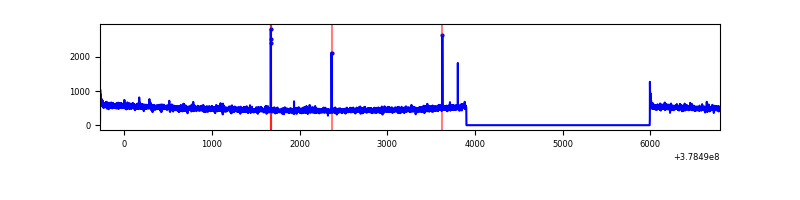

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7069 | 4978 | 5 | 5 | 0.07% | 0.10% |  |
| B | 7069 | 4978 | 185 | 185 | 2.62% | 3.72% |  |
| C | 7069 | 4978 | 178 | 178 | 2.52% | 3.58% |  |
| D | 7069 | 4978 | 181 | 181 | 2.56% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 28721 | 231.16 | 607 | 596 | 121.7 |
| A | 13 | 6 | 18275 | 145.3 | 607 | 596 | 121.7 |
| A | 10 | 83 | 10936 | 84.99 | 607 | 596 | 121.7 |
| B | 5 | 172 | 674000 | 6074.24 | 597 | 583 | 110.9 |
| B | 0 | 213 | 55173 | 492.4 | 597 | 583 | 110.9 |
| B | 4 | 251 | 47842 | 426.28 | 597 | 583 | 110.9 |
| C | 9 | 54 | 466991 | 3436.7 | 593 | 599 | 135.7 |
| C | 0 | 10 | 328044 | 2412.84 | 593 | 599 | 135.7 |
| C | 15 | 214 | 215051 | 1580.23 | 593 | 599 | 135.7 |
| D | 8 | 195 | 1009847 | 6434.45 | 584 | 573 | 156.9 |
| D | 12 | 235 | 501829 | 3195.67 | 584 | 573 | 156.9 |
| D | 2 | 250 | 294857 | 1876.16 | 584 | 573 | 156.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

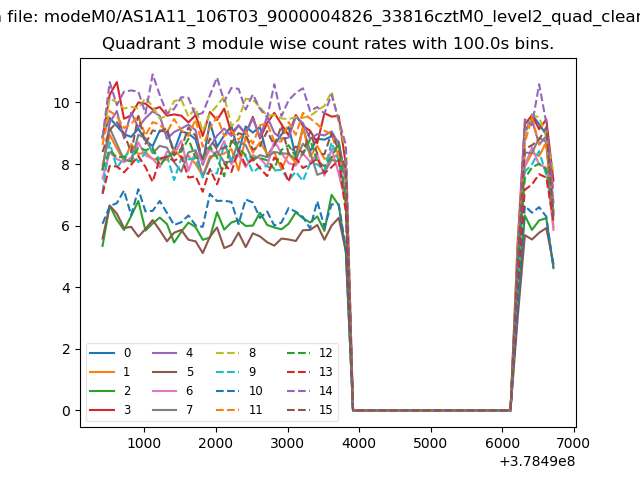

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

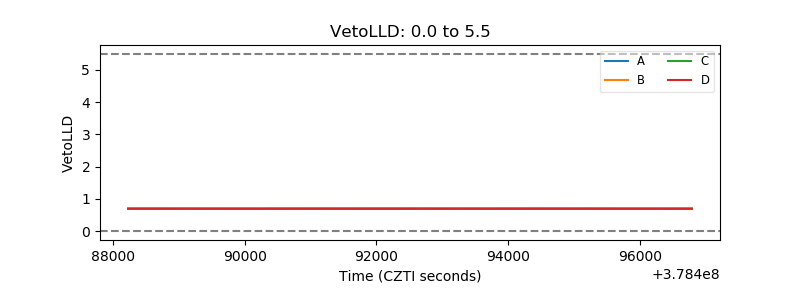

| Veto LLD |  |
| Alpha Counter |  |

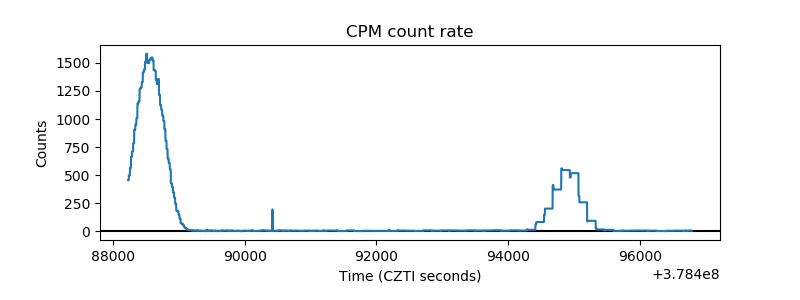

| _CPM_Rate |  |

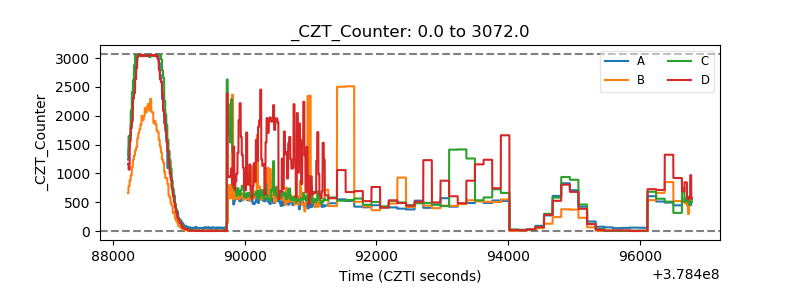

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

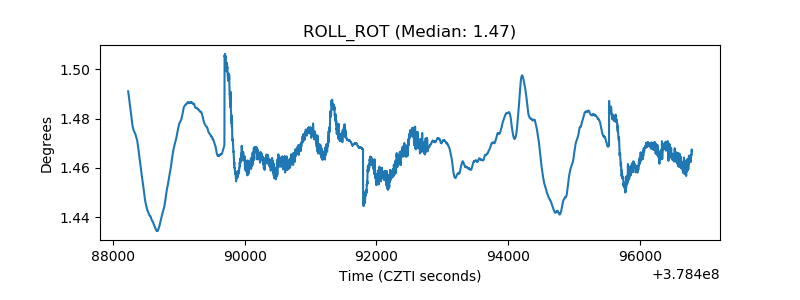

| _ROLL_ROT |  |

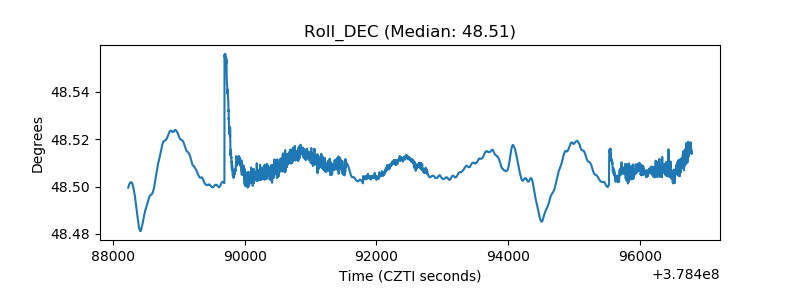

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
