| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T03_9000004826_33841cztM0_level2.evt | modeM0/AS1A11_106T03_9000004826_33841cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,024,640 | 66,003,840 |
| Size | 551.2 MB | 62.9 MB |
| Events in quadrant A | 5,084,108 | 417,666 |
| Events in quadrant B | 3,166,795 | 419,433 |
| Events in quadrant C | 3,038,473 | 415,614 |
| Events in quadrant D | 5,860,467 | 376,399 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18804 | 3 |
| B | 0 | 12633 | 2 |
| C | 0 | 11979 | 2 |
| D | 0 | 21152 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5269 | 46 | 0.873031% |
| B | 5269 | 118 | 2.239514% |
| C | 5269 | 53 | 1.005883% |
| D | 5269 | 632 | 11.994686% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7152 | 5270 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7152 | 5270 | 85 | 85 | 1.19% | 1.61% |  |
| C | 7152 | 5270 | 41 | 41 | 0.57% | 0.78% |  |
| D | 7152 | 5270 | 575 | 575 | 8.04% | 10.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2484618 | 18744.13 | 667 | 655 | 132.5 |
| A | 13 | 6 | 15632 | 113.02 | 667 | 655 | 132.5 |
| A | 10 | 83 | 10544 | 74.62 | 667 | 655 | 132.5 |
| B | 5 | 172 | 477550 | 3869.92 | 653 | 638 | 123.2 |
| B | 4 | 251 | 46769 | 374.33 | 653 | 638 | 123.2 |
| B | 0 | 190 | 21720 | 171.07 | 653 | 638 | 123.2 |
| C | 15 | 214 | 230441 | 1560.42 | 640 | 647 | 147.3 |
| C | 0 | 10 | 135484 | 915.61 | 640 | 647 | 147.3 |
| C | 14 | 254 | 80872 | 544.77 | 640 | 647 | 147.3 |
| D | 8 | 195 | 974103 | 5944.73 | 624 | 608 | 163.8 |
| D | 12 | 235 | 942808 | 5753.62 | 624 | 608 | 163.8 |
| D | 2 | 250 | 704533 | 4298.58 | 624 | 608 | 163.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

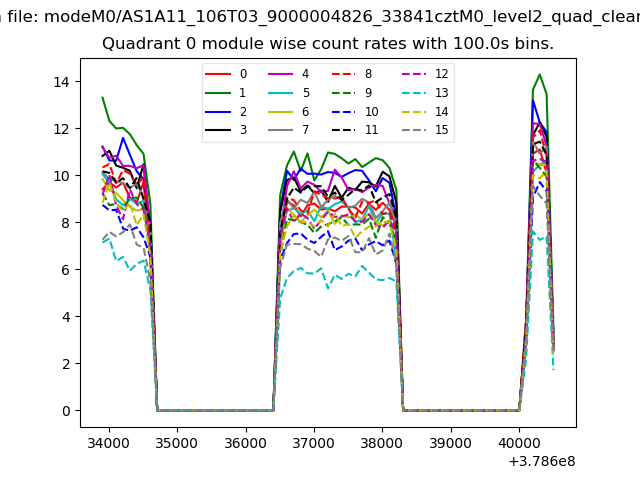

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

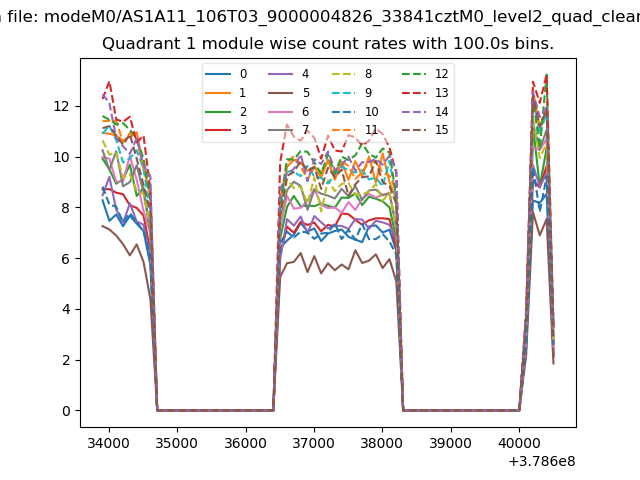

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

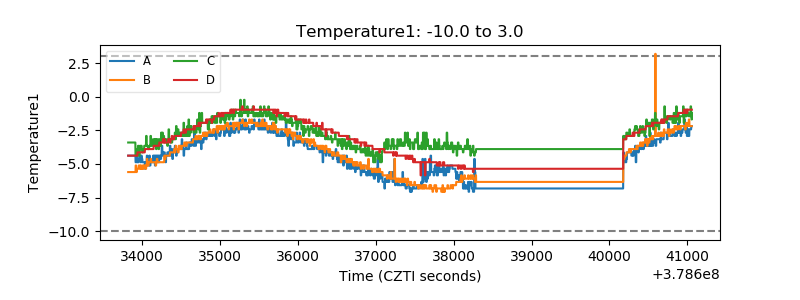

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

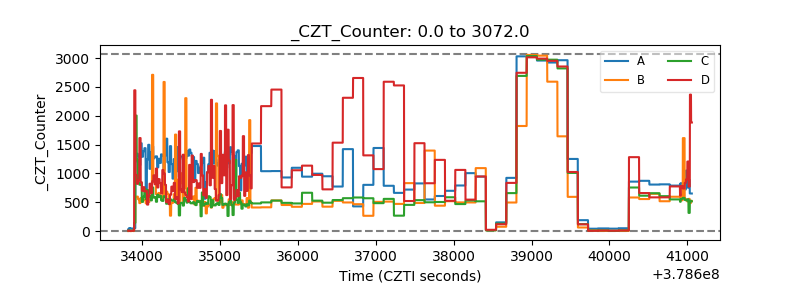

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

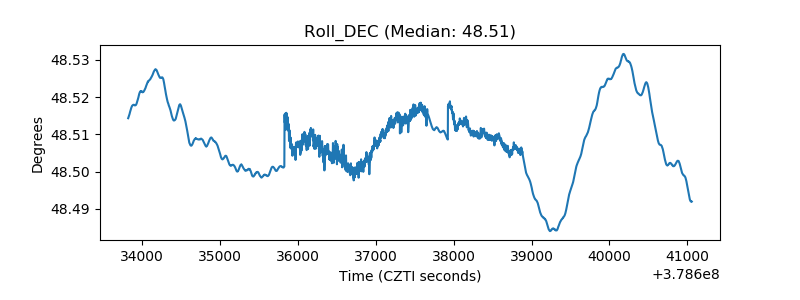

| _Roll_DEC |  |
| _Roll_RA |  |

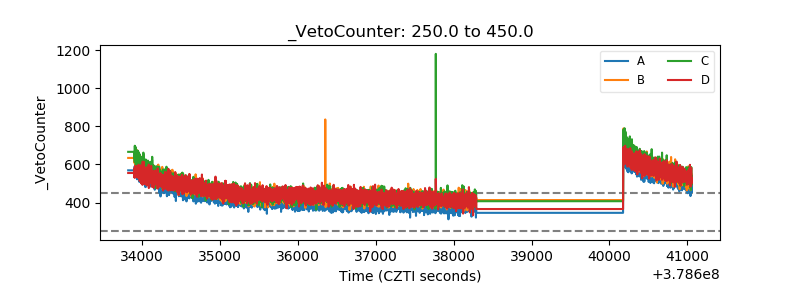

| Veto Counter |  |
