| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T07_9000004828_33844cztM0_level2.evt | modeM0/AS1A11_065T07_9000004828_33844cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,560,000 | 65,056,320 |
| Size | 479.3 MB | 62.0 MB |
| Events in quadrant A | 2,605,939 | 417,080 |
| Events in quadrant B | 3,035,636 | 409,985 |
| Events in quadrant C | 3,315,580 | 411,297 |
| Events in quadrant D | 5,929,291 | 385,350 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10733 | 3 |
| B | 0 | 12072 | 2 |
| C | 0 | 13130 | 2 |
| D | 0 | 21132 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4928 | 12 | 0.243506% |
| B | 4928 | 120 | 2.435065% |
| C | 4928 | 118 | 2.394481% |
| D | 4928 | 441 | 8.948864% |

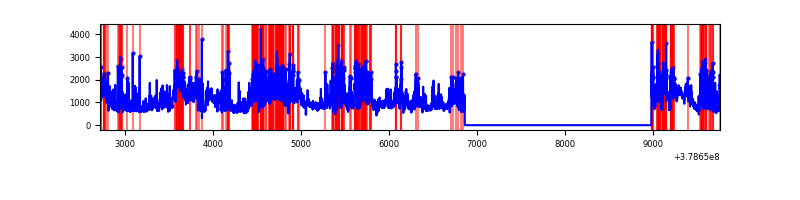

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7051 | 4929 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7051 | 4929 | 88 | 88 | 1.25% | 1.79% |  |
| C | 7051 | 4929 | 105 | 105 | 1.49% | 2.13% |  |
| D | 7051 | 4929 | 415 | 415 | 5.89% | 8.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 81978 | 636.42 | 646 | 637 | 127.8 |
| A | 13 | 6 | 11412 | 84.3 | 646 | 637 | 127.8 |
| A | 10 | 83 | 11359 | 83.89 | 646 | 637 | 127.8 |
| B | 5 | 172 | 458482 | 3838.44 | 637 | 623 | 119.3 |
| B | 0 | 199 | 17842 | 144.35 | 637 | 623 | 119.3 |
| B | 5 | 255 | 16404 | 132.3 | 637 | 623 | 119.3 |
| C | 14 | 254 | 287458 | 2008.5 | 628 | 637 | 142.8 |
| C | 15 | 214 | 213426 | 1490.08 | 628 | 637 | 142.8 |
| C | 0 | 10 | 157614 | 1099.25 | 628 | 637 | 142.8 |
| D | 8 | 195 | 1227260 | 7576.39 | 615 | 603 | 161.9 |
| D | 12 | 235 | 1203445 | 7429.3 | 615 | 603 | 161.9 |
| D | 12 | 233 | 287061 | 1769.29 | 615 | 603 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

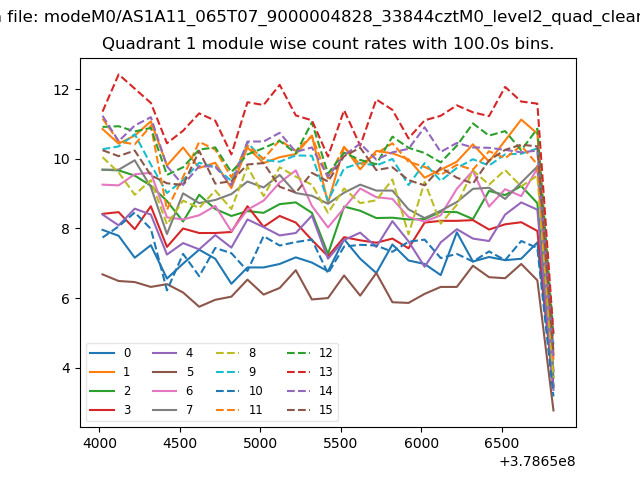

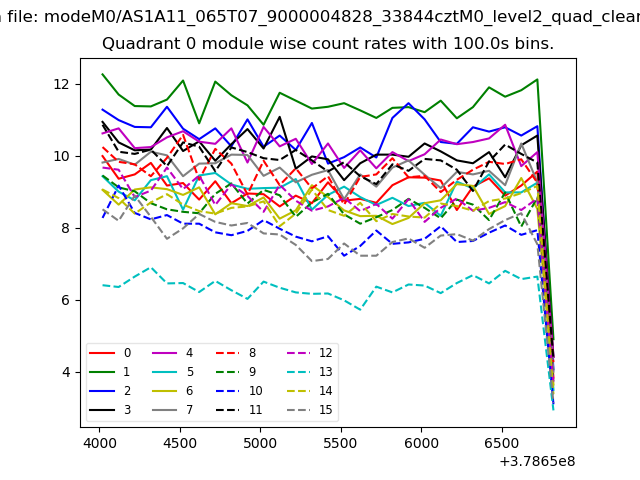

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

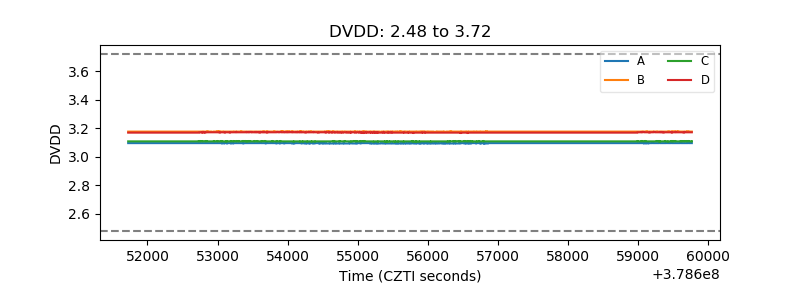

| D_VDD |  |

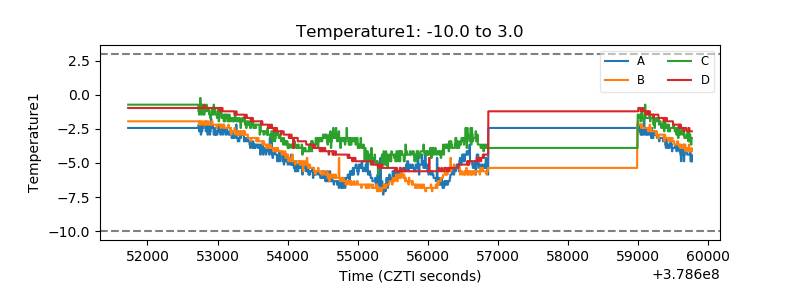

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

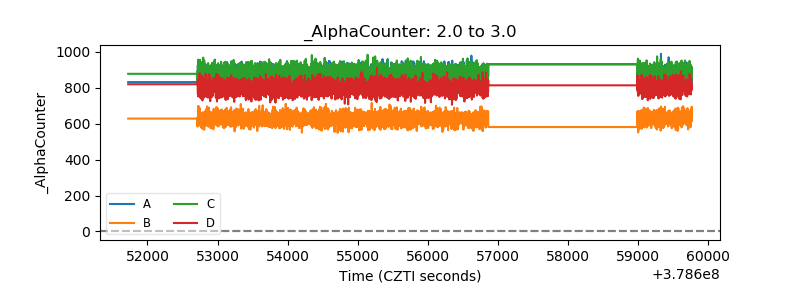

| Alpha Counter |  |

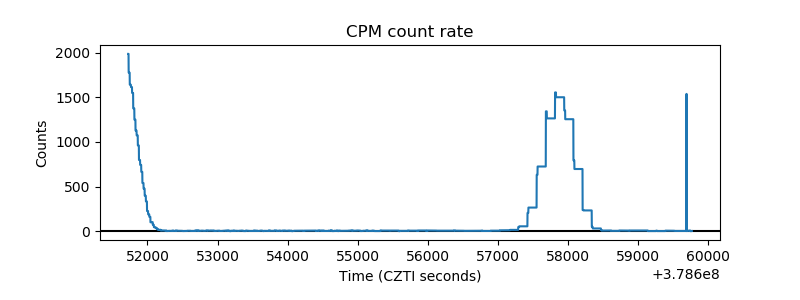

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

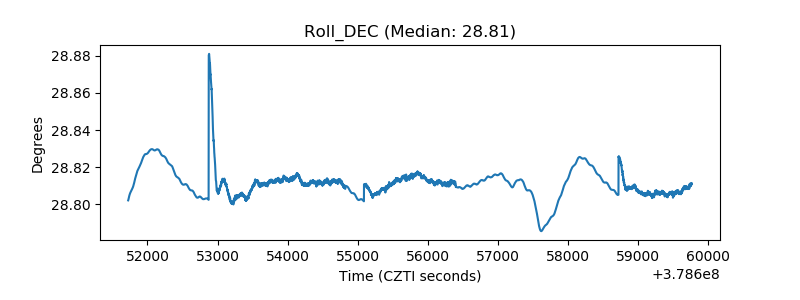

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
