| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_065T11_9000004830_33855cztM0_level2.evt | modeM0/AS1A11_065T11_9000004830_33855cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,463,258,240 | 276,361,920 |
| Size | 2.3 GB | 263.6 MB |
| Events in quadrant A | 12,929,548 | 1,687,662 |
| Events in quadrant B | 18,769,333 | 1,623,453 |
| Events in quadrant C | 14,147,980 | 1,681,934 |
| Events in quadrant D | 26,991,358 | 1,574,330 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 541 | 7 |
| B | 0 | 544 | 12 |
| C | 0 | 542 | 8 |
| D | 0 | 545 | 11 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 55063 | 880 |
| B | 0 | 74200 | 1377 |
| C | 0 | 58224 | 869 |
| D | 0 | 99977 | 1566 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 84 | 0 |
| B | 0 | 85 | 1 |
| C | 0 | 84 | 0 |
| D | 0 | 85 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 26222 | 53 | 0.202120% |
| B | 26204 | 2080 | 7.937719% |
| C | 26220 | 144 | 0.549199% |
| D | 26168 | 2820 | 10.776521% |

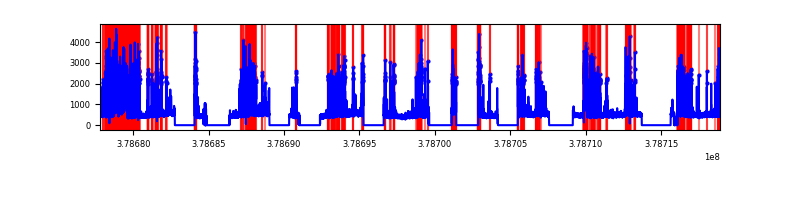

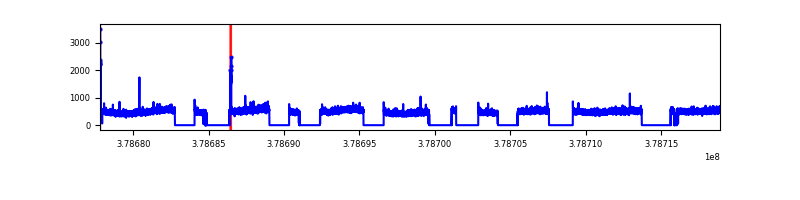

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 41109 | 26311 | 10 | 10 | 0.02% | 0.04% |  |
| B | 41110 | 26289 | 1503 | 1503 | 3.66% | 5.72% |  |
| C | 41110 | 26315 | 105 | 105 | 0.26% | 0.40% |  |
| D | 41110 | 26256 | 2262 | 2262 | 5.50% | 8.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 741632 | 1192.31 | 3122 | 3063 | 619.4 |
| A | 13 | 6 | 76358 | 118.32 | 3122 | 3063 | 619.4 |
| A | 13 | 254 | 45080 | 67.83 | 3122 | 3063 | 619.4 |
| B | 5 | 172 | 5268552 | 9338.44 | 2985 | 2901 | 563.9 |
| B | 15 | 222 | 1044315 | 1846.91 | 2985 | 2901 | 563.9 |
| B | 15 | 85 | 202687 | 354.31 | 2985 | 2901 | 563.9 |
| C | 15 | 214 | 1125847 | 1640.02 | 3011 | 3030 | 684.6 |
| C | 14 | 254 | 411815 | 597.08 | 3011 | 3030 | 684.6 |
| C | 0 | 10 | 316728 | 458.2 | 3011 | 3030 | 684.6 |
| D | 8 | 195 | 5676538 | 8096.95 | 2891 | 2809 | 700.7 |
| D | 2 | 250 | 4394275 | 6267.04 | 2891 | 2809 | 700.7 |
| D | 12 | 235 | 2454496 | 3498.79 | 2891 | 2809 | 700.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

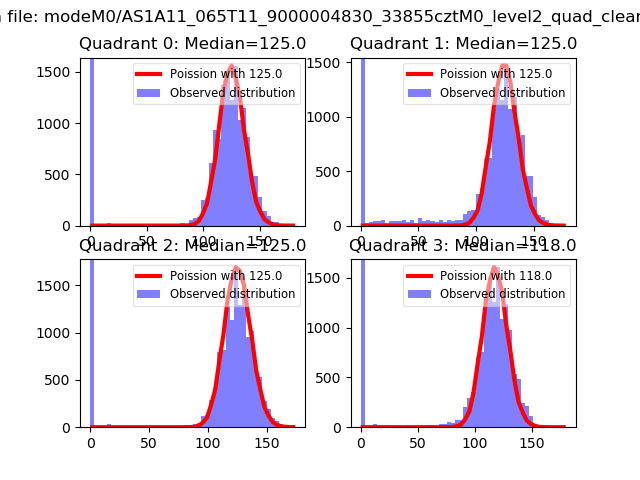

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

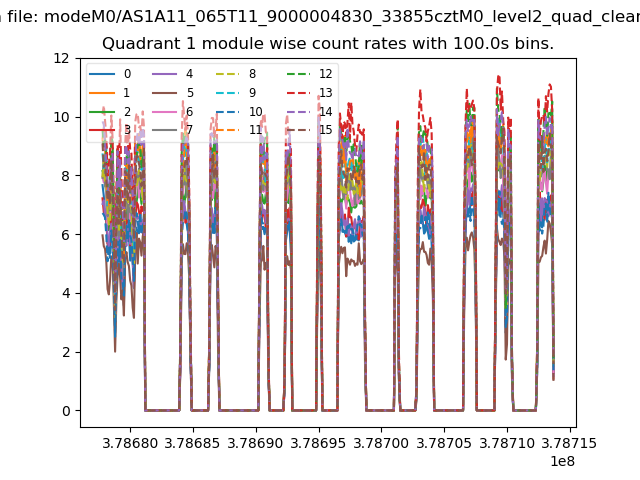

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

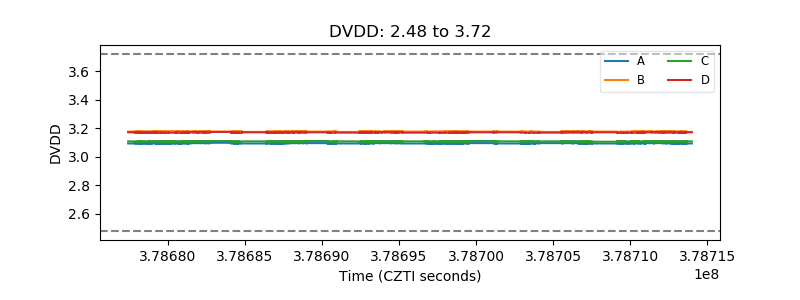

| D_VDD |  |

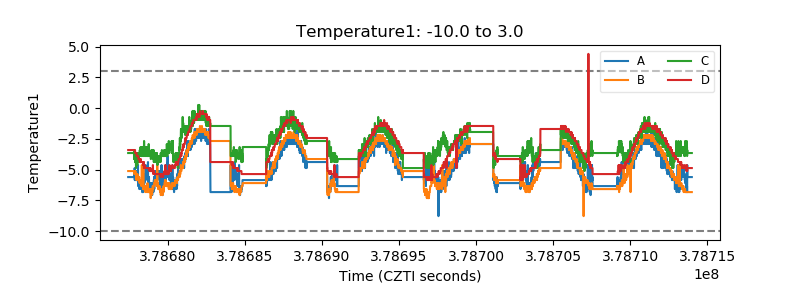

| Temperature 1 |  |

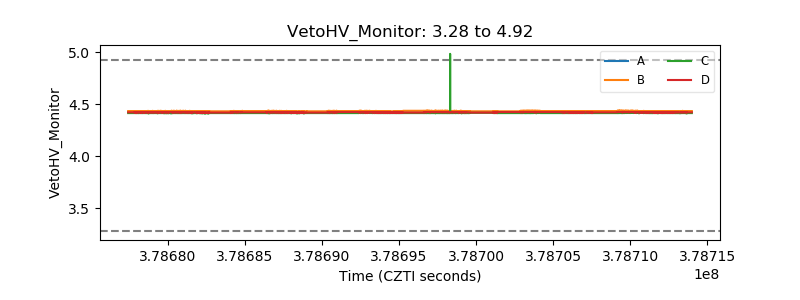

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

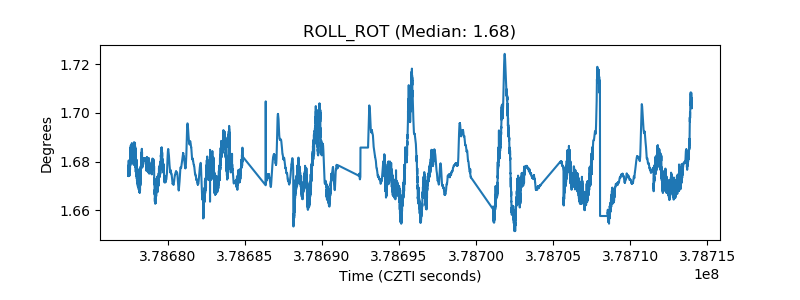

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
