| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T03_9000004834_33869cztM0_level2.evt | modeM0/AS1A11_046T03_9000004834_33869cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,632,640 | 69,428,160 |
| Size | 418.3 MB | 66.2 MB |
| Events in quadrant A | 2,484,139 | 443,101 |
| Events in quadrant B | 3,028,548 | 445,337 |
| Events in quadrant C | 2,829,036 | 439,147 |
| Events in quadrant D | 4,585,506 | 406,600 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10696 | 2 |
| B | 0 | 12283 | 1 |
| C | 0 | 11355 | 1 |
| D | 0 | 17252 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5252 | 7 | 0.133283% |
| B | 5252 | 121 | 2.303884% |
| C | 5252 | 41 | 0.780655% |
| D | 5252 | 203 | 3.865194% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7045 | 5253 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7045 | 5253 | 69 | 69 | 0.98% | 1.31% |  |
| C | 7045 | 5253 | 31 | 31 | 0.44% | 0.59% |  |

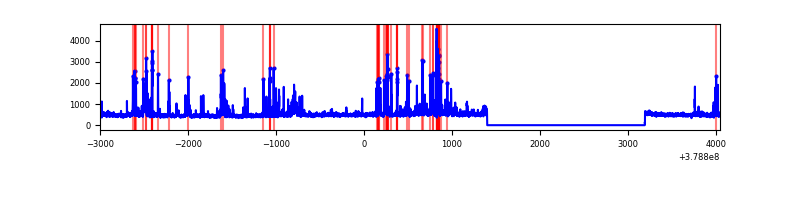

| D | 7045 | 5253 | 206 | 206 | 2.92% | 3.92% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 16 | 39438 | 306.32 | 627 | 615 | 126.7 |
| A | 13 | 6 | 14862 | 112.41 | 627 | 615 | 126.7 |
| A | 13 | 254 | 8303 | 60.66 | 627 | 615 | 126.7 |
| B | 5 | 172 | 463334 | 3967.31 | 614 | 599 | 116.6 |
| B | 15 | 85 | 30166 | 253.5 | 614 | 599 | 116.6 |
| B | 4 | 232 | 24630 | 206.03 | 614 | 599 | 116.6 |
| C | 15 | 214 | 225518 | 1605.44 | 603 | 606 | 140.1 |
| C | 0 | 10 | 96540 | 684.78 | 603 | 606 | 140.1 |
| C | 9 | 187 | 55698 | 393.25 | 603 | 606 | 140.1 |
| D | 8 | 195 | 1001117 | 6801.46 | 599 | 580 | 147.1 |
| D | 12 | 235 | 520843 | 3536.65 | 599 | 580 | 147.1 |
| D | 2 | 250 | 266463 | 1807.42 | 599 | 580 | 147.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

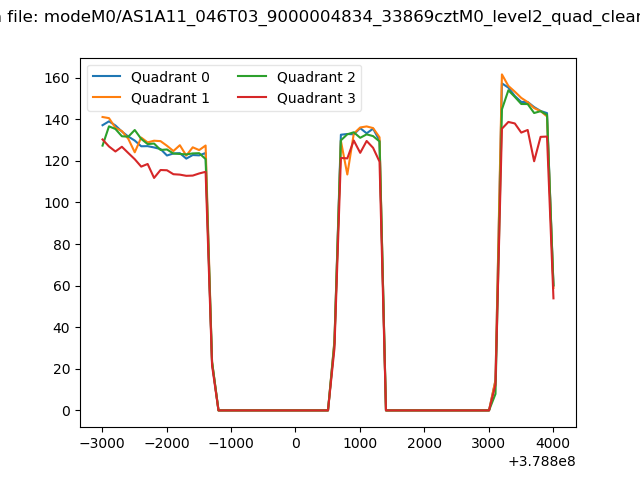

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

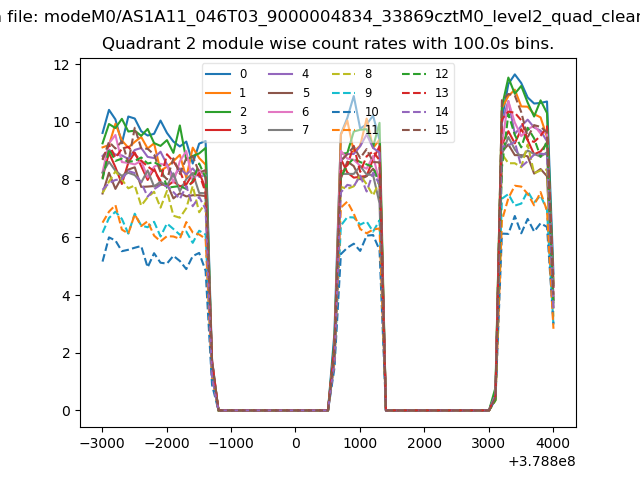

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

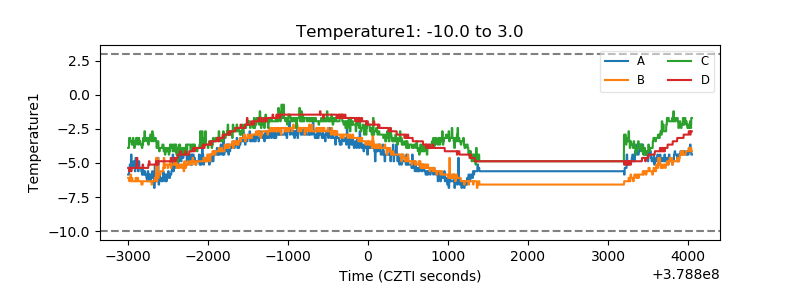

| Temperature 1 |  |

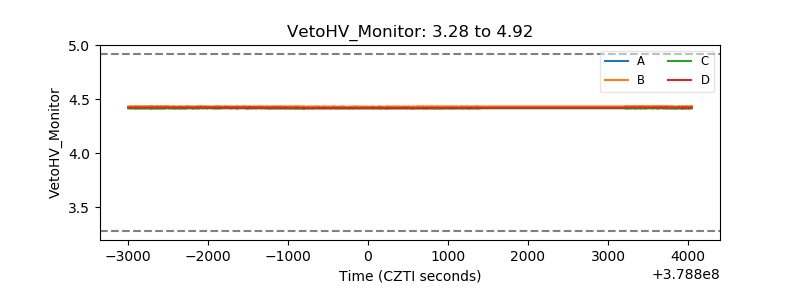

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

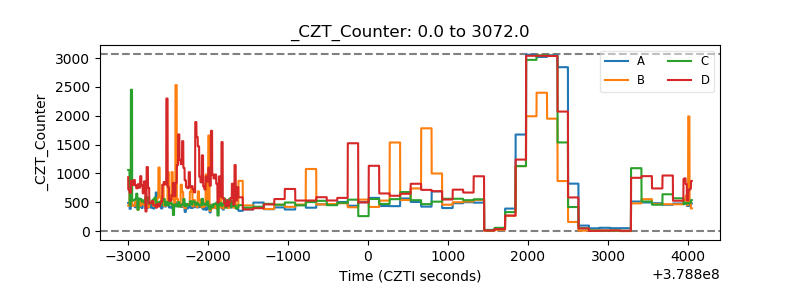

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

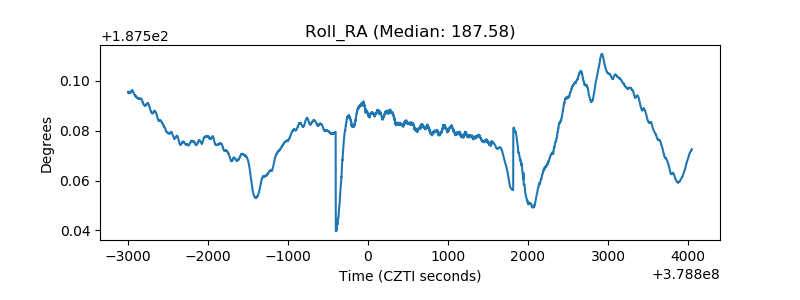

| _Roll_RA |  |

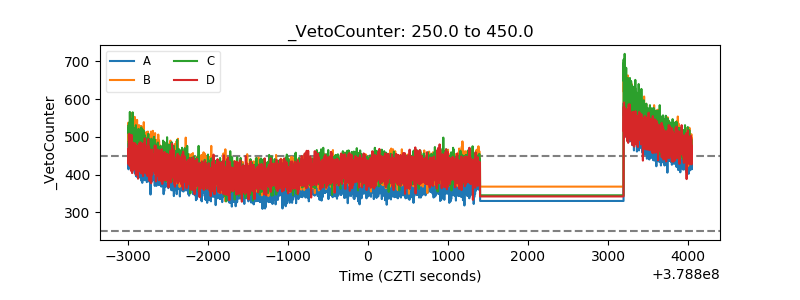

| Veto Counter |  |
