| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_089T01_9000004832_33858cztM0_level2.evt | modeM0/AS1T04_089T01_9000004832_33858cztM0_level2_quad_clean.evt |
| Size (bytes) | 485,040,960 | 52,634,880 |
| Size | 462.6 MB | 50.2 MB |
| Events in quadrant A | 2,753,241 | 321,190 |
| Events in quadrant B | 3,203,695 | 318,324 |
| Events in quadrant C | 3,352,691 | 319,080 |
| Events in quadrant D | 5,032,039 | 274,796 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11283 | 2 |
| B | 0 | 12684 | 1 |
| C | 0 | 13229 | 1 |
| D | 0 | 18665 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5137 | 8 | 0.155733% |
| B | 5137 | 125 | 2.433327% |
| C | 5137 | 109 | 2.121861% |
| D | 5137 | 378 | 7.358380% |

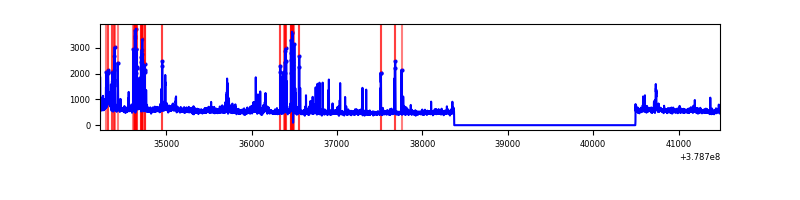

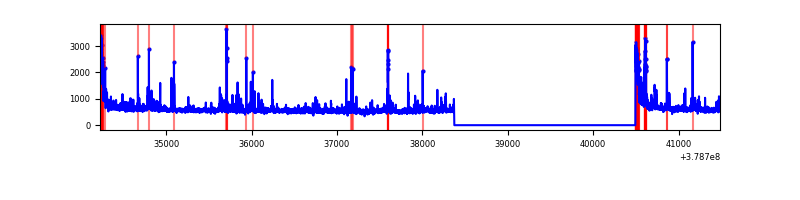

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7260 | 5138 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7260 | 5138 | 72 | 72 | 0.99% | 1.40% |  |
| C | 7260 | 5138 | 87 | 87 | 1.20% | 1.69% |  |
| D | 7260 | 5138 | 263 | 263 | 3.62% | 5.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 92786 | 677.97 | 683 | 674 | 135.9 |
| A | 10 | 83 | 11228 | 77.68 | 683 | 674 | 135.9 |
| A | 13 | 254 | 9347 | 63.84 | 683 | 674 | 135.9 |
| B | 5 | 172 | 386494 | 3063.55 | 669 | 654 | 125.9 |
| B | 5 | 255 | 50441 | 395.31 | 669 | 654 | 125.9 |
| B | 0 | 190 | 39798 | 310.8 | 669 | 654 | 125.9 |
| C | 15 | 214 | 221985 | 1480.75 | 658 | 664 | 149.5 |
| C | 0 | 10 | 200485 | 1336.9 | 658 | 664 | 149.5 |
| C | 14 | 254 | 178234 | 1188.03 | 658 | 664 | 149.5 |
| D | 8 | 195 | 985291 | 6271.56 | 642 | 625 | 157.0 |
| D | 2 | 250 | 557672 | 3547.96 | 642 | 625 | 157.0 |
| D | 10 | 118 | 384523 | 2445.13 | 642 | 625 | 157.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

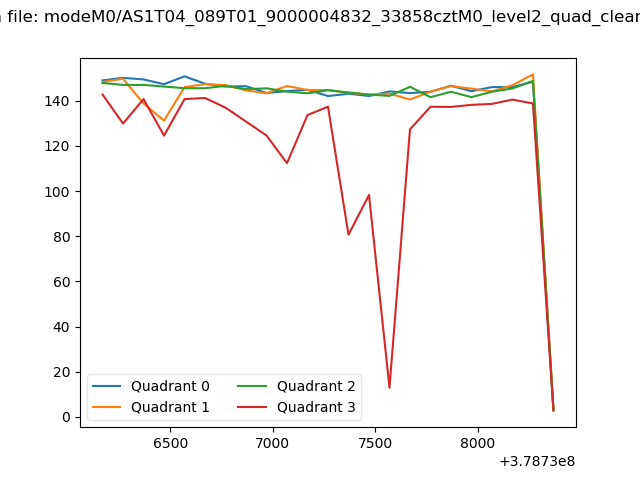

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

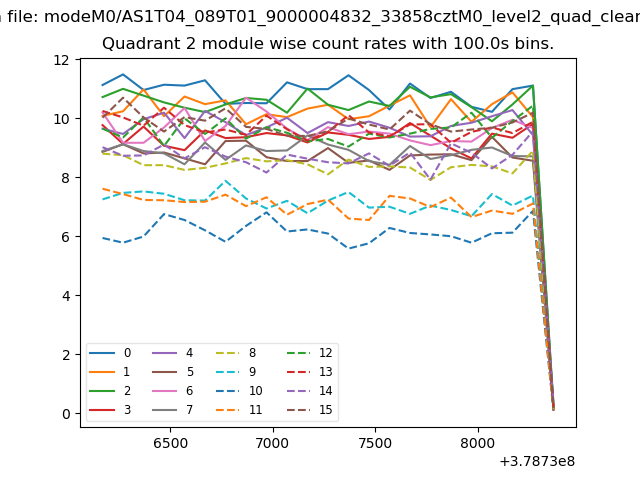

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

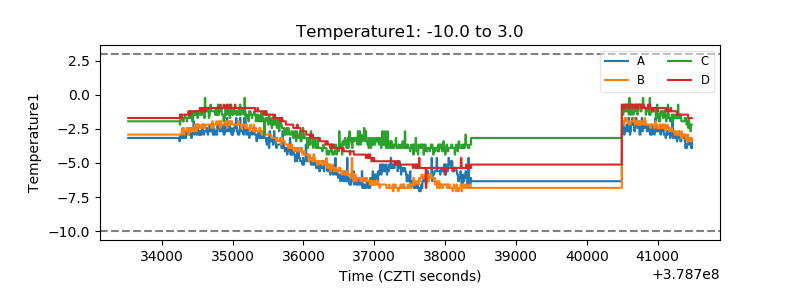

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

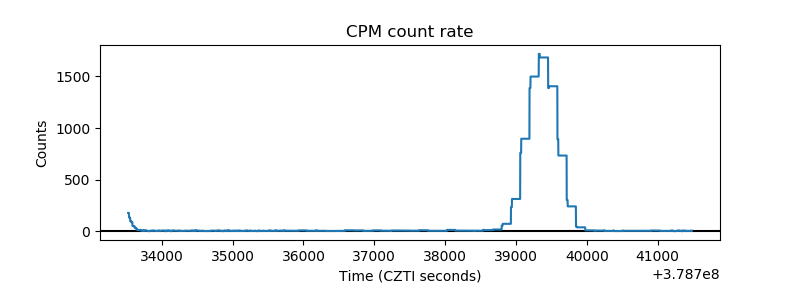

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

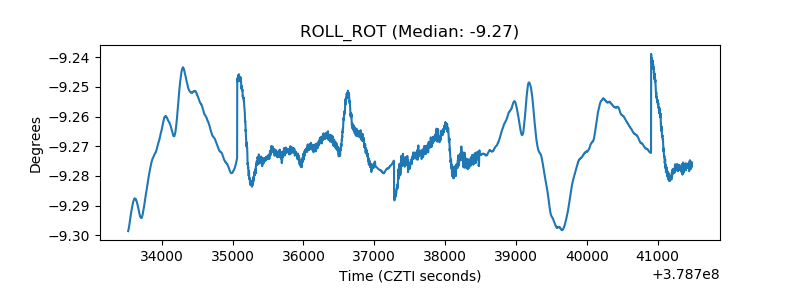

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

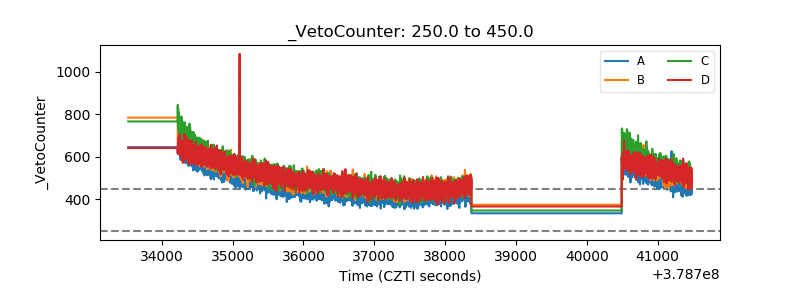

| Veto Counter |  |
