| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_089T01_9000004832_33859cztM0_level2.evt | modeM0/AS1T04_089T01_9000004832_33859cztM0_level2_quad_clean.evt |
| Size (bytes) | 435,614,400 | 59,872,320 |
| Size | 415.4 MB | 57.1 MB |
| Events in quadrant A | 2,644,511 | 372,287 |
| Events in quadrant B | 3,123,504 | 360,879 |
| Events in quadrant C | 3,013,383 | 371,723 |
| Events in quadrant D | 4,067,381 | 352,559 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10757 | 3 |
| B | 0 | 12309 | 2 |
| C | 0 | 11922 | 2 |
| D | 0 | 15637 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5064 | 10 | 0.197472% |
| B | 5064 | 174 | 3.436019% |
| C | 5064 | 88 | 1.737757% |
| D | 5064 | 72 | 1.421801% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

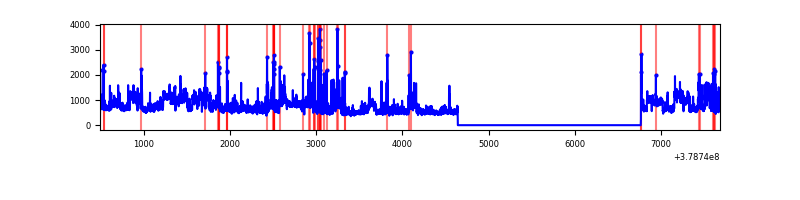

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7187 | 5065 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7187 | 5065 | 120 | 120 | 1.67% | 2.37% |  |
| C | 7187 | 5065 | 65 | 65 | 0.90% | 1.28% |  |
| D | 7187 | 5065 | 51 | 51 | 0.71% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 138272 | 1070.99 | 643 | 632 | 128.5 |
| A | 10 | 83 | 11321 | 83.17 | 643 | 632 | 128.5 |
| A | 13 | 6 | 11069 | 81.21 | 643 | 632 | 128.5 |
| B | 5 | 172 | 488156 | 4117.55 | 629 | 614 | 118.4 |
| B | 5 | 255 | 37967 | 315.46 | 629 | 614 | 118.4 |
| B | 0 | 199 | 25353 | 208.93 | 629 | 614 | 118.4 |
| C | 15 | 214 | 218572 | 1530.13 | 625 | 631 | 142.4 |
| C | 0 | 10 | 173274 | 1212.1 | 625 | 631 | 142.4 |
| C | 3 | 233 | 53192 | 369.02 | 625 | 631 | 142.4 |
| D | 8 | 195 | 862024 | 5376.69 | 623 | 612 | 160.2 |
| D | 12 | 235 | 258384 | 1608.94 | 623 | 612 | 160.2 |
| D | 2 | 250 | 134808 | 837.61 | 623 | 612 | 160.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

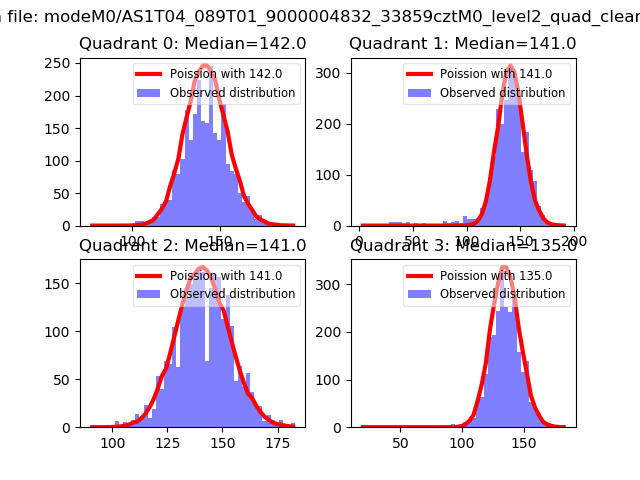

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

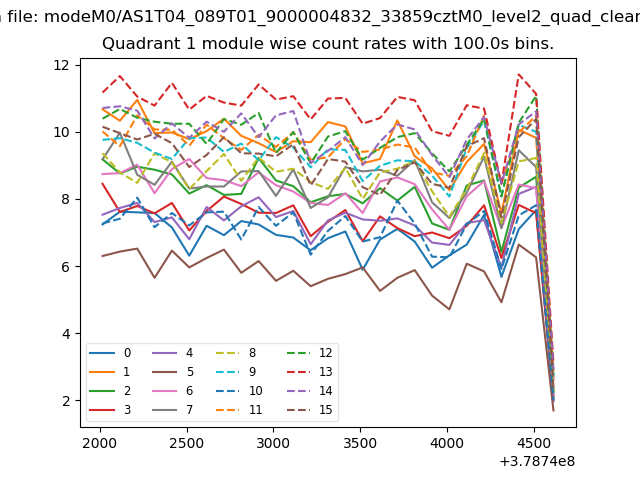

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

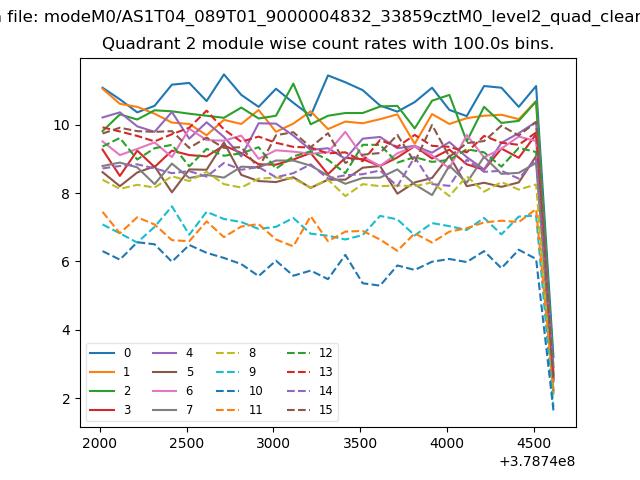

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

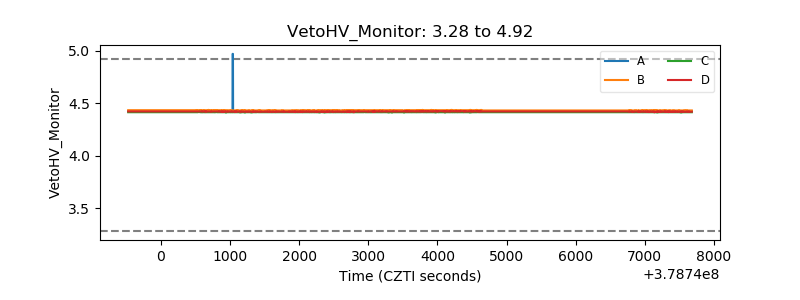

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

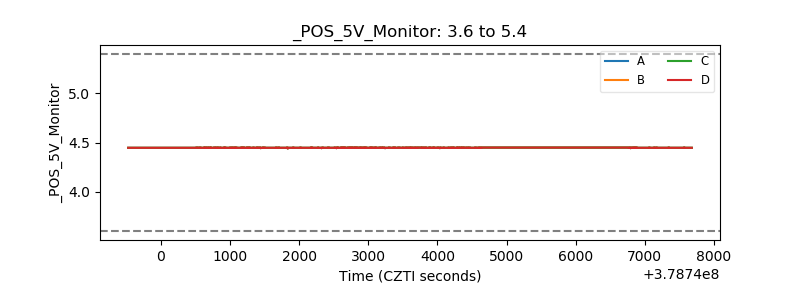

| +5 Volts monitor |  |

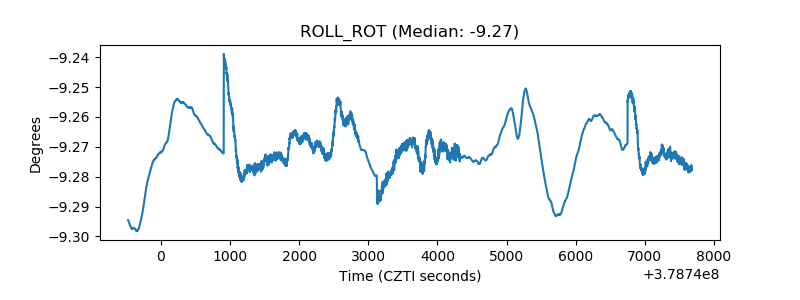

| _ROLL_ROT |  |

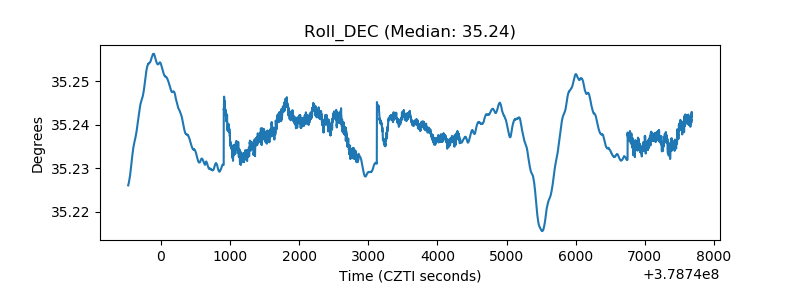

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
