| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_003T10_9000004838_33882cztM0_level2.evt | modeM0/AS1A11_003T10_9000004838_33882cztM0_level2_quad_clean.evt |
| Size (bytes) | 494,775,360 | 67,775,040 |
| Size | 471.9 MB | 64.6 MB |
| Events in quadrant A | 3,865,123 | 409,004 |
| Events in quadrant B | 3,683,207 | 428,842 |
| Events in quadrant C | 3,288,416 | 424,947 |
| Events in quadrant D | 3,783,169 | 413,140 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14991 | 3 |
| B | 0 | 14324 | 2 |
| C | 0 | 13027 | 2 |
| D | 0 | 14714 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5377 | 508 | 9.447647% |
| B | 5377 | 277 | 5.151572% |
| C | 5377 | 125 | 2.324716% |
| D | 5377 | 375 | 6.974149% |

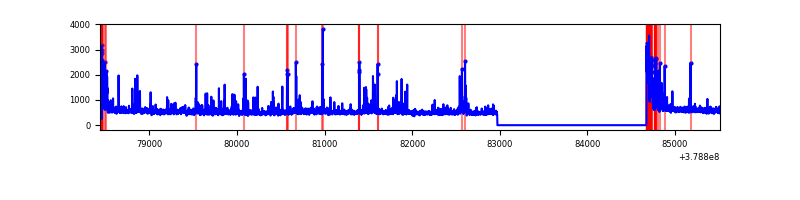

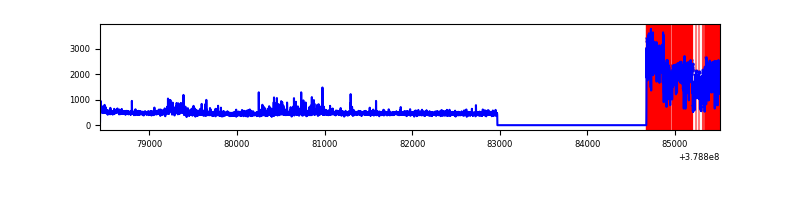

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7080 | 5378 | 473 | 473 | 6.68% | 8.80% |  |
| B | 7080 | 5378 | 178 | 178 | 2.51% | 3.31% |  |
| C | 7080 | 5378 | 87 | 87 | 1.23% | 1.62% |  |
| D | 7080 | 5378 | 241 | 241 | 3.40% | 4.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1455408 | 11824.67 | 617 | 604 | 123.0 |
| A | 13 | 6 | 13307 | 103.25 | 617 | 604 | 123.0 |
| A | 13 | 254 | 9371 | 71.26 | 617 | 604 | 123.0 |
| B | 5 | 172 | 689677 | 5807.6 | 628 | 611 | 118.6 |
| B | 5 | 255 | 244839 | 2058.41 | 628 | 611 | 118.6 |
| B | 4 | 251 | 155506 | 1305.49 | 628 | 611 | 118.6 |
| C | 0 | 10 | 312403 | 2182.58 | 622 | 627 | 142.8 |
| C | 15 | 214 | 234222 | 1635.27 | 622 | 627 | 142.8 |
| C | 0 | 207 | 180405 | 1258.53 | 622 | 627 | 142.8 |
| D | 12 | 235 | 736193 | 5006.81 | 604 | 586 | 146.9 |
| D | 8 | 195 | 254636 | 1729.16 | 604 | 586 | 146.9 |
| D | 13 | 249 | 102174 | 691.44 | 604 | 586 | 146.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

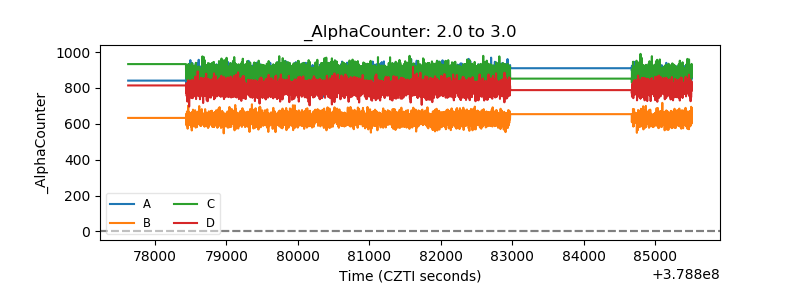

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

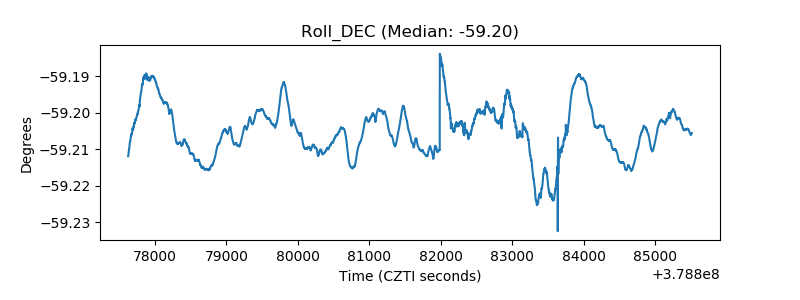

| _Roll_DEC |  |

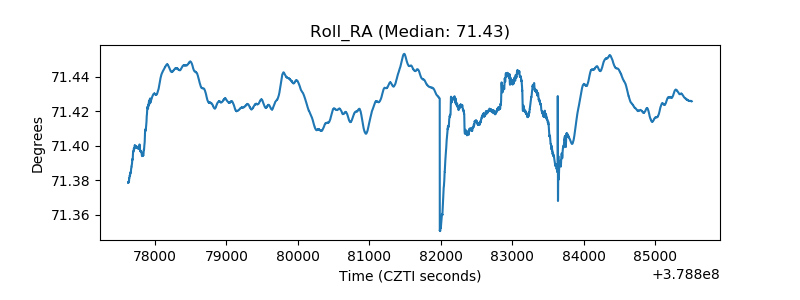

| _Roll_RA |  |

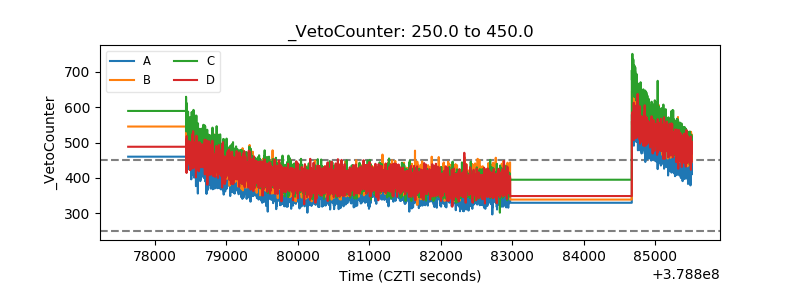

| Veto Counter |  |
