| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_068T01_9000004836_33875cztM0_level2.evt | modeM0/AS1A11_068T01_9000004836_33875cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,087,680 | 75,093,120 |
| Size | 478.8 MB | 71.6 MB |
| Events in quadrant A | 3,778,676 | 479,861 |
| Events in quadrant B | 3,438,363 | 480,842 |
| Events in quadrant C | 3,709,150 | 487,395 |
| Events in quadrant D | 3,929,337 | 463,655 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34 | 0 |
| B | 0 | 34 | 0 |
| C | 0 | 34 | 0 |
| D | 0 | 35 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14501 | 3 |
| B | 0 | 13481 | 2 |
| C | 0 | 14218 | 2 |
| D | 0 | 15179 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5165 | 650 | 12.584705% |
| B | 5165 | 221 | 4.278800% |
| C | 5165 | 209 | 4.046467% |
| D | 5165 | 208 | 4.027106% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7019 | 5166 | 610 | 610 | 8.69% | 11.81% |  |
| B | 7019 | 5166 | 149 | 149 | 2.12% | 2.88% |  |
| C | 7019 | 5166 | 163 | 163 | 2.32% | 3.16% |  |
| D | 7019 | 5166 | 196 | 196 | 2.79% | 3.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1512531 | 12905.99 | 580 | 568 | 117.2 |
| A | 13 | 6 | 13990 | 114.57 | 580 | 568 | 117.2 |
| A | 10 | 83 | 11220 | 90.92 | 580 | 568 | 117.2 |
| B | 5 | 172 | 878895 | 7506.75 | 604 | 589 | 117.0 |
| B | 5 | 200 | 48114 | 406.19 | 604 | 589 | 117.0 |
| B | 0 | 199 | 26861 | 224.54 | 604 | 589 | 117.0 |
| C | 0 | 10 | 550246 | 4010.36 | 592 | 598 | 137.1 |
| C | 3 | 233 | 475940 | 3468.2 | 592 | 598 | 137.1 |
| C | 15 | 214 | 222205 | 1616.89 | 592 | 598 | 137.1 |
| D | 12 | 235 | 734431 | 5020.73 | 591 | 577 | 146.2 |
| D | 8 | 195 | 258774 | 1766.48 | 591 | 577 | 146.2 |
| D | 13 | 249 | 217610 | 1484.85 | 591 | 577 | 146.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

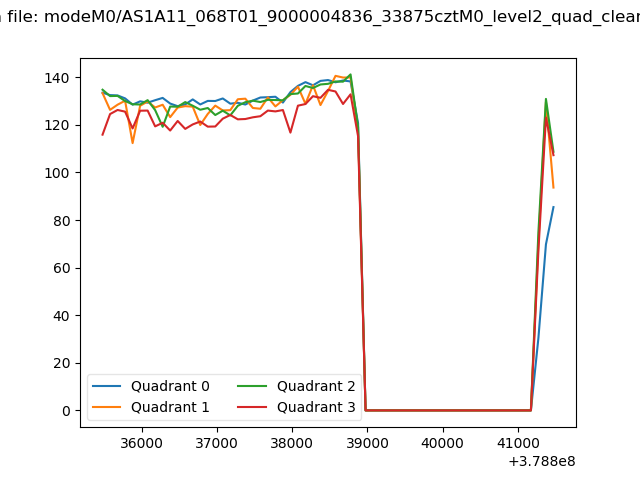

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

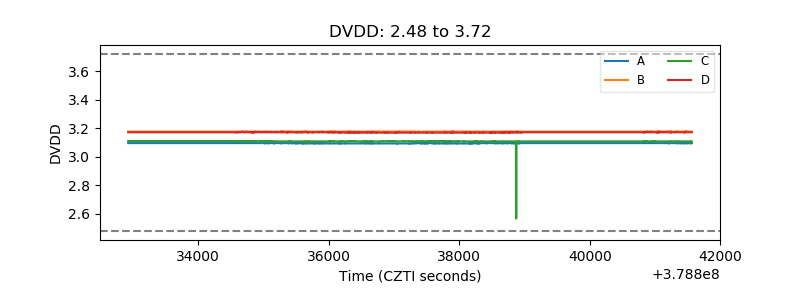

| D_VDD |  |

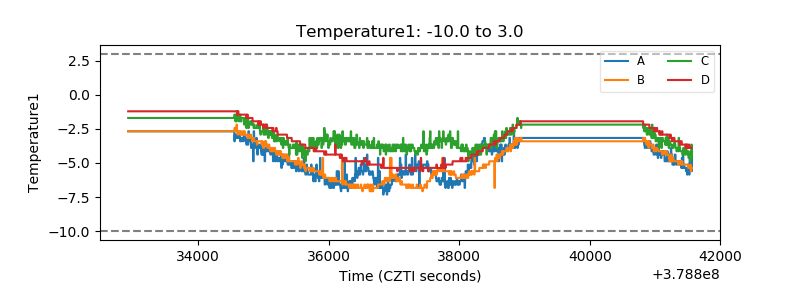

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

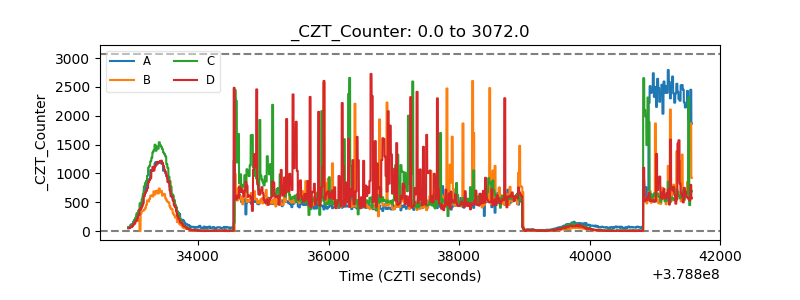

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

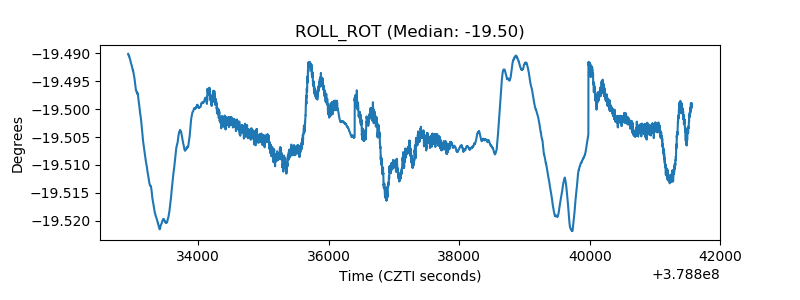

| _ROLL_ROT |  |
| _Roll_DEC |  |

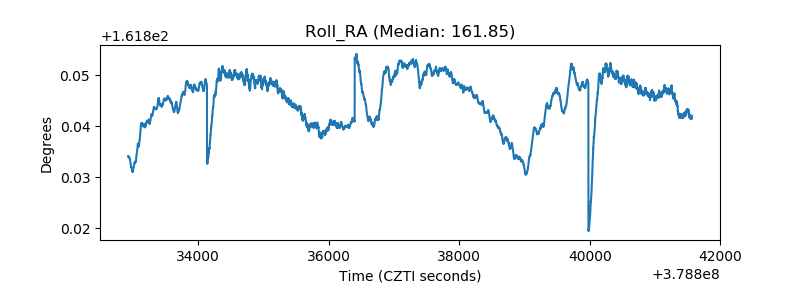

| _Roll_RA |  |

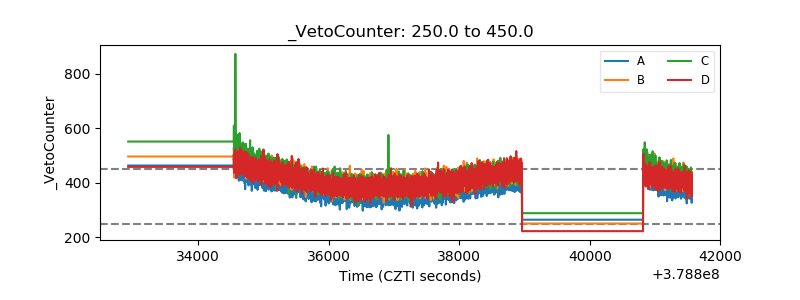

| Veto Counter |  |
