| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_068T01_9000004836_33876cztM0_level2.evt | modeM0/AS1A11_068T01_9000004836_33876cztM0_level2_quad_clean.evt |
| Size (bytes) | 562,317,120 | 83,416,320 |
| Size | 536.3 MB | 79.6 MB |
| Events in quadrant A | 4,396,619 | 536,376 |
| Events in quadrant B | 3,908,246 | 537,387 |
| Events in quadrant C | 3,338,994 | 551,804 |
| Events in quadrant D | 5,005,899 | 507,830 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16775 | 3 |
| B | 0 | 15297 | 2 |
| C | 0 | 13328 | 2 |
| D | 0 | 18779 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5610 | 800 | 14.260250% |
| B | 5610 | 359 | 6.399287% |
| C | 5610 | 115 | 2.049911% |
| D | 5610 | 568 | 10.124777% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7103 | 5611 | 751 | 751 | 10.57% | 13.38% |  |
| B | 7103 | 5611 | 251 | 251 | 3.53% | 4.47% |  |
| C | 7103 | 5611 | 93 | 93 | 1.31% | 1.66% |  |
| D | 7103 | 5611 | 483 | 483 | 6.80% | 8.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1967259 | 15662.96 | 620 | 608 | 125.6 |
| A | 13 | 6 | 22147 | 171.54 | 620 | 608 | 125.6 |
| A | 10 | 83 | 11374 | 85.74 | 620 | 608 | 125.6 |
| B | 5 | 172 | 1148838 | 9172.03 | 641 | 626 | 125.2 |
| B | 4 | 232 | 47185 | 371.92 | 641 | 626 | 125.2 |
| B | 5 | 200 | 45498 | 358.44 | 641 | 626 | 125.2 |
| C | 0 | 10 | 305395 | 2055.62 | 638 | 644 | 148.3 |
| C | 15 | 214 | 241033 | 1621.48 | 638 | 644 | 148.3 |
| C | 3 | 233 | 191462 | 1287.11 | 638 | 644 | 148.3 |
| D | 12 | 235 | 1313949 | 8619.0 | 617 | 601 | 152.4 |
| D | 2 | 250 | 423711 | 2776.71 | 617 | 601 | 152.4 |
| D | 8 | 195 | 375639 | 2461.23 | 617 | 601 | 152.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

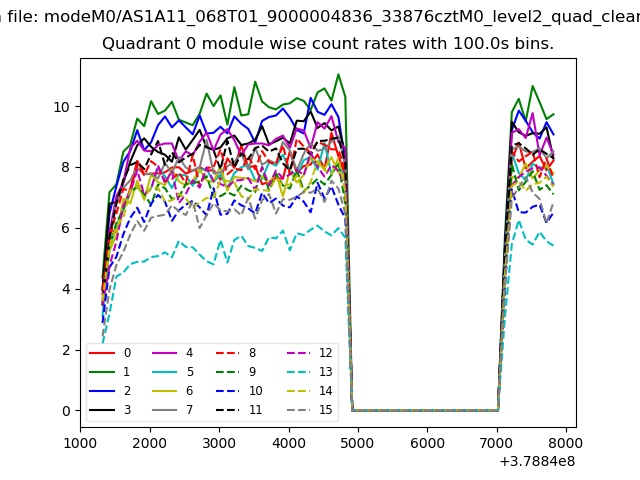

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

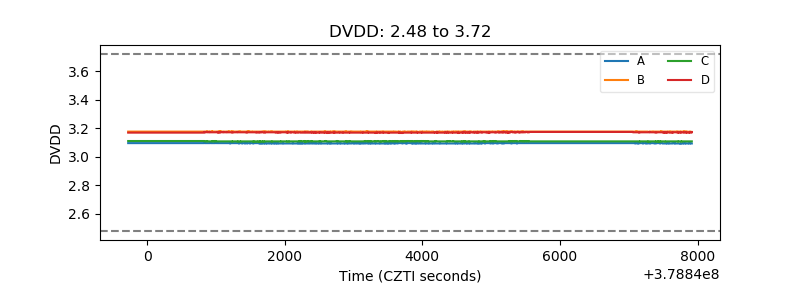

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

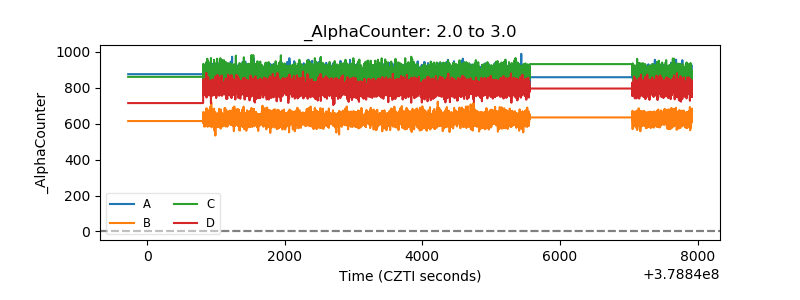

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

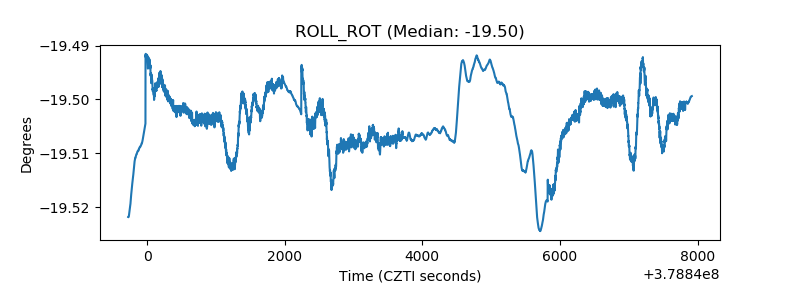

| _ROLL_ROT |  |

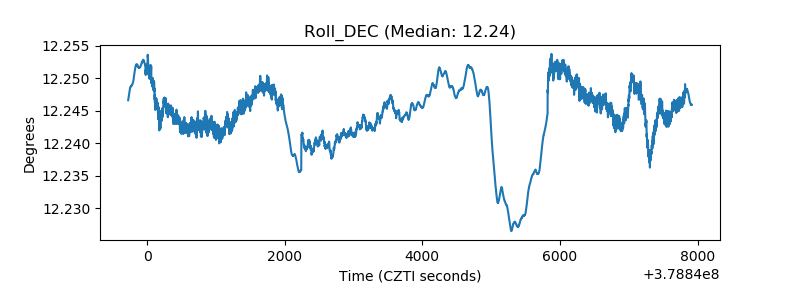

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
