| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_068T01_9000004836_33878cztM0_level2.evt | modeM0/AS1A11_068T01_9000004836_33878cztM0_level2_quad_clean.evt |
| Size (bytes) | 508,406,400 | 73,500,480 |
| Size | 484.9 MB | 70.1 MB |
| Events in quadrant A | 2,417,516 | 488,601 |
| Events in quadrant B | 3,386,372 | 479,438 |
| Events in quadrant C | 3,163,046 | 483,345 |
| Events in quadrant D | 6,074,384 | 406,168 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10685 | 1 |
| B | 0 | 13439 | 1 |
| C | 0 | 12799 | 1 |
| D | 0 | 21730 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5257 | 7 | 0.133156% |
| B | 5257 | 209 | 3.975652% |
| C | 5257 | 90 | 1.712003% |
| D | 5257 | 1031 | 19.611946% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6569 | 5258 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6569 | 5258 | 158 | 158 | 2.41% | 3.00% |  |
| C | 6569 | 5258 | 73 | 73 | 1.11% | 1.39% |  |
| D | 6569 | 5258 | 937 | 937 | 14.26% | 17.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 13570 | 104.03 | 620 | 607 | 124.6 |
| A | 10 | 83 | 11291 | 85.74 | 620 | 607 | 124.6 |
| A | 13 | 254 | 8601 | 64.15 | 620 | 607 | 124.6 |
| B | 5 | 172 | 752450 | 6451.36 | 605 | 589 | 116.5 |
| B | 4 | 232 | 68372 | 581.61 | 605 | 589 | 116.5 |
| B | 4 | 251 | 60191 | 511.42 | 605 | 589 | 116.5 |
| C | 0 | 10 | 281865 | 2036.61 | 597 | 603 | 138.1 |
| C | 15 | 214 | 225948 | 1631.72 | 597 | 603 | 138.1 |
| C | 0 | 207 | 161501 | 1165.06 | 597 | 603 | 138.1 |
| D | 12 | 235 | 3080754 | 22676.34 | 554 | 539 | 135.8 |
| D | 8 | 195 | 286134 | 2102.53 | 554 | 539 | 135.8 |
| D | 13 | 249 | 260784 | 1915.91 | 554 | 539 | 135.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

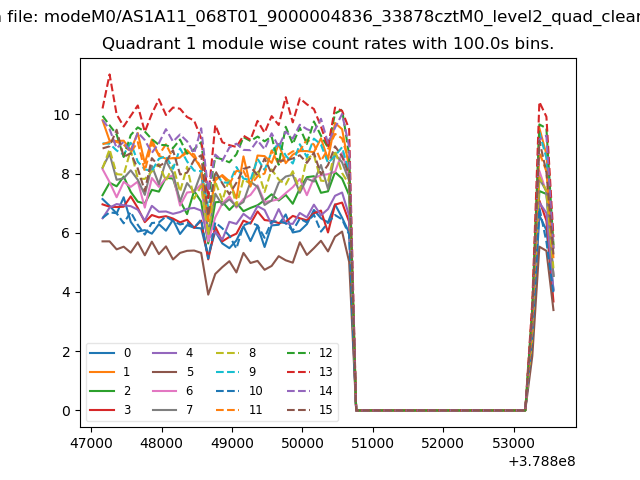

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

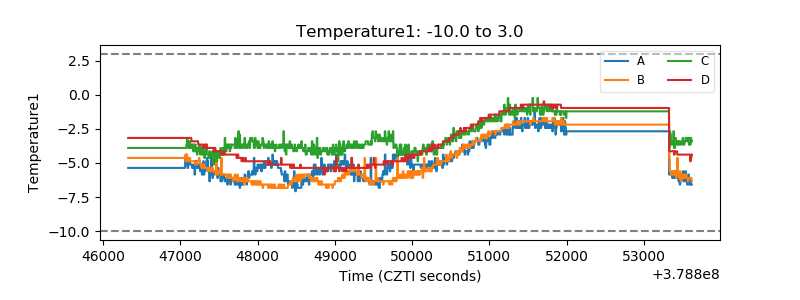

| Temperature 1 |  |

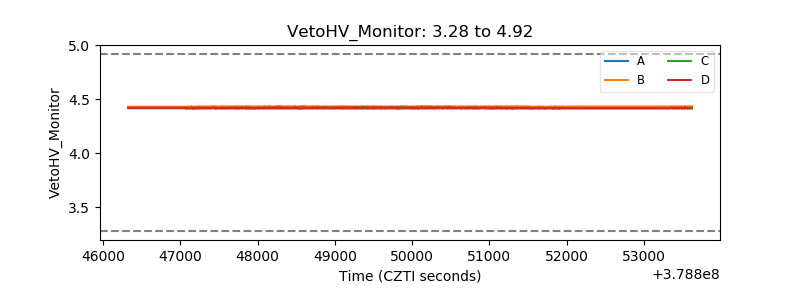

| Veto HV Monitor |  |

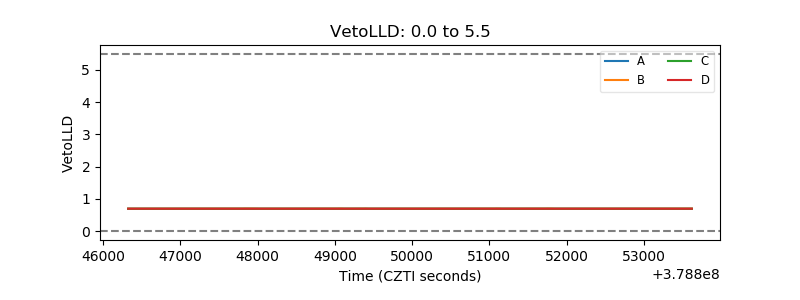

| Veto LLD |  |

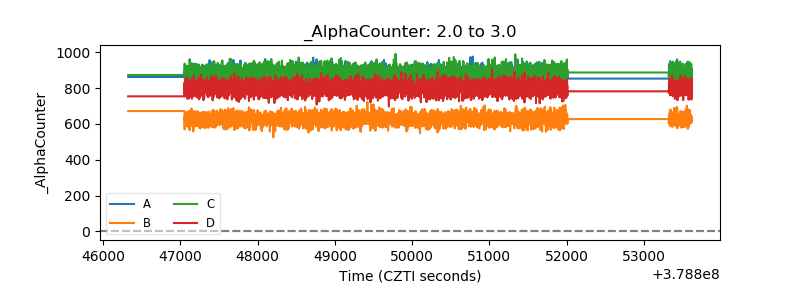

| Alpha Counter |  |

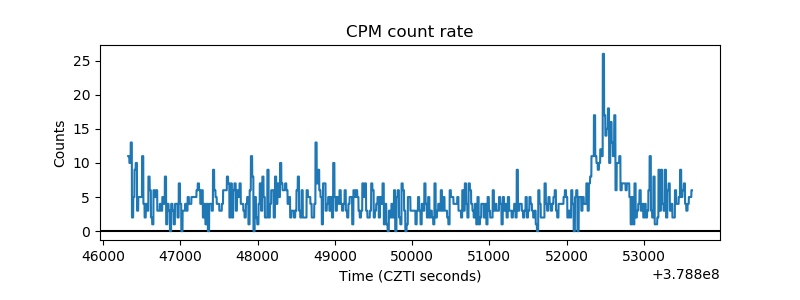

| _CPM_Rate |  |
