| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_090T01_9000004840_33885cztM0_level2.evt | modeM0/AS1T04_090T01_9000004840_33885cztM0_level2_quad_clean.evt |
| Size (bytes) | 481,999,680 | 72,244,800 |
| Size | 459.7 MB | 68.9 MB |
| Events in quadrant A | 2,529,811 | 478,504 |
| Events in quadrant B | 4,097,094 | 463,419 |
| Events in quadrant C | 3,365,570 | 458,694 |
| Events in quadrant D | 4,257,627 | 427,843 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10413 | 3 |
| B | 0 | 15288 | 2 |
| C | 0 | 13099 | 2 |
| D | 0 | 16169 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5124 | 5 | 0.097580% |
| B | 5124 | 459 | 8.957845% |
| C | 5124 | 128 | 2.498048% |
| D | 5124 | 344 | 6.713505% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7066 | 5125 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7066 | 5125 | 361 | 361 | 5.11% | 7.04% |  |
| C | 7066 | 5125 | 100 | 100 | 1.42% | 1.95% |  |
| D | 7066 | 5125 | 286 | 286 | 4.05% | 5.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 17213 | 129.29 | 647 | 638 | 128.2 |
| A | 10 | 83 | 11689 | 86.2 | 647 | 638 | 128.2 |
| A | 13 | 254 | 8477 | 61.15 | 647 | 638 | 128.2 |
| B | 5 | 172 | 1380870 | 12058.35 | 617 | 603 | 114.5 |
| B | 5 | 255 | 172779 | 1504.17 | 617 | 603 | 114.5 |
| B | 4 | 232 | 27264 | 232.92 | 617 | 603 | 114.5 |
| C | 3 | 233 | 375614 | 2697.02 | 617 | 623 | 139.0 |
| C | 0 | 10 | 297060 | 2132.04 | 617 | 623 | 139.0 |
| C | 15 | 214 | 222436 | 1595.33 | 617 | 623 | 139.0 |
| D | 12 | 235 | 630088 | 4226.75 | 612 | 597 | 148.9 |
| D | 2 | 250 | 437719 | 2935.08 | 612 | 597 | 148.9 |
| D | 8 | 195 | 400058 | 2682.2 | 612 | 597 | 148.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

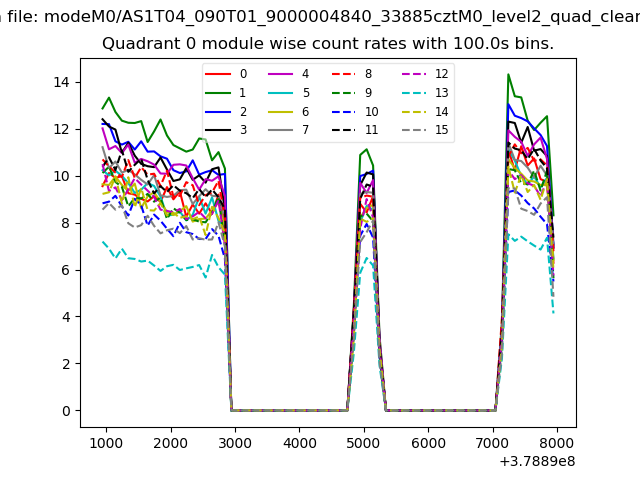

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

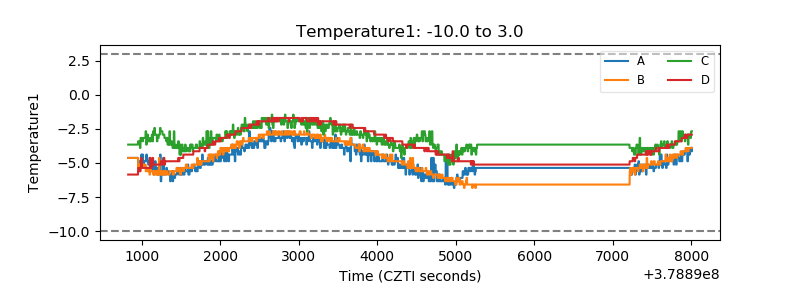

| Temperature 1 |  |

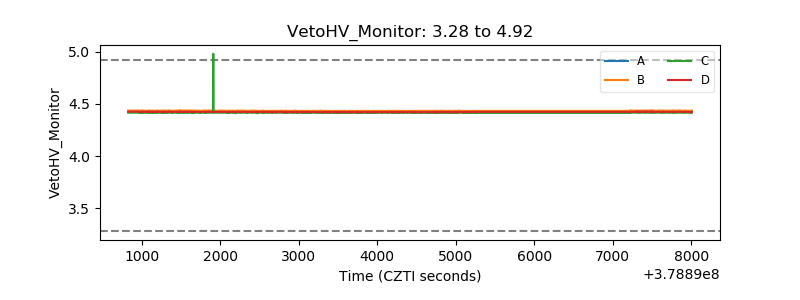

| Veto HV Monitor |  |

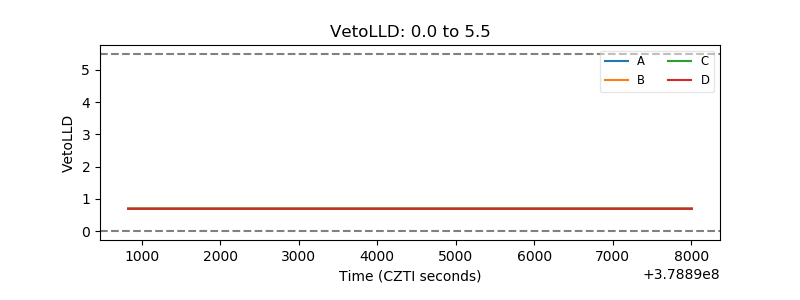

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
