| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_090T01_9000004840_33888cztM0_level2.evt | modeM0/AS1T04_090T01_9000004840_33888cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,692,480 | 55,229,760 |
| Size | 427.9 MB | 52.7 MB |
| Events in quadrant A | 2,363,855 | 348,740 |
| Events in quadrant B | 3,497,366 | 331,852 |
| Events in quadrant C | 2,860,094 | 339,592 |
| Events in quadrant D | 4,538,700 | 311,495 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9817 | 2 |
| B | 0 | 13315 | 1 |
| C | 0 | 11166 | 1 |
| D | 0 | 16779 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4850 | 3 | 0.061856% |
| B | 4850 | 373 | 7.690722% |
| C | 4850 | 75 | 1.546392% |
| D | 4850 | 261 | 5.381443% |

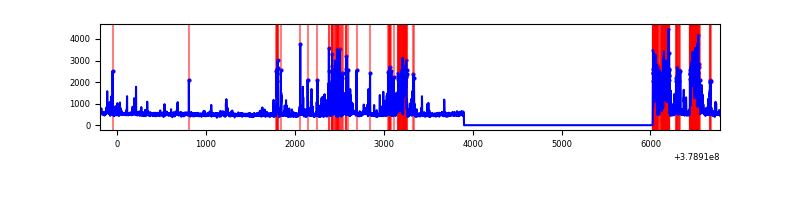

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6973 | 4851 | 1 | 1 | 0.01% | 0.02% |  |
| B | 6973 | 4851 | 263 | 263 | 3.77% | 5.42% |  |
| C | 6973 | 4851 | 47 | 47 | 0.67% | 0.97% |  |
| D | 6973 | 4851 | 228 | 228 | 3.27% | 4.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 14718 | 117.64 | 605 | 594 | 120.1 |
| A | 13 | 254 | 8278 | 64.0 | 605 | 594 | 120.1 |
| A | 10 | 83 | 8114 | 62.63 | 605 | 594 | 120.1 |
| B | 5 | 172 | 887389 | 8152.55 | 575 | 562 | 108.8 |
| B | 5 | 255 | 225677 | 2069.47 | 575 | 562 | 108.8 |
| B | 15 | 85 | 43246 | 392.39 | 575 | 562 | 108.8 |
| C | 0 | 10 | 230862 | 1716.15 | 585 | 588 | 134.2 |
| C | 15 | 214 | 212005 | 1575.62 | 585 | 588 | 134.2 |
| C | 3 | 233 | 71675 | 529.79 | 585 | 588 | 134.2 |
| D | 8 | 195 | 1126706 | 7908.35 | 579 | 562 | 142.4 |
| D | 12 | 235 | 556818 | 3906.31 | 579 | 562 | 142.4 |
| D | 12 | 16 | 164246 | 1149.47 | 579 | 562 | 142.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

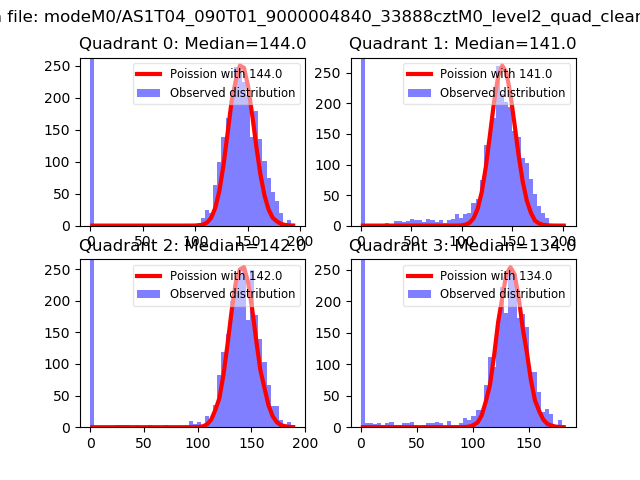

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

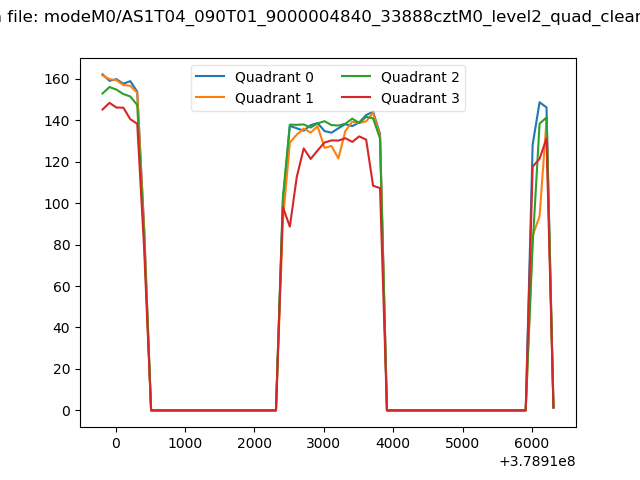

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

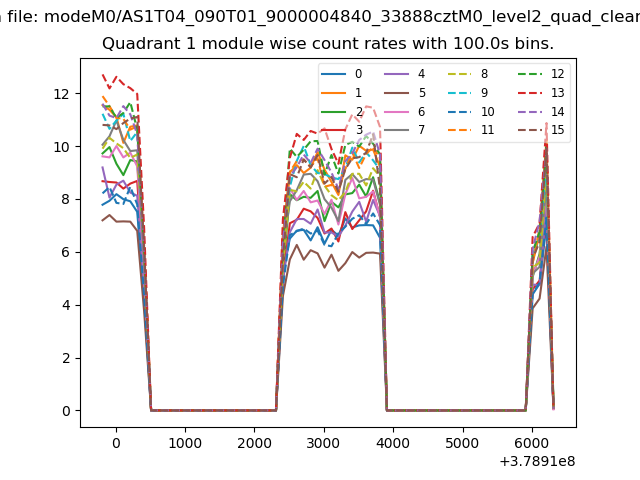

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

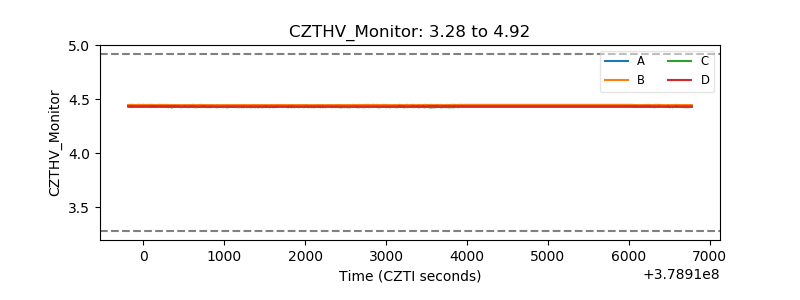

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

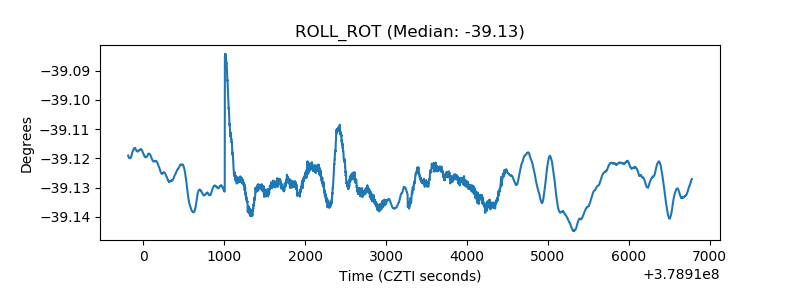

| _ROLL_ROT |  |

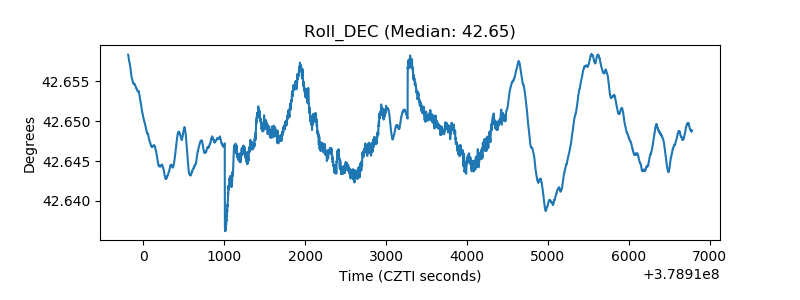

| _Roll_DEC |  |
| _Roll_RA |  |

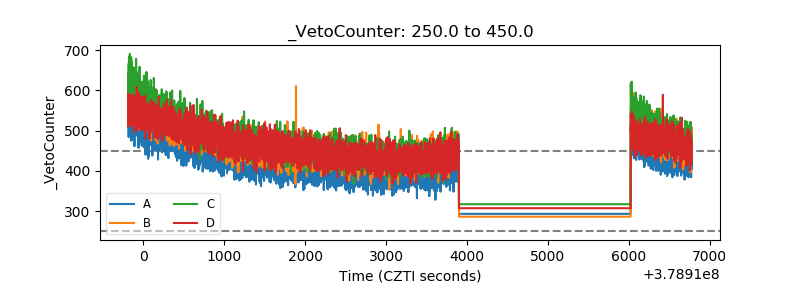

| Veto Counter |  |
