| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_090T01_9000004840_33900cztM0_level2.evt | modeM0/AS1T04_090T01_9000004840_33900cztM0_level2_quad_clean.evt |
| Size (bytes) | 668,332,800 | 69,261,120 |
| Size | 637.4 MB | 66.1 MB |
| Events in quadrant A | 9,134,718 | 384,799 |
| Events in quadrant B | 2,829,458 | 478,596 |
| Events in quadrant C | 3,020,180 | 458,118 |
| Events in quadrant D | 4,914,092 | 420,138 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30485 | 2 |
| B | 0 | 11310 | 1 |
| C | 0 | 11724 | 1 |
| D | 0 | 18262 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5065 | 3023 | 59.684107% |
| B | 5065 | 37 | 0.730503% |
| C | 5065 | 87 | 1.717670% |
| D | 5065 | 446 | 8.805528% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7097 | 5066 | 2409 | 2409 | 33.94% | 47.55% |  |
| B | 7097 | 5066 | 15 | 15 | 0.21% | 0.30% |  |
| C | 7097 | 5066 | 69 | 69 | 0.97% | 1.36% |  |
| D | 7097 | 5065 | 355 | 355 | 5.00% | 7.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 7236944 | 75817.48 | 484 | 476 | 95.4 |
| A | 10 | 83 | 10735 | 107.48 | 484 | 476 | 95.4 |
| A | 7 | 16 | 8558 | 84.67 | 484 | 476 | 95.4 |
| B | 5 | 172 | 171171 | 1446.72 | 633 | 618 | 117.9 |
| B | 3 | 112 | 44550 | 372.65 | 633 | 618 | 117.9 |
| B | 15 | 222 | 39991 | 333.98 | 633 | 618 | 117.9 |
| C | 0 | 10 | 292261 | 2080.94 | 616 | 622 | 140.1 |
| C | 15 | 214 | 224456 | 1597.13 | 616 | 622 | 140.1 |
| C | 3 | 233 | 31610 | 221.11 | 616 | 622 | 140.1 |
| D | 12 | 235 | 1383054 | 9382.46 | 603 | 588 | 147.3 |
| D | 8 | 195 | 499042 | 3382.88 | 603 | 588 | 147.3 |
| D | 1 | 52 | 348949 | 2364.24 | 603 | 588 | 147.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

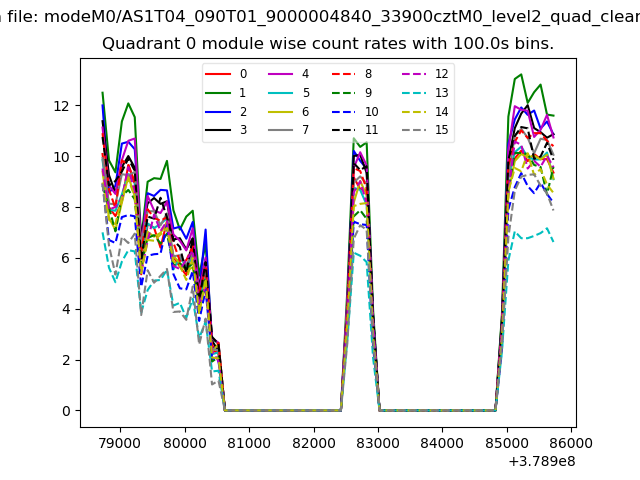

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

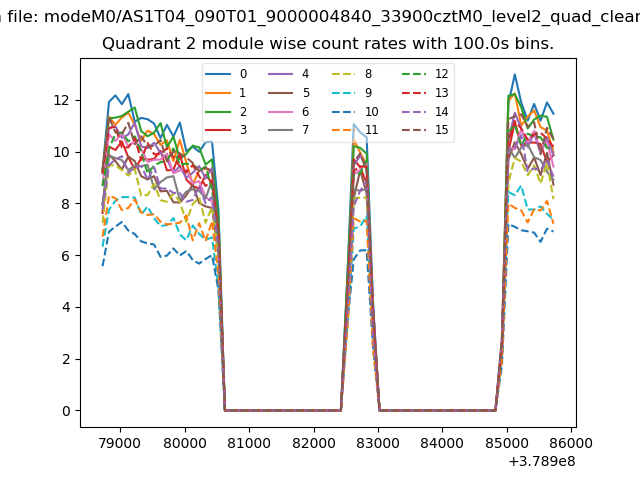

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

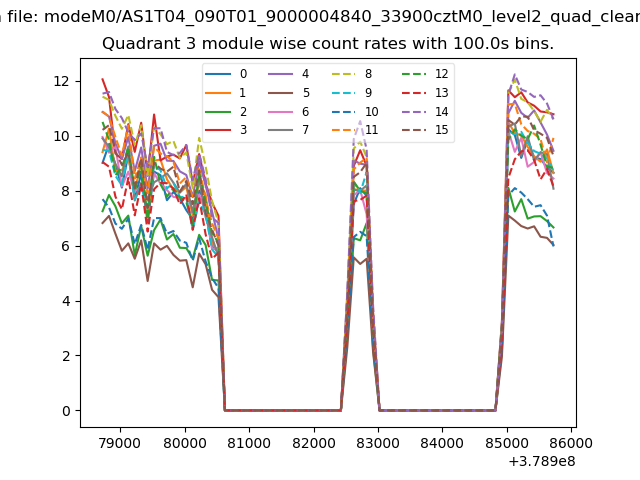

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

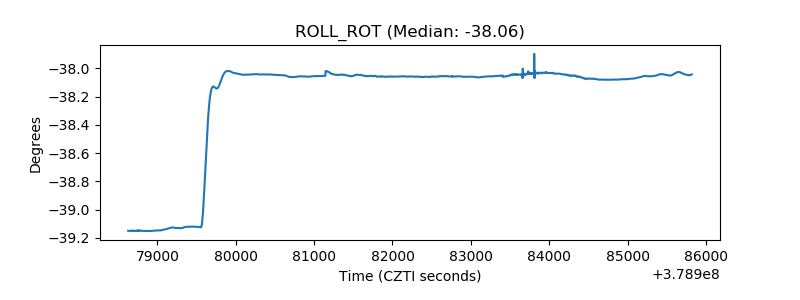

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

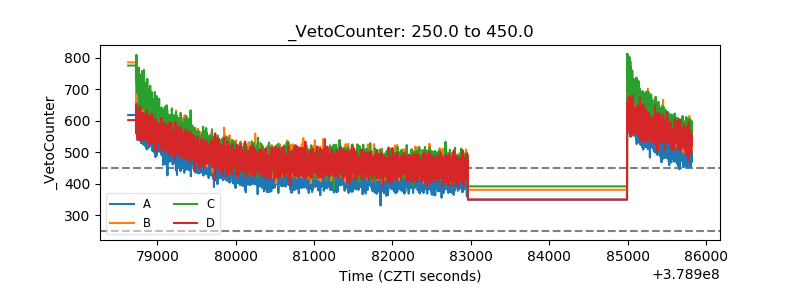

| Veto Counter |  |
