| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_090T01_9000004840_33906cztM0_level2.evt | modeM0/AS1T04_090T01_9000004840_33906cztM0_level2_quad_clean.evt |
| Size (bytes) | 639,276,480 | 74,563,200 |
| Size | 609.7 MB | 71.1 MB |
| Events in quadrant A | 5,481,187 | 447,635 |
| Events in quadrant B | 3,875,936 | 472,841 |
| Events in quadrant C | 3,351,078 | 475,941 |
| Events in quadrant D | 6,249,354 | 444,155 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20246 | 3 |
| B | 0 | 15349 | 2 |
| C | 0 | 13345 | 2 |
| D | 0 | 22623 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5968 | 529 | 8.863941% |
| B | 5968 | 187 | 3.133378% |
| C | 5968 | 113 | 1.893432% |
| D | 5968 | 485 | 8.126676% |

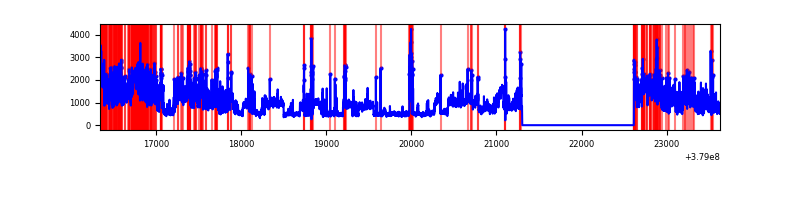

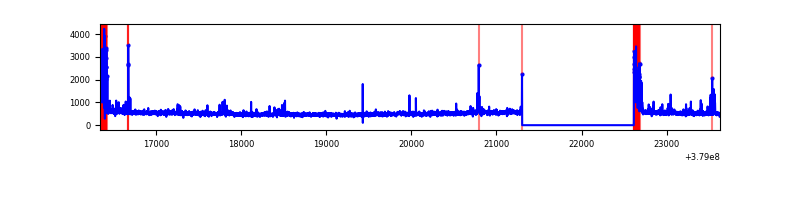

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7280 | 5969 | 383 | 383 | 5.26% | 6.42% |  |
| B | 7280 | 5969 | 120 | 120 | 1.65% | 2.01% |  |
| C | 7280 | 5969 | 74 | 74 | 1.02% | 1.24% |  |
| D | 7280 | 5969 | 442 | 442 | 6.07% | 7.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2848207 | 21056.75 | 671 | 657 | 135.2 |
| A | 7 | 16 | 17533 | 124.79 | 671 | 657 | 135.2 |
| A | 10 | 83 | 12559 | 88.01 | 671 | 657 | 135.2 |
| B | 5 | 172 | 661672 | 5018.18 | 680 | 663 | 131.7 |
| B | 15 | 222 | 346651 | 2626.64 | 680 | 663 | 131.7 |
| B | 4 | 251 | 41665 | 311.27 | 680 | 663 | 131.7 |
| C | 0 | 10 | 276928 | 1774.63 | 669 | 675 | 155.7 |
| C | 15 | 214 | 257899 | 1652.39 | 669 | 675 | 155.7 |
| C | 3 | 233 | 111058 | 709.09 | 669 | 675 | 155.7 |
| D | 1 | 52 | 2079734 | 12418.29 | 659 | 642 | 167.4 |
| D | 8 | 195 | 1100527 | 6569.55 | 659 | 642 | 167.4 |
| D | 13 | 249 | 205063 | 1220.99 | 659 | 642 | 167.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

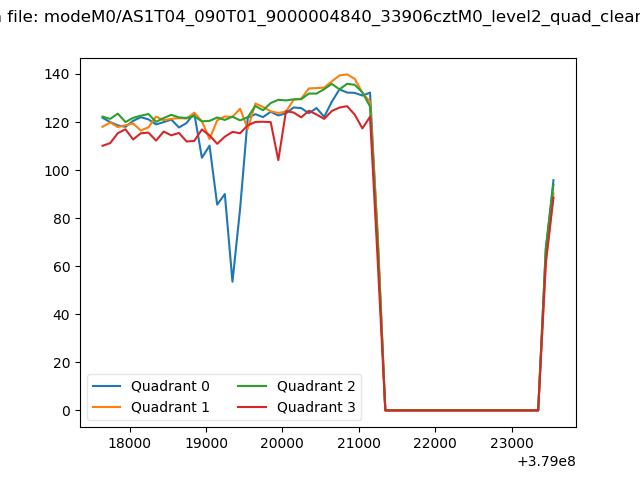

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

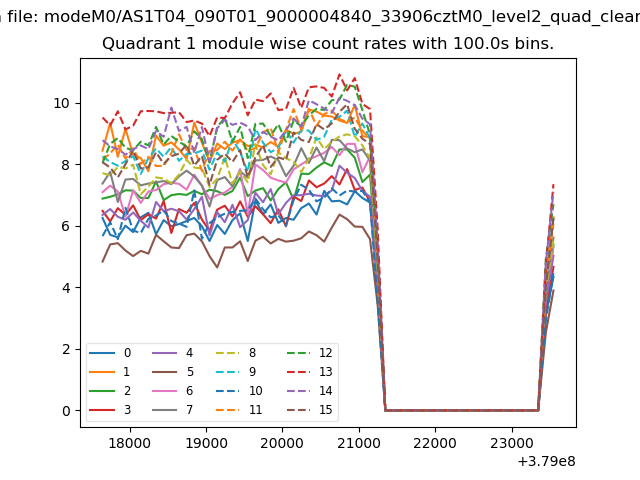

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

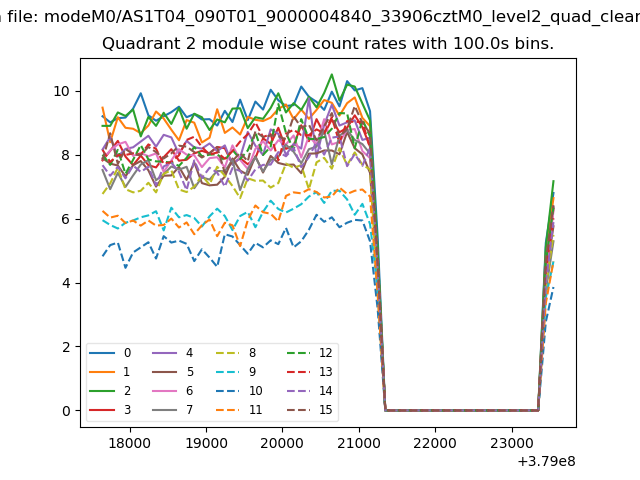

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

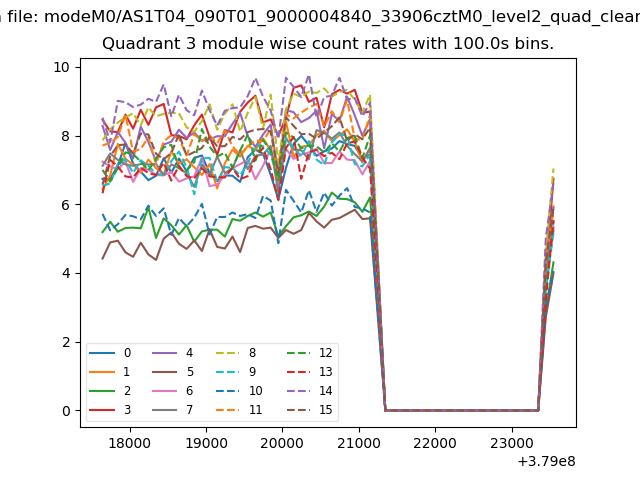

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

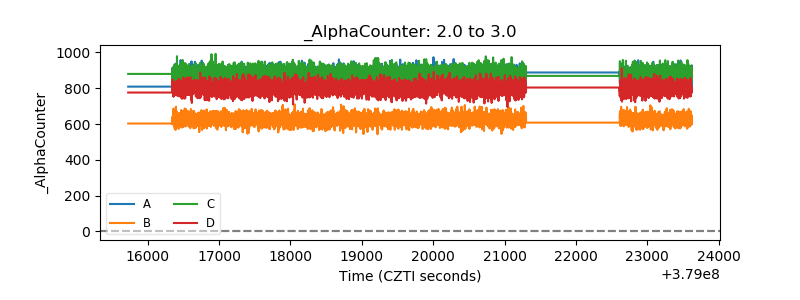

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

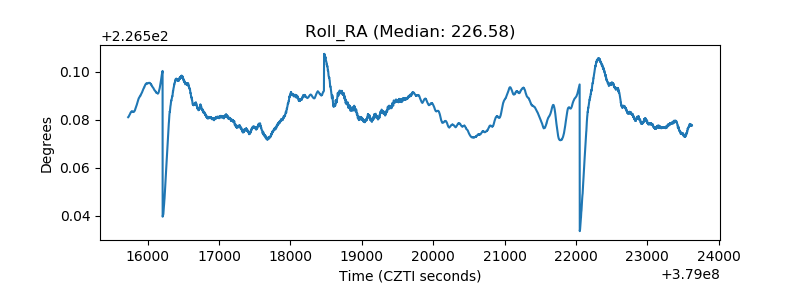

| _Roll_RA |  |
| Veto Counter |  |
