| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_088T01_9000004844_33932cztM0_level2.evt | modeM0/AS1T04_088T01_9000004844_33932cztM0_level2_quad_clean.evt |
| Size (bytes) | 525,093,120 | 60,203,520 |
| Size | 500.8 MB | 57.4 MB |
| Events in quadrant A | 3,895,605 | 371,370 |
| Events in quadrant B | 3,643,893 | 369,588 |
| Events in quadrant C | 3,126,300 | 367,679 |
| Events in quadrant D | 4,880,988 | 345,971 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14884 | 2 |
| B | 0 | 14155 | 1 |
| C | 0 | 12237 | 1 |
| D | 0 | 18159 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5259 | 449 | 8.537745% |
| B | 5259 | 316 | 6.008747% |
| C | 5259 | 89 | 1.692337% |
| D | 5259 | 229 | 4.354440% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7292 | 5260 | 314 | 314 | 4.31% | 5.97% |  |
| B | 7292 | 5260 | 207 | 207 | 2.84% | 3.94% |  |
| C | 7292 | 5260 | 69 | 69 | 0.95% | 1.31% |  |
| D | 7292 | 5260 | 170 | 170 | 2.33% | 3.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1499519 | 12312.74 | 614 | 603 | 121.7 |
| A | 10 | 83 | 13751 | 108.0 | 614 | 603 | 121.7 |
| A | 13 | 254 | 8283 | 63.09 | 614 | 603 | 121.7 |
| B | 5 | 172 | 965783 | 8402.44 | 615 | 599 | 114.9 |
| B | 0 | 190 | 81867 | 707.48 | 615 | 599 | 114.9 |
| B | 0 | 219 | 50750 | 436.59 | 615 | 599 | 114.9 |
| C | 0 | 10 | 257679 | 1834.05 | 614 | 618 | 140.2 |
| C | 15 | 214 | 227853 | 1621.25 | 614 | 618 | 140.2 |
| C | 3 | 233 | 141414 | 1004.53 | 614 | 618 | 140.2 |
| D | 8 | 195 | 1498106 | 9540.18 | 610 | 594 | 157.0 |
| D | 2 | 250 | 413681 | 2631.65 | 610 | 594 | 157.0 |
| D | 12 | 217 | 181703 | 1153.79 | 610 | 594 | 157.0 |

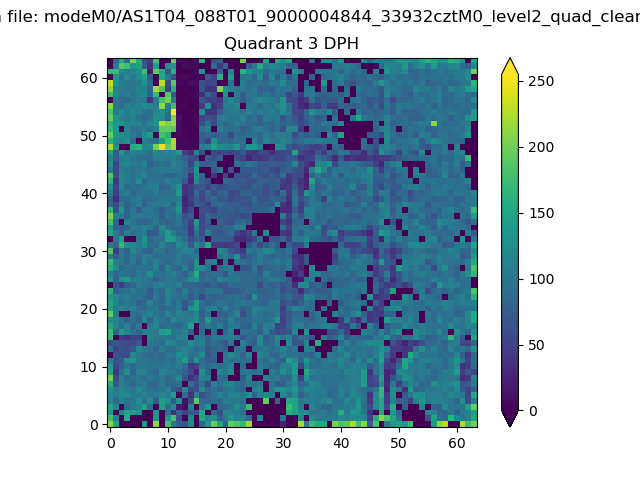

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

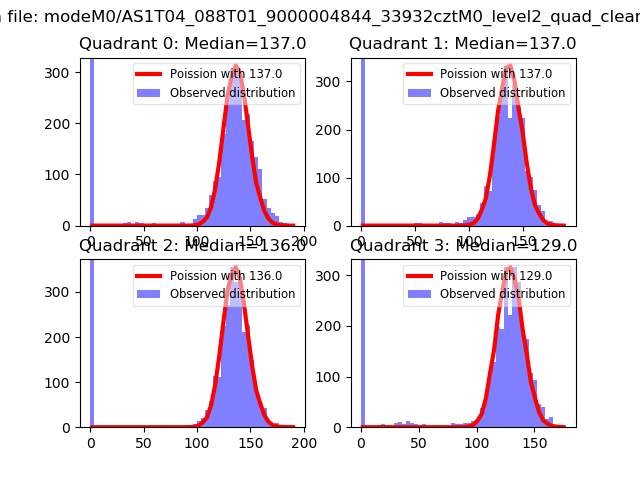

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

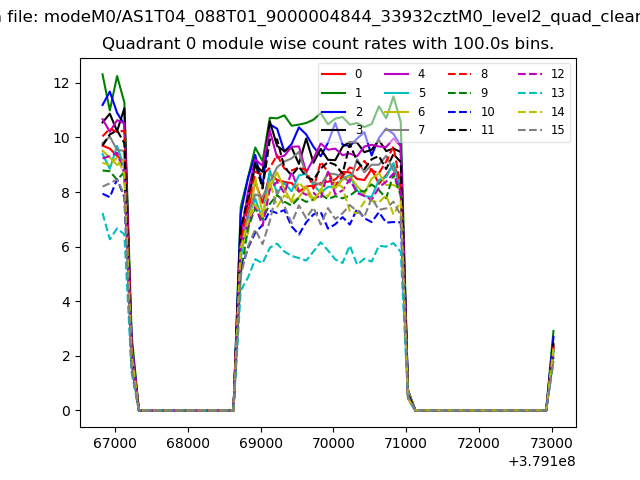

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

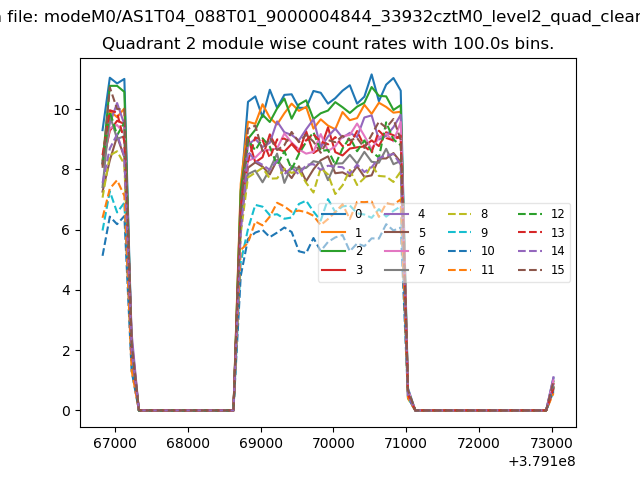

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
