| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T03_9000004848_33936cztM0_level2.evt | modeM0/AS1A11_046T03_9000004848_33936cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,207,040 | 82,488,960 |
| Size | 451.3 MB | 78.7 MB |
| Events in quadrant A | 2,935,746 | 532,439 |
| Events in quadrant B | 3,350,350 | 531,315 |
| Events in quadrant C | 3,218,372 | 530,717 |
| Events in quadrant D | 4,443,393 | 508,501 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12449 | 3 |
| B | 0 | 13788 | 2 |
| C | 0 | 13097 | 2 |
| D | 0 | 17142 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5652 | 69 | 1.220807% |
| B | 5652 | 207 | 3.662420% |
| C | 5652 | 87 | 1.539278% |
| D | 5652 | 202 | 3.573956% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8248 | 5654 | 21 | 21 | 0.25% | 0.37% |  |
| B | 8248 | 5654 | 106 | 106 | 1.29% | 1.87% |  |
| C | 8248 | 5654 | 54 | 54 | 0.65% | 0.96% |  |
| D | 8248 | 5654 | 115 | 115 | 1.39% | 2.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 328464 | 2464.76 | 660 | 647 | 133.0 |
| A | 0 | 31 | 16398 | 118.43 | 660 | 647 | 133.0 |
| A | 10 | 83 | 14143 | 101.47 | 660 | 647 | 133.0 |
| B | 5 | 172 | 557894 | 4465.15 | 648 | 630 | 124.8 |
| B | 0 | 229 | 94114 | 749.05 | 648 | 630 | 124.8 |
| B | 0 | 190 | 45170 | 356.88 | 648 | 630 | 124.8 |
| C | 0 | 10 | 272826 | 1824.76 | 638 | 641 | 149.2 |
| C | 15 | 214 | 242969 | 1624.6 | 638 | 641 | 149.2 |
| C | 14 | 67 | 116134 | 774.28 | 638 | 641 | 149.2 |
| D | 8 | 195 | 1078711 | 6294.37 | 630 | 617 | 171.3 |
| D | 13 | 249 | 346067 | 2016.88 | 630 | 617 | 171.3 |
| D | 2 | 250 | 216533 | 1260.61 | 630 | 617 | 171.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

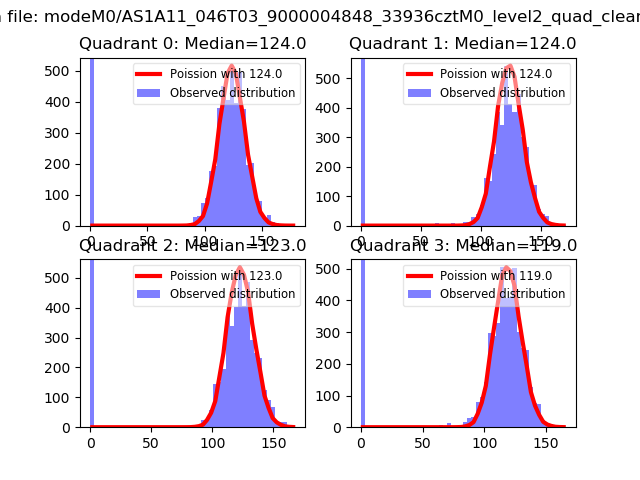

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

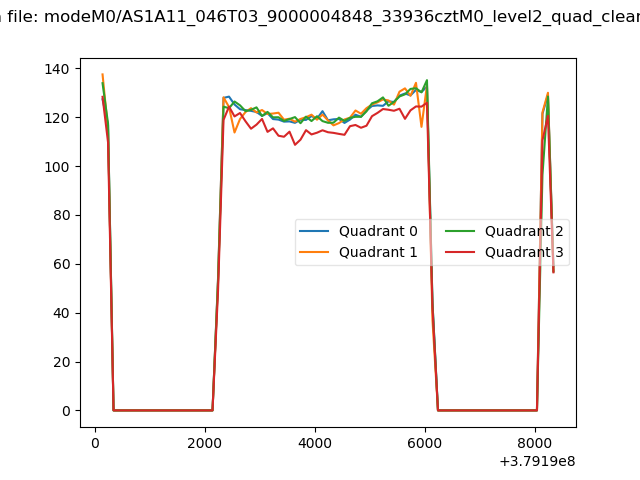

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

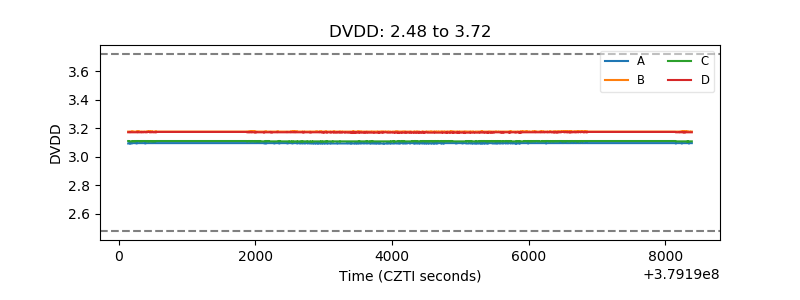

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

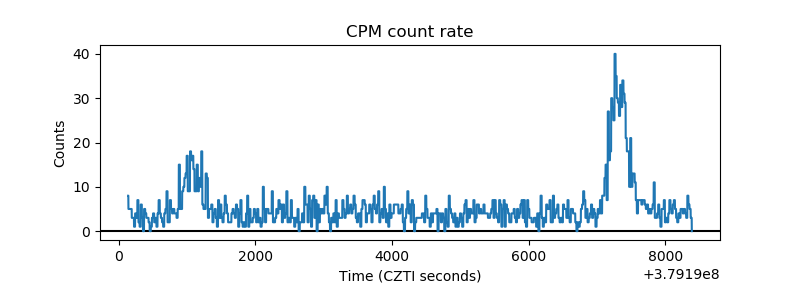

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

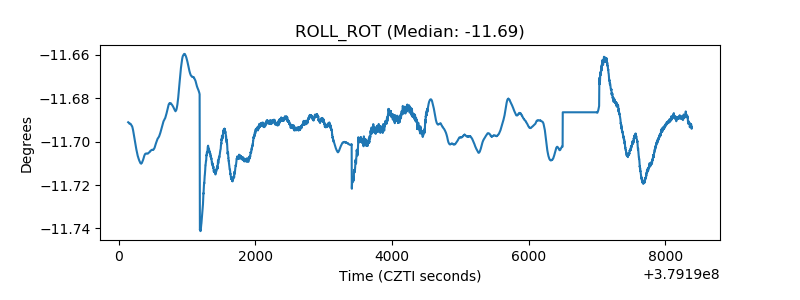

| _ROLL_ROT |  |

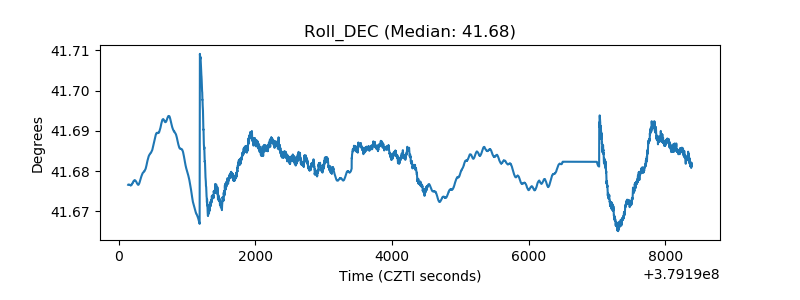

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
