| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T03_9000004848_34124cztM0_level2.evt | modeM0/AS1A11_046T03_9000004848_34124cztM0_level2_quad_clean.evt |
| Size (bytes) | 364,170,240 | 59,434,560 |
| Size | 347.3 MB | 56.7 MB |
| Events in quadrant A | 2,271,749 | 371,661 |
| Events in quadrant B | 2,637,336 | 373,480 |
| Events in quadrant C | 2,661,311 | 360,559 |
| Events in quadrant D | 3,120,881 | 345,884 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9993 | 1 |
| B | 0 | 10912 | 1 |
| C | 0 | 10704 | 1 |
| D | 0 | 12549 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4963 | 5 | 0.100746% |
| B | 4963 | 49 | 0.987306% |
| C | 4963 | 51 | 1.027604% |
| D | 4963 | 41 | 0.826113% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6306 | 4964 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6306 | 4964 | 25 | 25 | 0.40% | 0.50% |  |
| C | 6306 | 4964 | 31 | 31 | 0.49% | 0.62% |  |
| D | 6306 | 4964 | 39 | 39 | 0.62% | 0.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 19847 | 164.84 | 577 | 565 | 117.0 |
| A | 10 | 83 | 11742 | 95.55 | 577 | 565 | 117.0 |
| A | 13 | 254 | 8565 | 68.39 | 577 | 565 | 117.0 |
| B | 5 | 172 | 238586 | 2132.14 | 573 | 556 | 111.6 |
| B | 0 | 219 | 53330 | 472.72 | 573 | 556 | 111.6 |
| B | 0 | 229 | 26509 | 232.47 | 573 | 556 | 111.6 |
| C | 0 | 10 | 218939 | 1663.79 | 558 | 562 | 131.3 |
| C | 15 | 214 | 210078 | 1596.28 | 558 | 562 | 131.3 |
| C | 14 | 67 | 31207 | 233.48 | 558 | 562 | 131.3 |
| D | 8 | 195 | 372173 | 2697.93 | 558 | 541 | 137.7 |
| D | 2 | 250 | 111216 | 803.46 | 558 | 541 | 137.7 |
| D | 12 | 233 | 92603 | 668.34 | 558 | 541 | 137.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

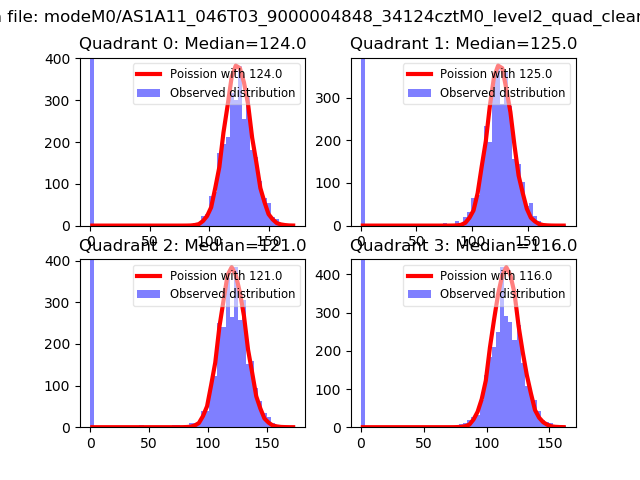

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

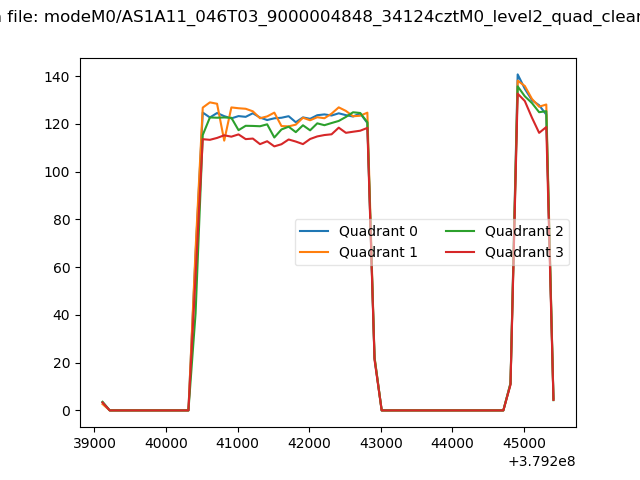

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
