| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_068T02_9000004850_33949cztM0_level2.evt | modeM0/AS1A11_068T02_9000004850_33949cztM0_level2_quad_clean.evt |
| Size (bytes) | 535,429,440 | 80,640,000 |
| Size | 510.6 MB | 76.9 MB |
| Events in quadrant A | 2,720,260 | 526,022 |
| Events in quadrant B | 3,578,343 | 521,247 |
| Events in quadrant C | 3,819,404 | 519,413 |
| Events in quadrant D | 5,701,035 | 466,060 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11829 | 3 |
| B | 0 | 14464 | 2 |
| C | 0 | 15218 | 2 |
| D | 0 | 21001 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5848 | 5 | 0.085499% |
| B | 5848 | 193 | 3.300274% |
| C | 5848 | 128 | 2.188782% |
| D | 5848 | 667 | 11.405609% |

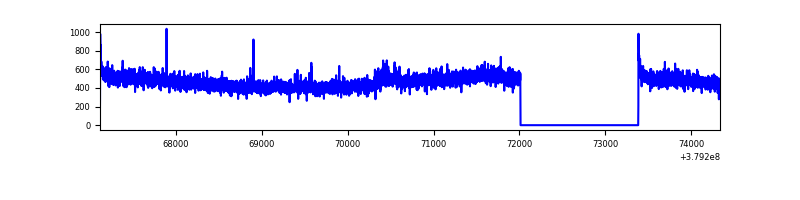

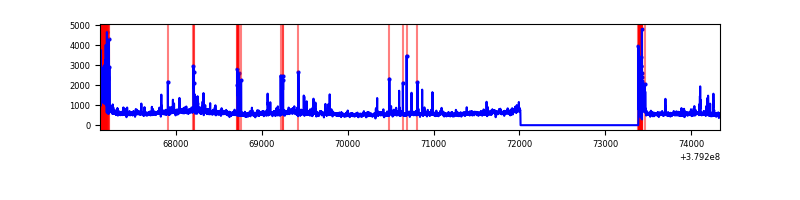

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7221 | 5849 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7221 | 5849 | 98 | 98 | 1.36% | 1.68% |  |
| C | 7221 | 5849 | 82 | 82 | 1.14% | 1.40% |  |
| D | 7221 | 5849 | 586 | 586 | 8.12% | 10.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 15381 | 105.53 | 694 | 679 | 139.3 |
| A | 15 | 169 | 13187 | 89.78 | 694 | 679 | 139.3 |
| A | 13 | 254 | 10257 | 68.75 | 694 | 679 | 139.3 |
| B | 5 | 172 | 588985 | 4484.31 | 680 | 660 | 131.2 |
| B | 0 | 182 | 80092 | 605.44 | 680 | 660 | 131.2 |
| B | 4 | 81 | 72383 | 546.68 | 680 | 660 | 131.2 |
| C | 3 | 233 | 479461 | 3076.12 | 667 | 672 | 155.6 |
| C | 0 | 10 | 358443 | 2298.6 | 667 | 672 | 155.6 |
| C | 15 | 214 | 250542 | 1605.36 | 667 | 672 | 155.6 |
| D | 7 | 238 | 1295027 | 7936.57 | 640 | 624 | 163.1 |
| D | 8 | 195 | 803273 | 4921.4 | 640 | 624 | 163.1 |
| D | 2 | 250 | 391571 | 2397.07 | 640 | 624 | 163.1 |

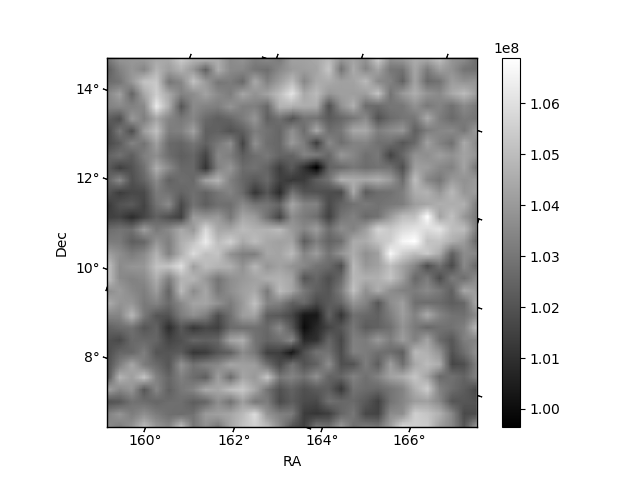

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

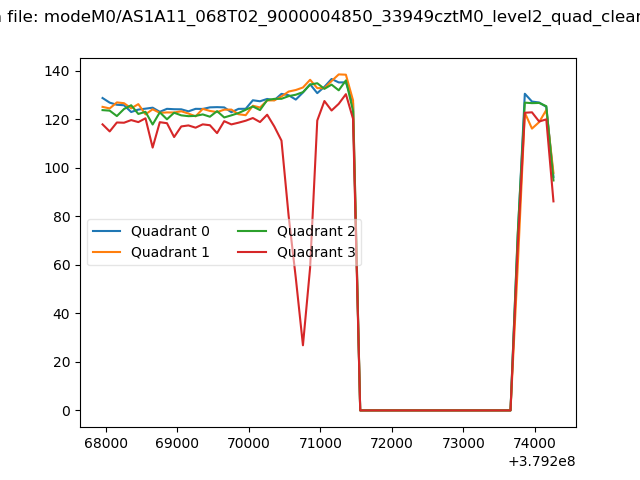

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

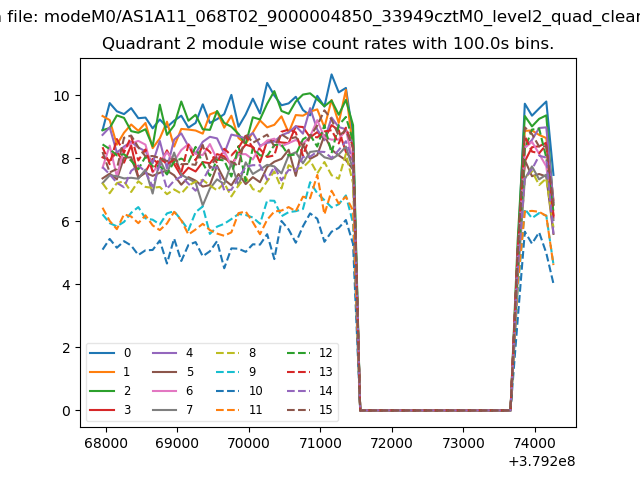

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

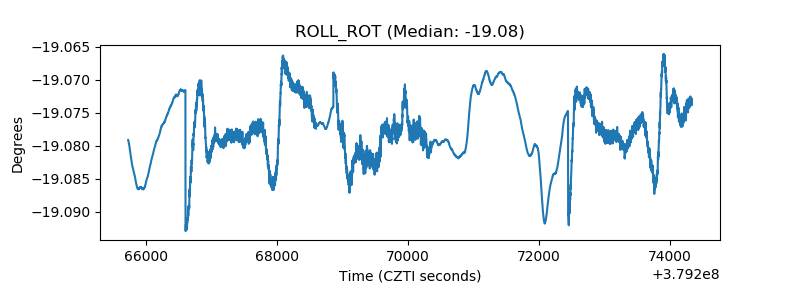

| _ROLL_ROT |  |
| _Roll_DEC |  |

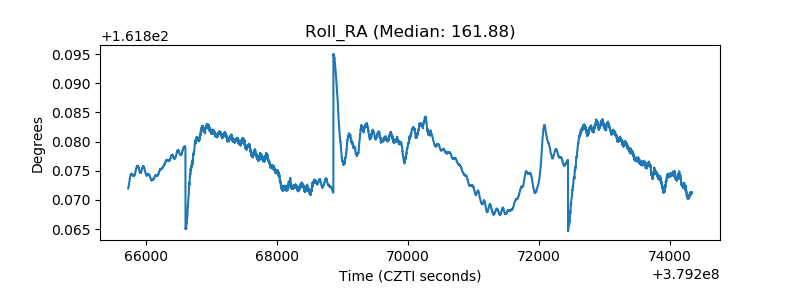

| _Roll_RA |  |
| Veto Counter |  |
