| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T04_074T01_9000004852_33953cztM0_level2.evt | modeM0/AS1T04_074T01_9000004852_33953cztM0_level2_quad_clean.evt |
| Size (bytes) | 858,591,360 | 99,567,360 |
| Size | 818.8 MB | 95.0 MB |
| Events in quadrant A | 5,482,164 | 612,606 |
| Events in quadrant B | 5,266,781 | 615,977 |
| Events in quadrant C | 5,024,028 | 608,077 |
| Events in quadrant D | 9,605,493 | 536,984 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 188 | 0 |
| B | 0 | 188 | 0 |
| C | 0 | 188 | 0 |
| D | 0 | 188 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22449 | 3 |
| B | 0 | 21709 | 2 |
| C | 0 | 20282 | 2 |
| D | 0 | 34982 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9244 | 444 | 4.803116% |
| B | 9244 | 215 | 2.325833% |
| C | 9244 | 75 | 0.811337% |
| D | 9244 | 1297 | 14.030723% |

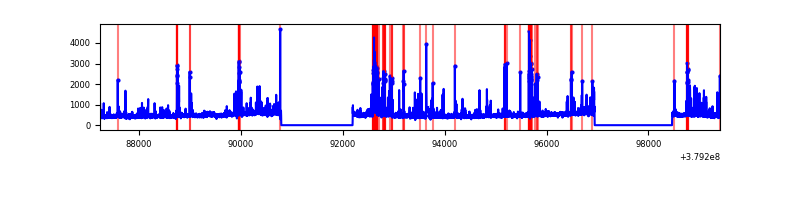

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12168 | 9246 | 319 | 319 | 2.62% | 3.45% |  |
| B | 12168 | 9246 | 131 | 131 | 1.08% | 1.42% |  |
| C | 12168 | 9246 | 44 | 44 | 0.36% | 0.48% |  |
| D | 12168 | 9246 | 1205 | 1205 | 9.90% | 13.03% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1346681 | 6302.71 | 1064 | 1042 | 213.5 |
| A | 10 | 83 | 17005 | 74.77 | 1064 | 1042 | 213.5 |
| A | 13 | 254 | 14650 | 63.74 | 1064 | 1042 | 213.5 |
| B | 5 | 172 | 723365 | 3520.86 | 1070 | 1042 | 205.2 |
| B | 4 | 232 | 71233 | 342.14 | 1070 | 1042 | 205.2 |
| B | 0 | 219 | 63850 | 306.15 | 1070 | 1042 | 205.2 |
| C | 15 | 214 | 395339 | 1612.2 | 1054 | 1061 | 244.6 |
| C | 0 | 10 | 216203 | 879.72 | 1054 | 1061 | 244.6 |
| C | 3 | 233 | 161124 | 654.5 | 1054 | 1061 | 244.6 |
| D | 7 | 238 | 1662789 | 6752.64 | 998 | 970 | 246.1 |
| D | 8 | 230 | 1562350 | 6344.52 | 998 | 970 | 246.1 |
| D | 8 | 195 | 1478577 | 6004.12 | 998 | 970 | 246.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

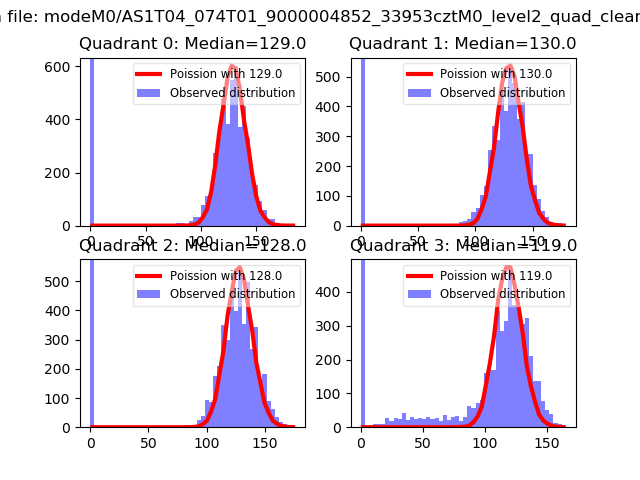

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

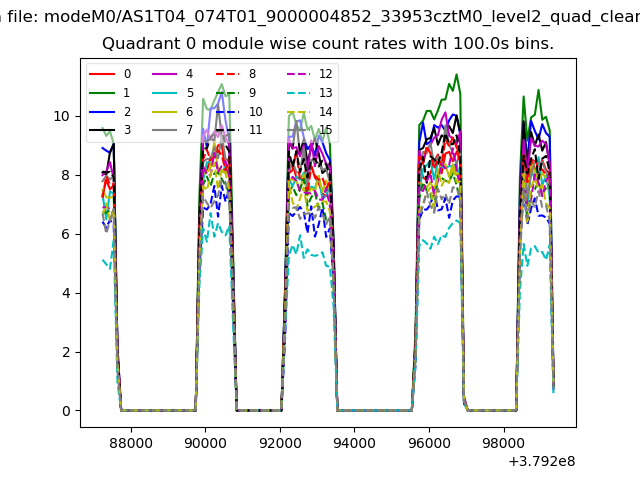

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

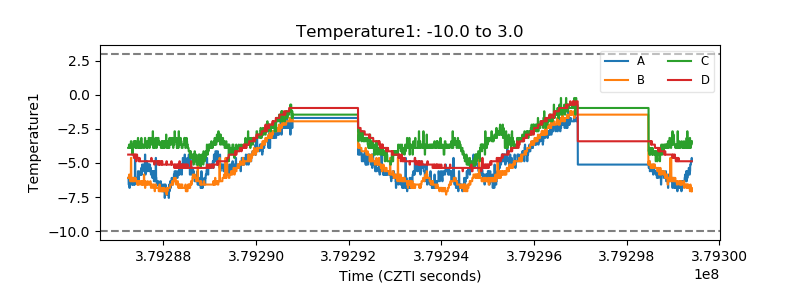

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

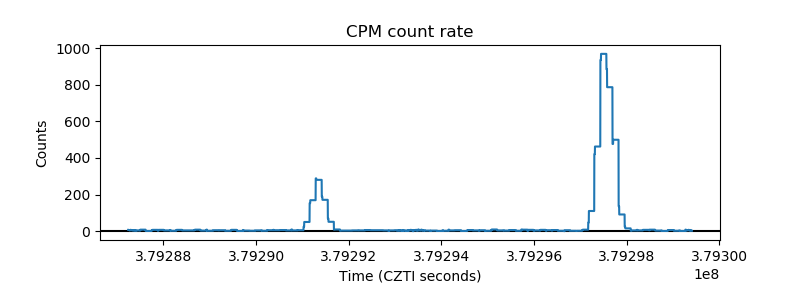

| _CPM_Rate |  |

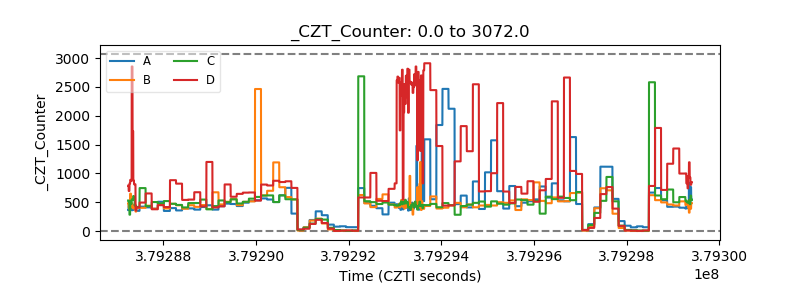

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

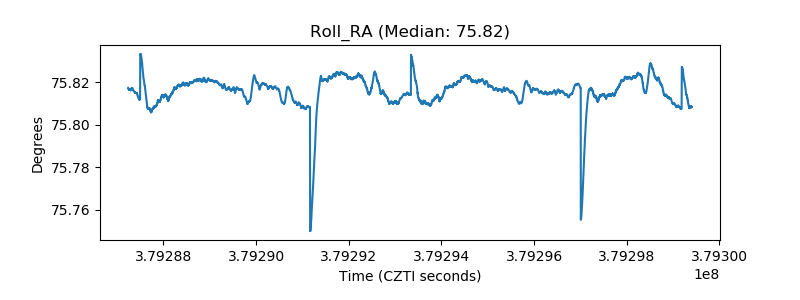

| _Roll_RA |  |

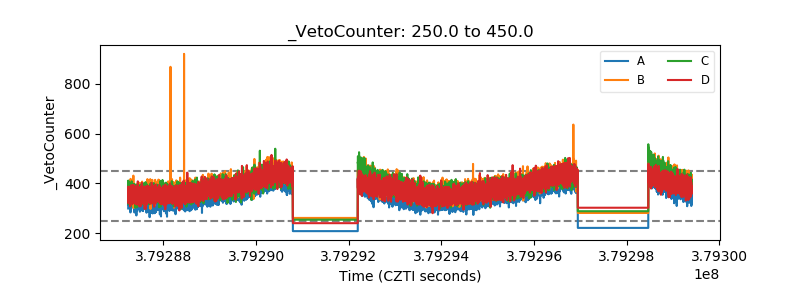

| Veto Counter |  |
