| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_037T01_9000004858_33967cztM0_level2.evt | modeM0/AS1A11_037T01_9000004858_33967cztM0_level2_quad_clean.evt |
| Size (bytes) | 925,729,920 | 115,588,800 |
| Size | 882.8 MB | 110.2 MB |
| Events in quadrant A | 4,506,183 | 753,536 |
| Events in quadrant B | 5,358,528 | 747,655 |
| Events in quadrant C | 5,087,348 | 726,865 |
| Events in quadrant D | 12,465,756 | 636,690 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19619 | 3 |
| B | 0 | 21994 | 2 |
| C | 0 | 20681 | 2 |
| D | 0 | 43319 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 190 | 0 |
| B | 0 | 190 | 0 |
| C | 0 | 190 | 0 |
| D | 0 | 190 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9147 | 24 | 0.262381% |
| B | 9147 | 237 | 2.591013% |
| C | 9147 | 95 | 1.038592% |
| D | 9147 | 2527 | 27.626544% |

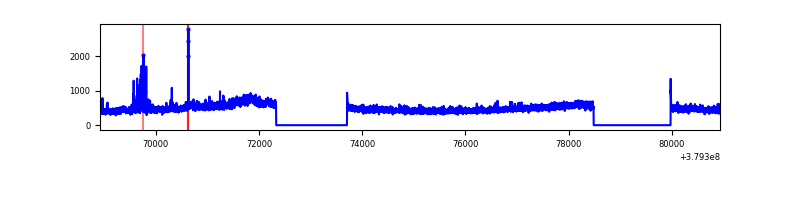

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12013 | 9149 | 4 | 4 | 0.03% | 0.04% |  |
| B | 12013 | 9149 | 139 | 139 | 1.16% | 1.52% |  |
| C | 12013 | 9149 | 70 | 70 | 0.58% | 0.77% |  |
| D | 12013 | 9149 | 2130 | 2130 | 17.73% | 23.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 260209 | 1191.18 | 1075 | 1051 | 217.6 |
| A | 14 | 238 | 49144 | 221.05 | 1075 | 1051 | 217.6 |
| A | 13 | 6 | 30708 | 136.31 | 1075 | 1051 | 217.6 |
| B | 5 | 172 | 863387 | 4253.27 | 1063 | 1033 | 202.8 |
| B | 0 | 190 | 79177 | 385.42 | 1063 | 1033 | 202.8 |
| B | 0 | 229 | 59385 | 287.8 | 1063 | 1033 | 202.8 |
| C | 15 | 214 | 390433 | 1604.15 | 1048 | 1055 | 242.7 |
| C | 3 | 233 | 322537 | 1324.43 | 1048 | 1055 | 242.7 |
| C | 0 | 10 | 205178 | 840.94 | 1048 | 1055 | 242.7 |
| D | 12 | 33 | 5161691 | 20448.5 | 947 | 924 | 252.4 |
| D | 8 | 195 | 1121139 | 4438.62 | 947 | 924 | 252.4 |
| D | 12 | 6 | 824425 | 3262.95 | 947 | 924 | 252.4 |

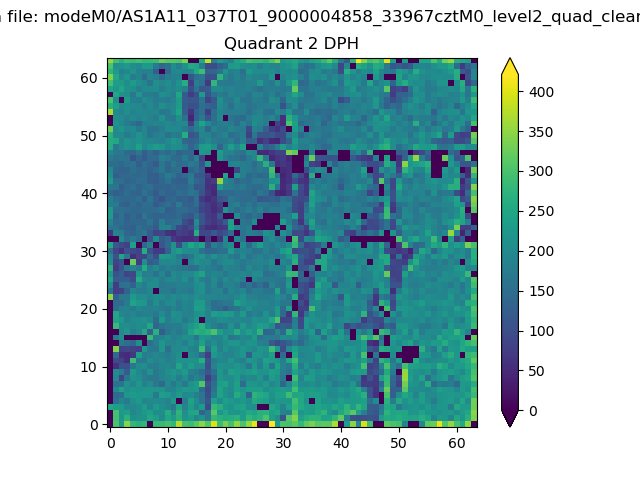

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

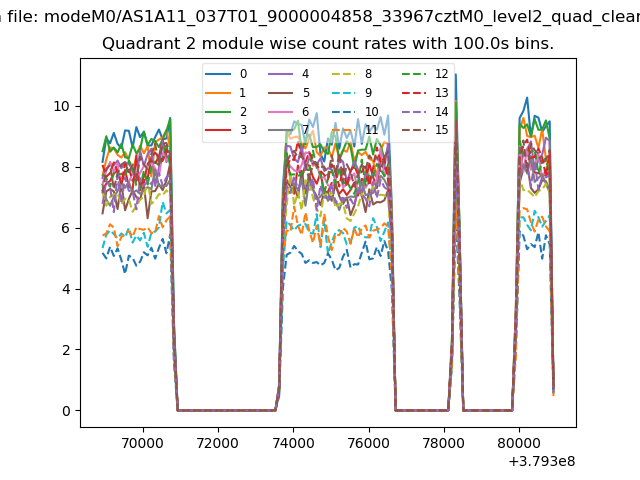

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

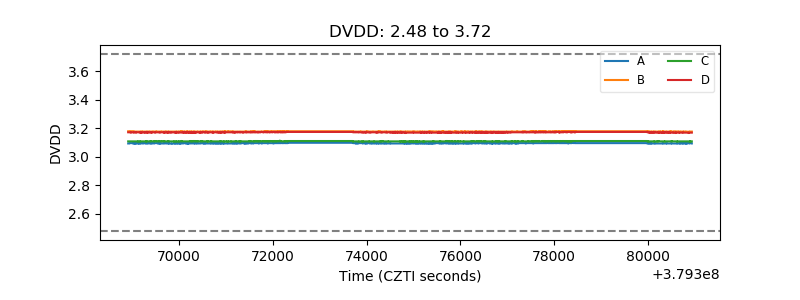

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

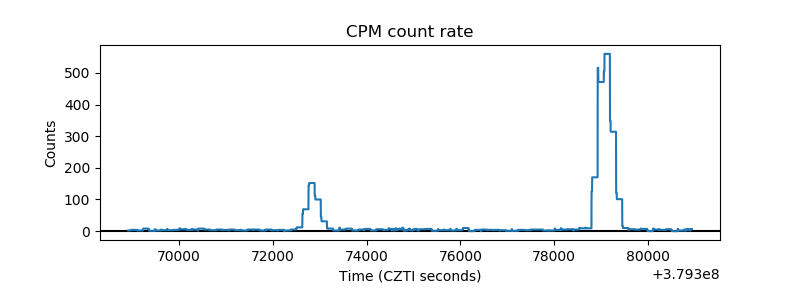

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

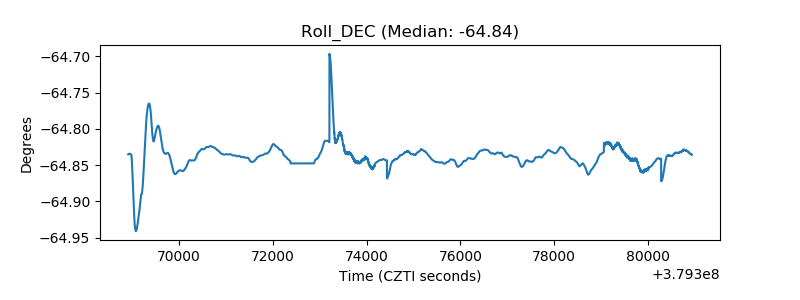

| _Roll_DEC |  |
| _Roll_RA |  |

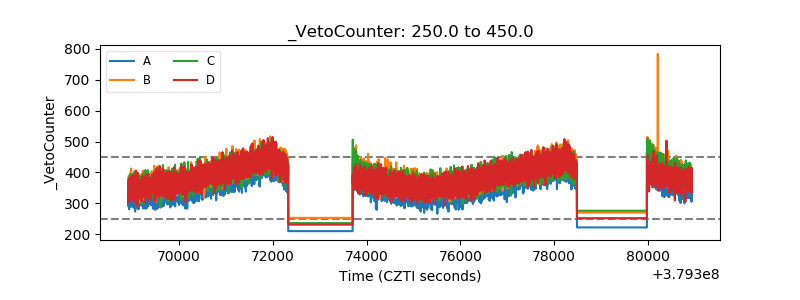

| Veto Counter |  |
