| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_034T07_9000004860_33976cztM0_level2.evt | modeM0/AS1A11_034T07_9000004860_33976cztM0_level2_quad_clean.evt |
| Size (bytes) | 589,913,280 | 68,952,960 |
| Size | 562.6 MB | 65.8 MB |
| Events in quadrant A | 5,745,899 | 4,211 |
| Events in quadrant B | 3,462,258 | 595,280 |
| Events in quadrant C | 3,879,862 | 575,081 |
| Events in quadrant D | 4,429,392 | 553,509 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20755 | 3 |
| B | 0 | 13475 | 2 |
| C | 0 | 14678 | 2 |
| D | 0 | 16609 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5106 | 5106 | 100.000000% |
| B | 5106 | 190 | 3.721112% |
| C | 5106 | 300 | 5.875441% |
| D | 5106 | 267 | 5.229142% |

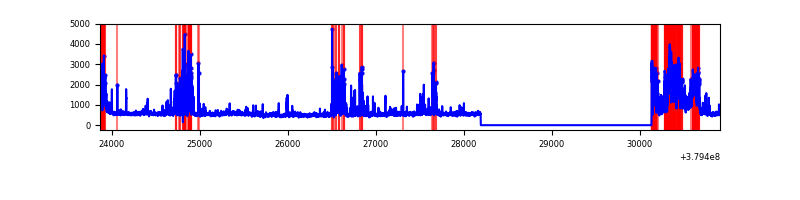

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7047 | 5105 | 440 | 440 | 6.24% | 8.62% |  |
| B | 7048 | 5107 | 136 | 136 | 1.93% | 2.66% |  |
| C | 7048 | 5107 | 253 | 253 | 3.59% | 4.95% |  |
| D | 7048 | 5107 | 246 | 246 | 3.49% | 4.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 5686174 | 1174173.72 | 14 | 14 | 4.8 |
| A | 13 | 6 | 567 | 114.19 | 14 | 14 | 4.8 |
| A | 10 | 83 | 537 | 108.0 | 14 | 14 | 4.8 |
| B | 5 | 172 | 688907 | 5907.26 | 609 | 595 | 116.5 |
| B | 0 | 190 | 166294 | 1422.07 | 609 | 595 | 116.5 |
| B | 0 | 229 | 63052 | 536.02 | 609 | 595 | 116.5 |
| C | 4 | 254 | 892343 | 6577.18 | 587 | 592 | 135.6 |
| C | 0 | 10 | 279744 | 2058.9 | 587 | 592 | 135.6 |
| C | 15 | 214 | 220671 | 1623.21 | 587 | 592 | 135.6 |
| D | 8 | 195 | 776489 | 5255.71 | 594 | 578 | 147.6 |
| D | 2 | 250 | 426579 | 2885.56 | 594 | 578 | 147.6 |
| D | 13 | 249 | 382945 | 2590.0 | 594 | 578 | 147.6 |

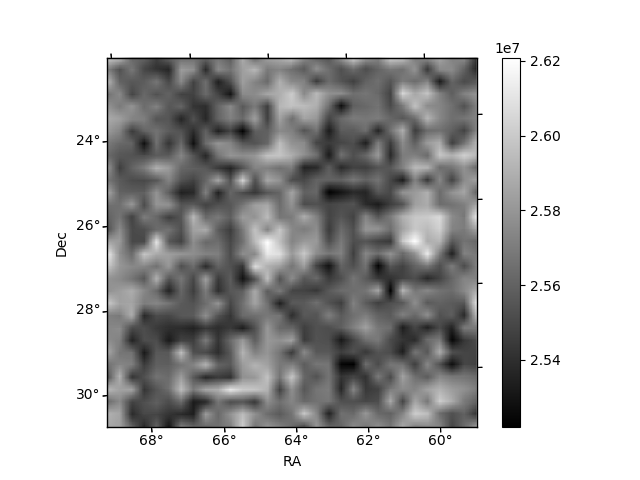

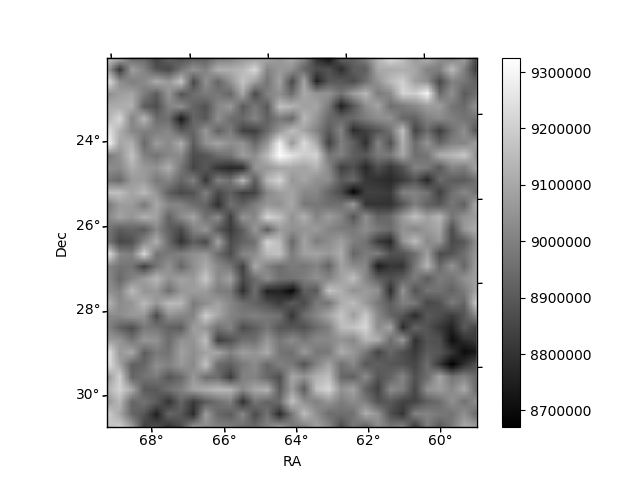

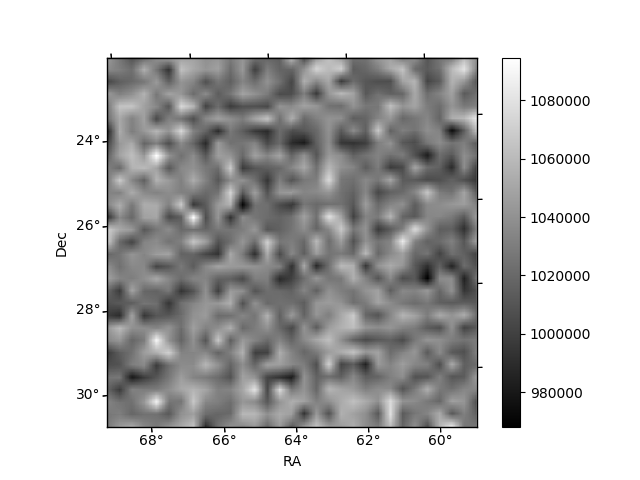

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

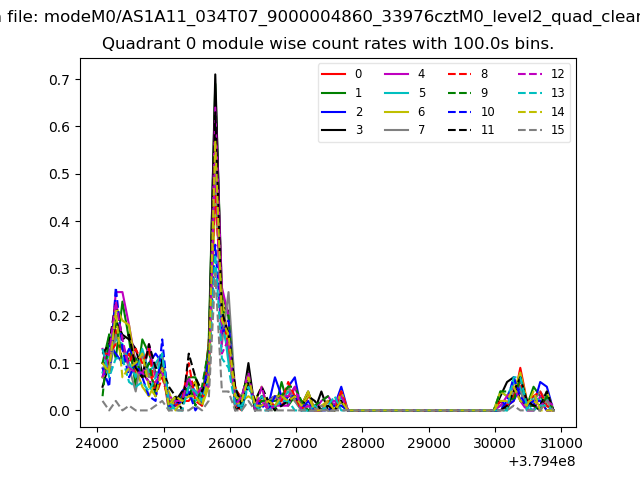

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

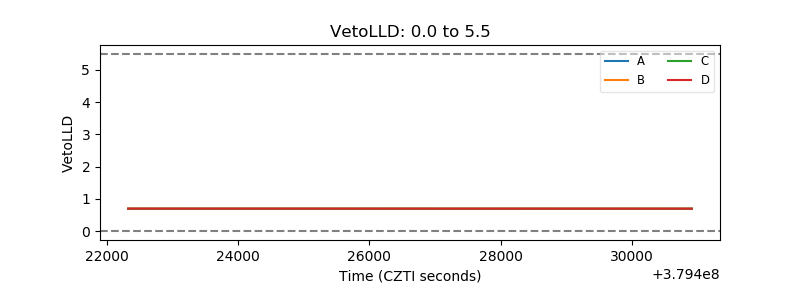

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

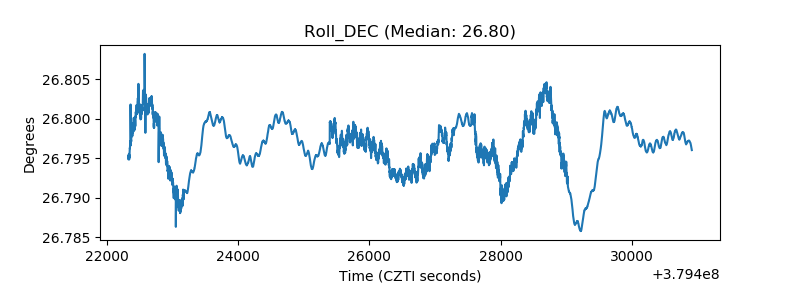

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
