| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_046T07_9000004862_33986cztM0_level2.evt | modeM0/AS1A11_046T07_9000004862_33986cztM0_level2_quad_clean.evt |
| Size (bytes) | 507,110,400 | 72,106,560 |
| Size | 483.6 MB | 68.8 MB |
| Events in quadrant A | 4,215,502 | 458,270 |
| Events in quadrant B | 3,290,326 | 468,811 |
| Events in quadrant C | 3,172,787 | 454,791 |
| Events in quadrant D | 4,321,040 | 430,739 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15946 | 3 |
| B | 0 | 13014 | 2 |
| C | 0 | 12523 | 2 |
| D | 0 | 16254 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5300 | 361 | 6.811321% |
| B | 5300 | 92 | 1.735849% |
| C | 5300 | 75 | 1.415094% |
| D | 5300 | 92 | 1.735849% |

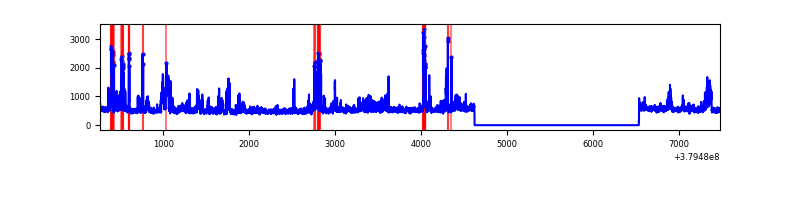

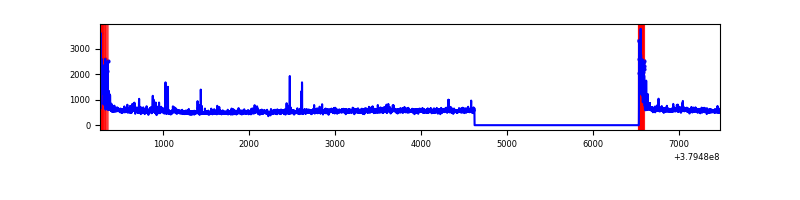

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7213 | 5301 | 256 | 256 | 3.55% | 4.83% |  |
| B | 7213 | 5301 | 60 | 60 | 0.83% | 1.13% |  |
| C | 7213 | 5301 | 63 | 63 | 0.87% | 1.19% |  |
| D | 7213 | 5301 | 73 | 73 | 1.01% | 1.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1602622 | 12132.42 | 668 | 657 | 132.0 |
| A | 10 | 83 | 16168 | 117.47 | 668 | 657 | 132.0 |
| A | 13 | 6 | 12483 | 89.56 | 668 | 657 | 132.0 |
| B | 5 | 172 | 147414 | 1154.67 | 669 | 652 | 127.1 |
| B | 4 | 200 | 124607 | 975.23 | 669 | 652 | 127.1 |
| B | 0 | 190 | 109090 | 853.15 | 669 | 652 | 127.1 |
| C | 0 | 10 | 261900 | 1732.85 | 655 | 663 | 150.8 |
| C | 15 | 214 | 228881 | 1513.83 | 655 | 663 | 150.8 |
| C | 3 | 233 | 96551 | 636.05 | 655 | 663 | 150.8 |
| D | 8 | 195 | 1317064 | 8165.16 | 658 | 641 | 161.2 |
| D | 2 | 250 | 155951 | 963.31 | 658 | 641 | 161.2 |
| D | 13 | 249 | 103215 | 636.22 | 658 | 641 | 161.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

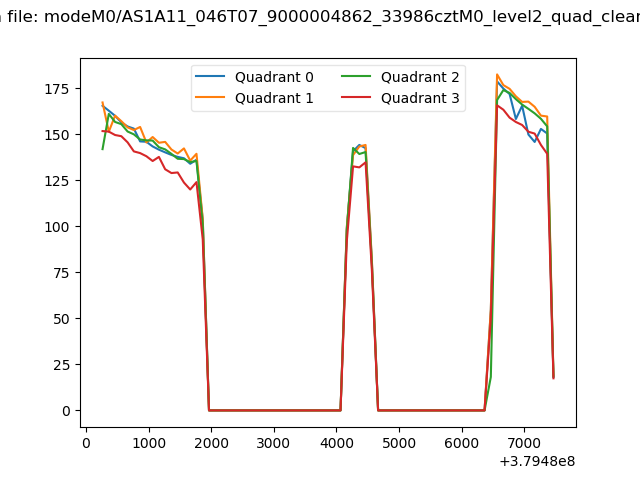

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

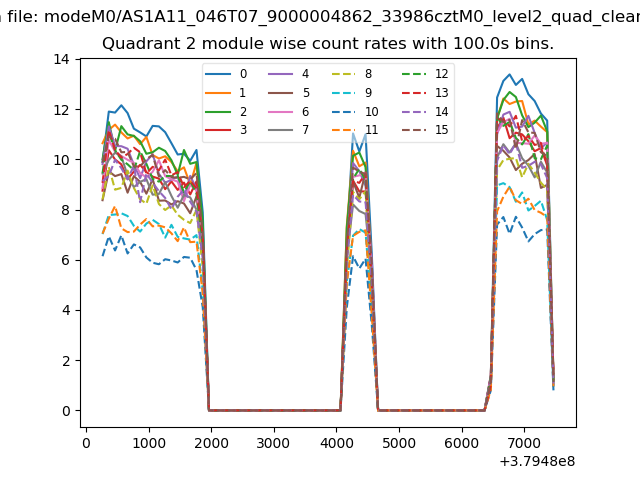

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

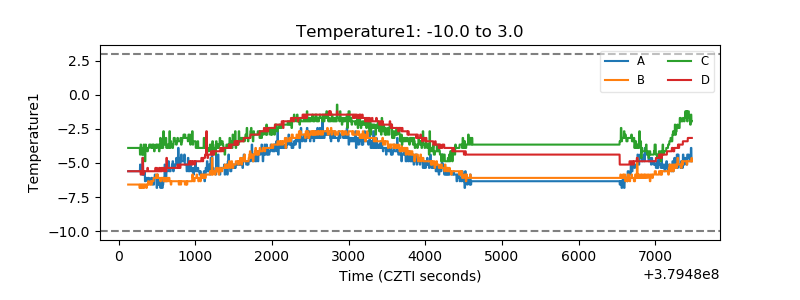

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

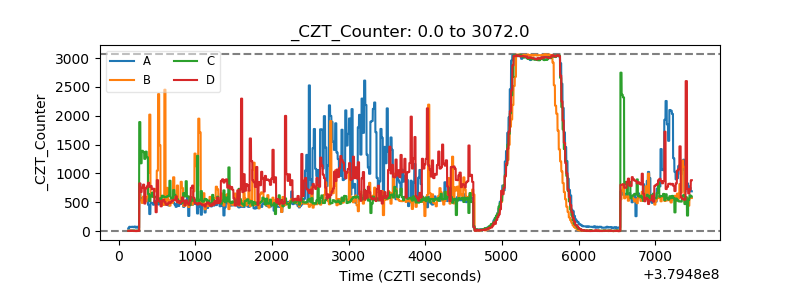

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

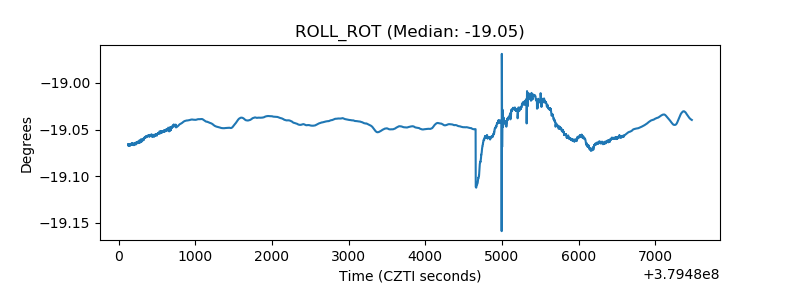

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

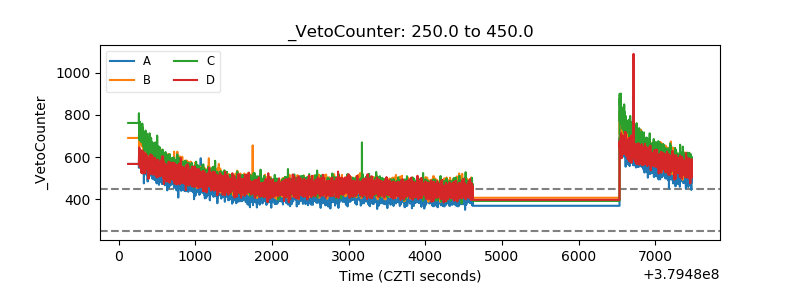

| Veto Counter |  |
