| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T03_9000004864_33991cztM0_level2.evt | modeM0/AS1A11_106T03_9000004864_33991cztM0_level2_quad_clean.evt |
| Size (bytes) | 597,309,120 | 60,848,640 |
| Size | 569.6 MB | 58.0 MB |
| Events in quadrant A | 3,137,530 | 374,036 |
| Events in quadrant B | 5,926,455 | 365,617 |
| Events in quadrant C | 3,328,415 | 371,805 |
| Events in quadrant D | 5,327,772 | 347,893 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12772 | 3 |
| B | 0 | 21317 | 2 |
| C | 0 | 13080 | 2 |
| D | 0 | 19570 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5466 | 6 | 0.109769% |
| B | 5466 | 873 | 15.971460% |
| C | 5466 | 76 | 1.390413% |
| D | 5466 | 345 | 6.311745% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

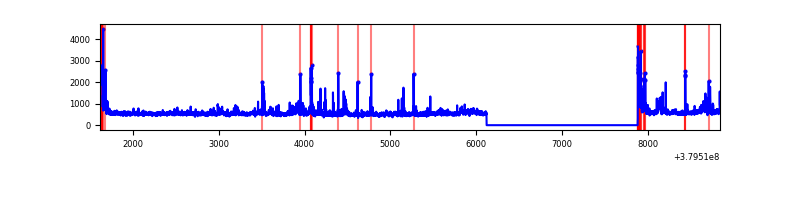

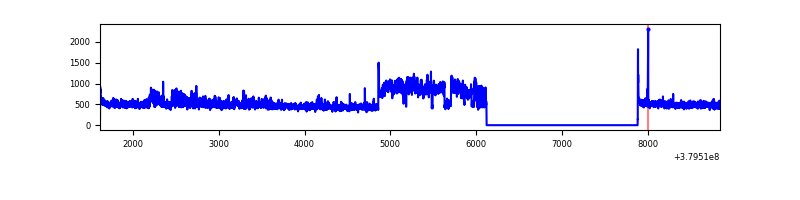

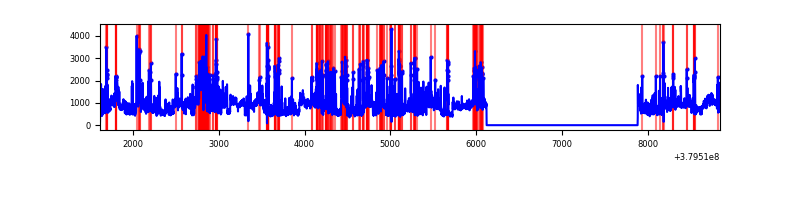

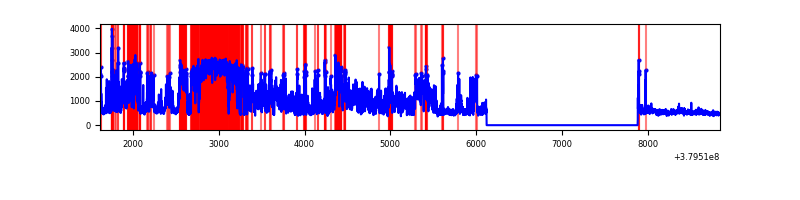

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7229 | 5467 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7229 | 5467 | 710 | 710 | 9.82% | 12.99% |  |
| C | 7229 | 5467 | 64 | 64 | 0.89% | 1.17% |  |
| D | 7229 | 5467 | 298 | 298 | 4.12% | 5.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 594723 | 4613.42 | 647 | 634 | 128.8 |
| A | 10 | 83 | 16540 | 123.52 | 647 | 634 | 128.8 |
| A | 13 | 6 | 12715 | 93.82 | 647 | 634 | 128.8 |
| B | 5 | 31 | 858206 | 7403.88 | 613 | 598 | 115.8 |
| B | 5 | 15 | 852018 | 7350.46 | 613 | 598 | 115.8 |
| B | 5 | 14 | 792160 | 6833.69 | 613 | 598 | 115.8 |
| C | 3 | 233 | 273868 | 1891.33 | 627 | 631 | 144.5 |
| C | 15 | 214 | 237599 | 1640.27 | 627 | 631 | 144.5 |
| C | 0 | 10 | 189794 | 1309.37 | 627 | 631 | 144.5 |
| D | 8 | 195 | 1396028 | 8497.95 | 612 | 599 | 164.2 |
| D | 12 | 6 | 398587 | 2423.69 | 612 | 599 | 164.2 |
| D | 13 | 249 | 355768 | 2162.93 | 612 | 599 | 164.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

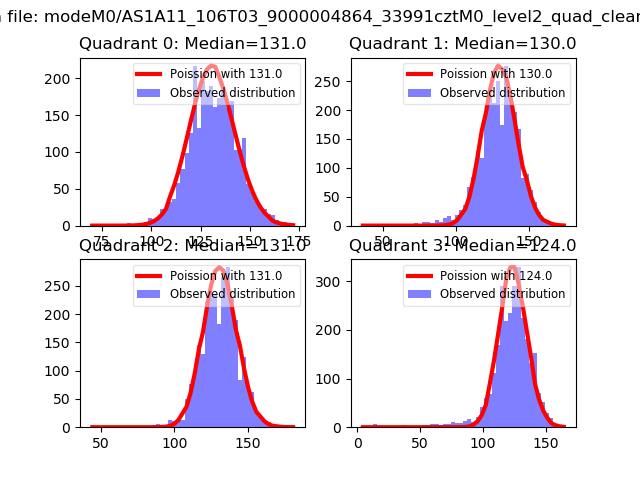

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

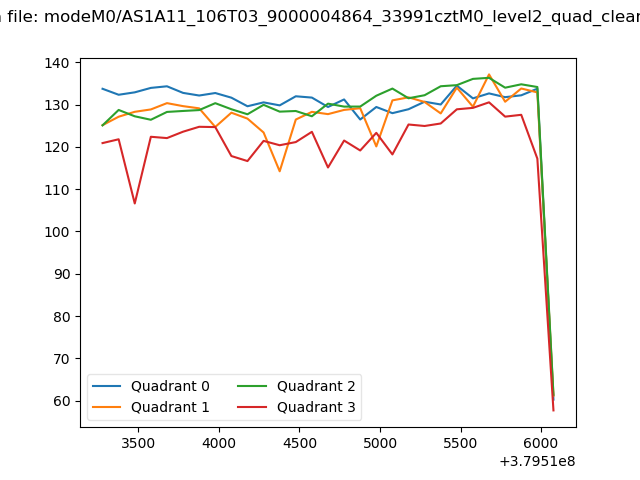

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

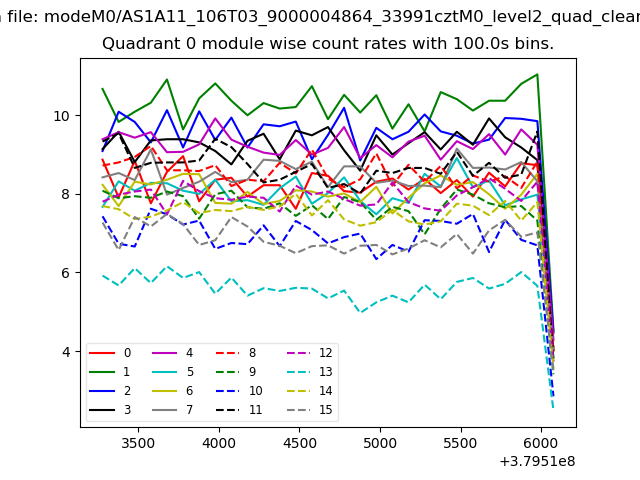

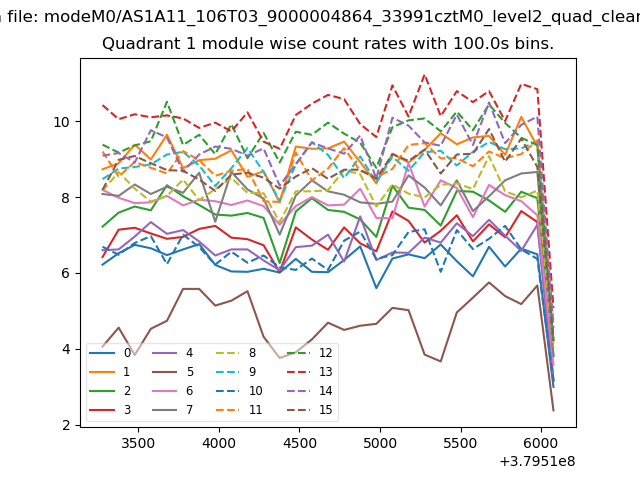

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

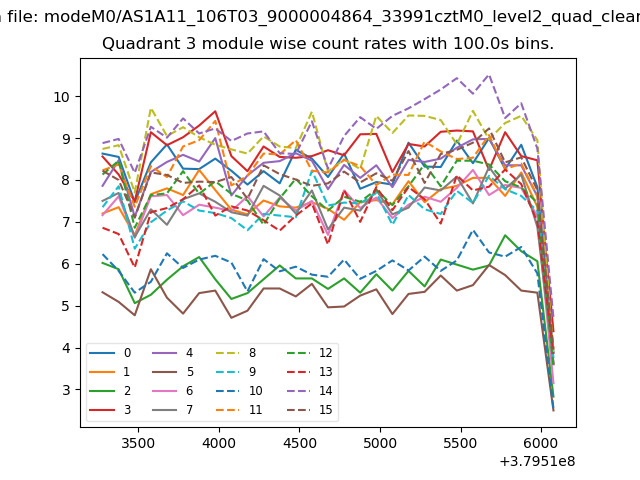

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

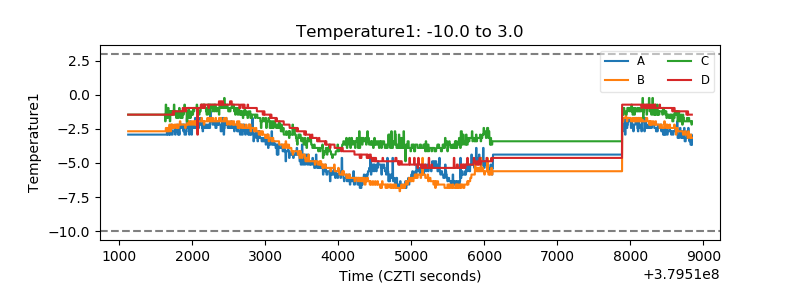

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

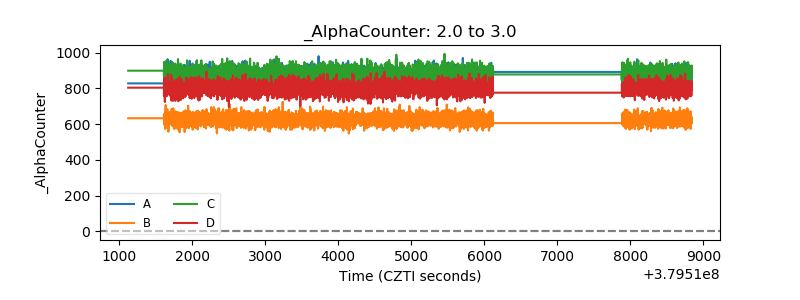

| Alpha Counter |  |

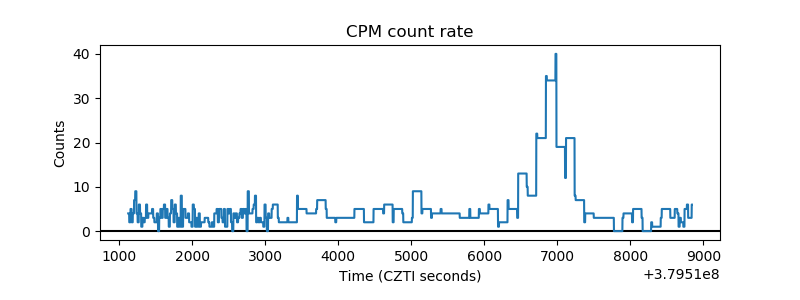

| _CPM_Rate |  |

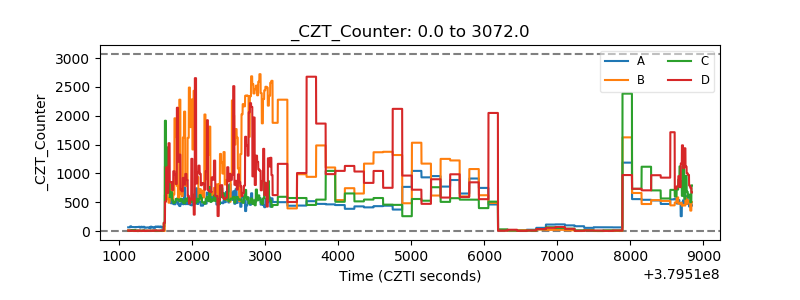

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

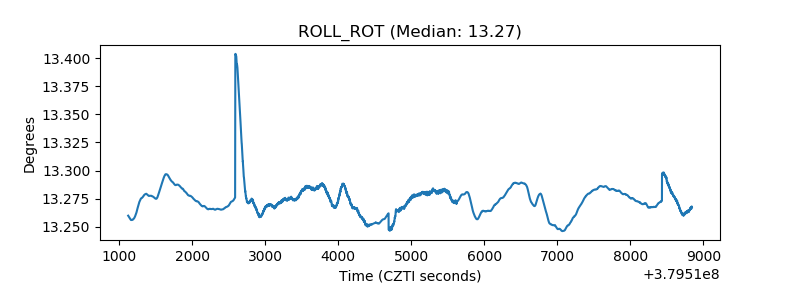

| _ROLL_ROT |  |
| _Roll_DEC |  |

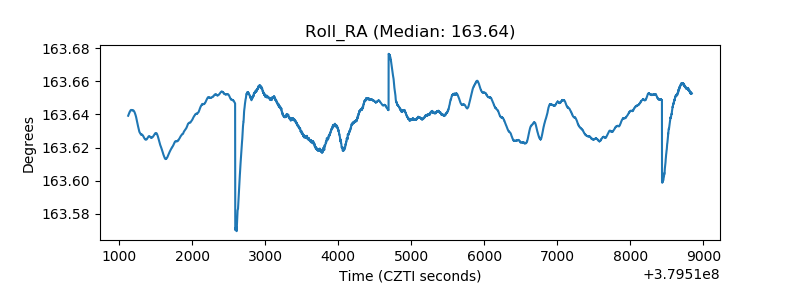

| _Roll_RA |  |

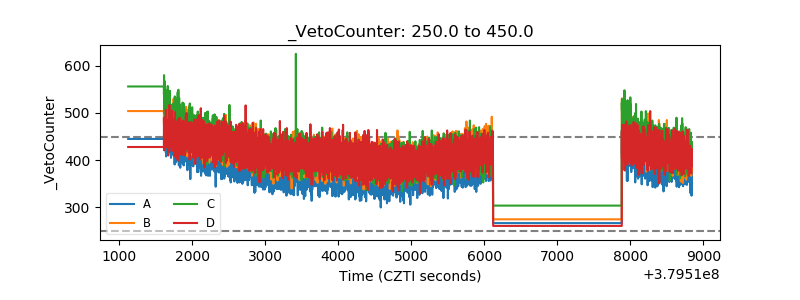

| Veto Counter |  |
