| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T03_9000004864_34016cztM0_level2.evt | modeM0/AS1A11_106T03_9000004864_34016cztM0_level2_quad_clean.evt |
| Size (bytes) | 426,458,880 | 79,724,160 |
| Size | 406.7 MB | 76.0 MB |
| Events in quadrant A | 2,676,940 | 526,085 |
| Events in quadrant B | 3,265,008 | 521,116 |
| Events in quadrant C | 3,054,607 | 506,513 |
| Events in quadrant D | 3,563,303 | 493,724 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 24 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10777 | 3 |
| B | 0 | 12767 | 2 |
| C | 0 | 12087 | 2 |
| D | 0 | 14164 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5231 | 6 | 0.114701% |
| B | 5231 | 150 | 2.867521% |
| C | 5231 | 59 | 1.127891% |
| D | 5231 | 43 | 0.822023% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7292 | 5231 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7292 | 5231 | 111 | 111 | 1.52% | 2.12% |  |
| C | 7292 | 5231 | 61 | 61 | 0.84% | 1.17% |  |
| D | 7292 | 5231 | 31 | 31 | 0.43% | 0.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 33852 | 249.85 | 675 | 664 | 132.8 |
| A | 10 | 83 | 17572 | 127.29 | 675 | 664 | 132.8 |
| A | 13 | 6 | 15565 | 112.18 | 675 | 664 | 132.8 |
| B | 5 | 172 | 469745 | 3831.48 | 653 | 638 | 122.4 |
| B | 0 | 189 | 78362 | 634.82 | 653 | 638 | 122.4 |
| B | 5 | 255 | 44947 | 361.9 | 653 | 638 | 122.4 |
| C | 15 | 214 | 245260 | 1704.41 | 631 | 638 | 143.5 |
| C | 0 | 10 | 196447 | 1364.31 | 631 | 638 | 143.5 |
| C | 3 | 233 | 104975 | 726.97 | 631 | 638 | 143.5 |
| D | 8 | 195 | 777510 | 4489.76 | 638 | 625 | 173.0 |
| D | 13 | 249 | 77816 | 446.1 | 638 | 625 | 173.0 |
| D | 2 | 250 | 60398 | 345.44 | 638 | 625 | 173.0 |

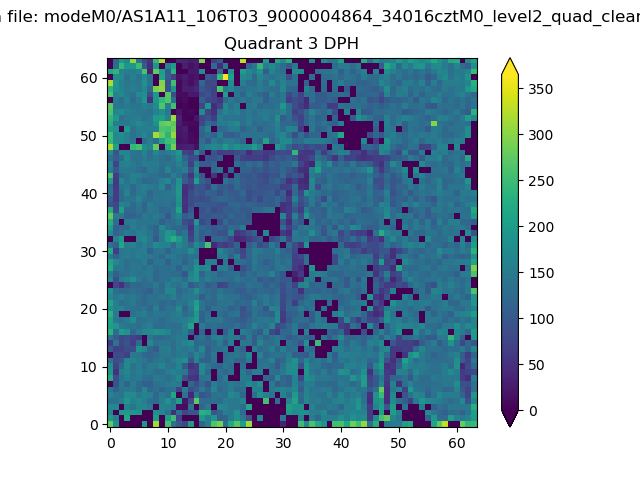

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

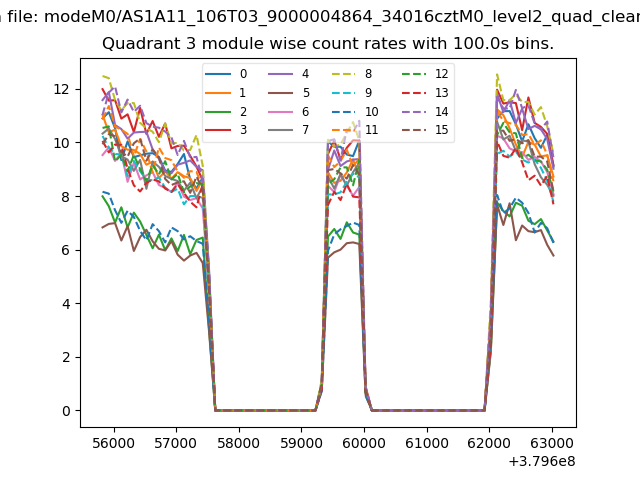

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

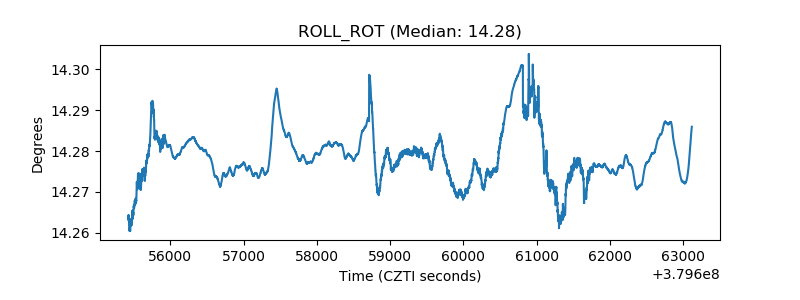

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

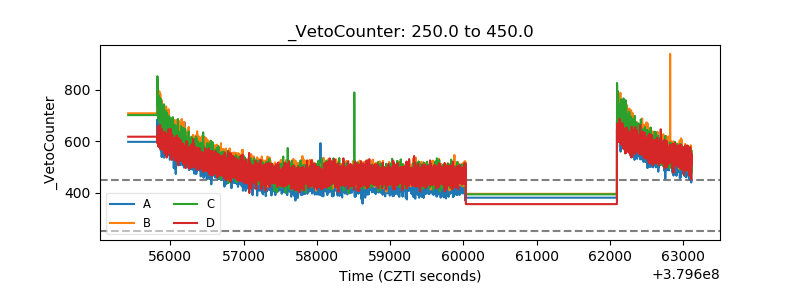

| Veto Counter |  |
