| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000004866_34025cztM0_level2.evt | modeM0/AS1A06_003T04_9000004866_34025cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,455,114,240 | 183,513,600 |
| Size | 1.4 GB | 175.0 MB |
| Events in quadrant A | 8,217,751 | 1,165,470 |
| Events in quadrant B | 12,655,884 | 1,105,204 |
| Events in quadrant C | 8,932,049 | 1,130,110 |
| Events in quadrant D | 13,209,266 | 1,077,345 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 44 | 0 |
| B | 0 | 44 | 0 |
| C | 0 | 44 | 0 |
| D | 0 | 45 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34695 | 4 |
| B | 0 | 47957 | 3 |
| C | 0 | 35963 | 3 |
| D | 0 | 50270 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15637 | 190 | 1.215067% |
| B | 15637 | 1549 | 9.905992% |
| C | 15637 | 172 | 1.099955% |
| D | 15637 | 978 | 6.254397% |

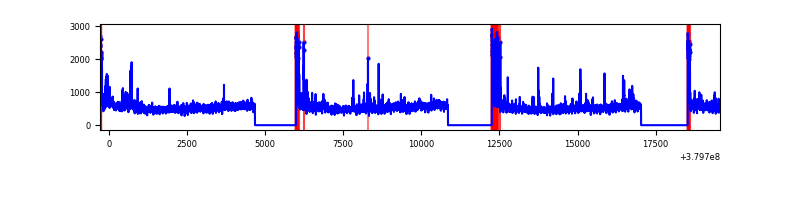

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19845 | 15638 | 117 | 117 | 0.59% | 0.75% |  |
| B | 19846 | 15637 | 1362 | 1362 | 6.86% | 8.71% |  |
| C | 19846 | 15639 | 140 | 140 | 0.71% | 0.90% |  |
| D | 19846 | 15637 | 916 | 916 | 4.62% | 5.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1120254 | 3107.89 | 1808 | 1772 | 359.9 |
| A | 13 | 6 | 48751 | 130.54 | 1808 | 1772 | 359.9 |
| A | 10 | 83 | 40460 | 107.5 | 1808 | 1772 | 359.9 |
| B | 5 | 172 | 2329913 | 6961.05 | 1748 | 1699 | 334.5 |
| B | 5 | 31 | 1318421 | 3936.83 | 1748 | 1699 | 334.5 |
| B | 5 | 15 | 821673 | 2451.61 | 1748 | 1699 | 334.5 |
| C | 15 | 214 | 719079 | 1765.55 | 1762 | 1775 | 406.3 |
| C | 0 | 10 | 629635 | 1545.39 | 1762 | 1775 | 406.3 |
| C | 3 | 233 | 623769 | 1530.96 | 1762 | 1775 | 406.3 |
| D | 2 | 249 | 1979929 | 4167.83 | 1724 | 1693 | 474.6 |
| D | 8 | 195 | 1717492 | 3614.92 | 1724 | 1693 | 474.6 |
| D | 13 | 249 | 485520 | 1019.35 | 1724 | 1693 | 474.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

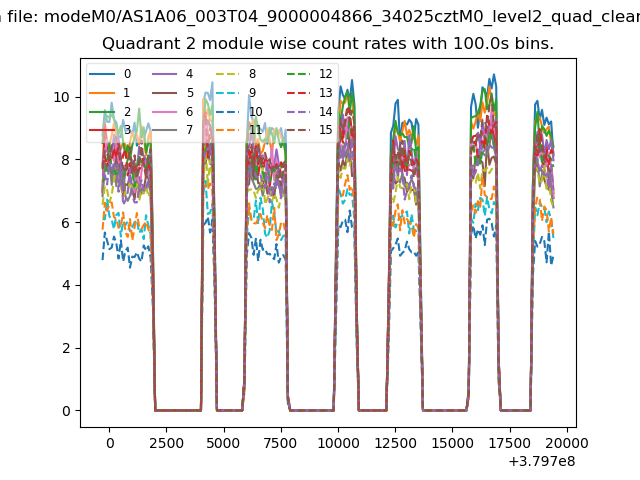

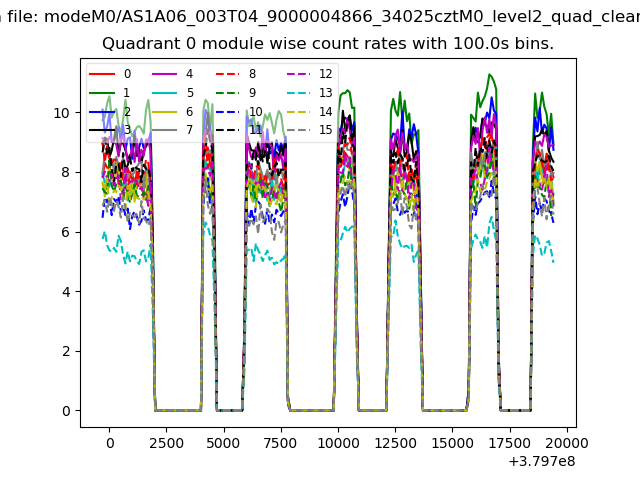

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

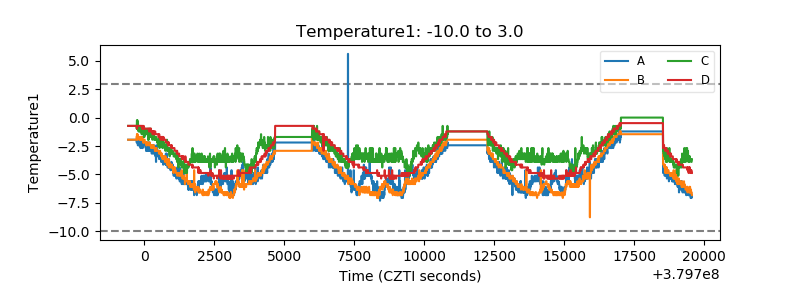

| Temperature 1 |  |

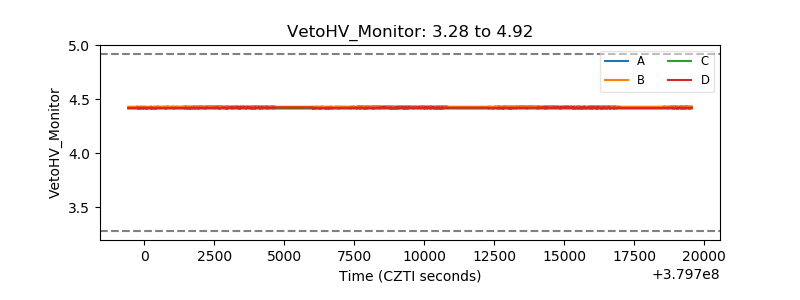

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

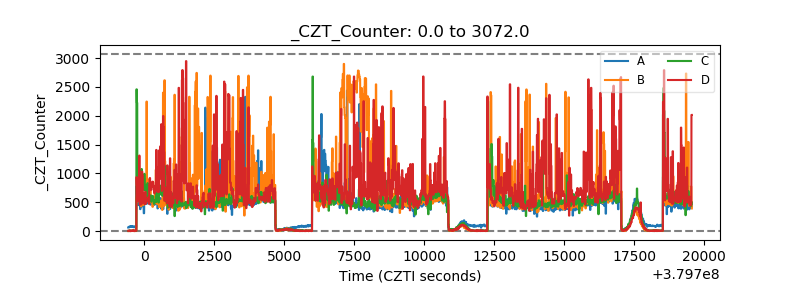

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

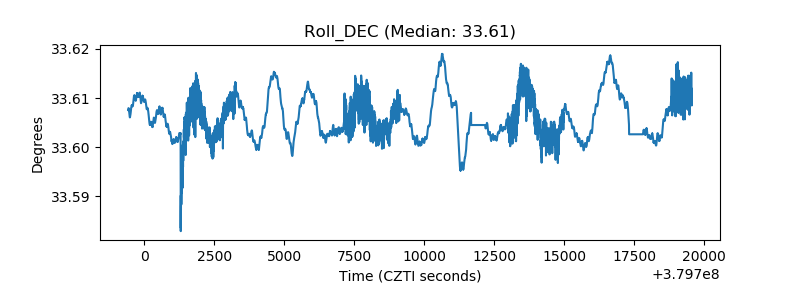

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
