| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000004866_34037cztM0_level2.evt | modeM0/AS1A06_003T04_9000004866_34037cztM0_level2_quad_clean.evt |
| Size (bytes) | 578,730,240 | 78,094,080 |
| Size | 551.9 MB | 74.5 MB |
| Events in quadrant A | 2,887,182 | 503,873 |
| Events in quadrant B | 4,340,884 | 488,350 |
| Events in quadrant C | 3,980,710 | 479,997 |
| Events in quadrant D | 5,905,665 | 467,019 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12621 | 3 |
| B | 0 | 16803 | 2 |
| C | 0 | 15702 | 2 |
| D | 0 | 21766 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6091 | 40 | 0.656707% |
| B | 6091 | 377 | 6.189460% |
| C | 6091 | 114 | 1.871614% |
| D | 6091 | 775 | 12.723691% |

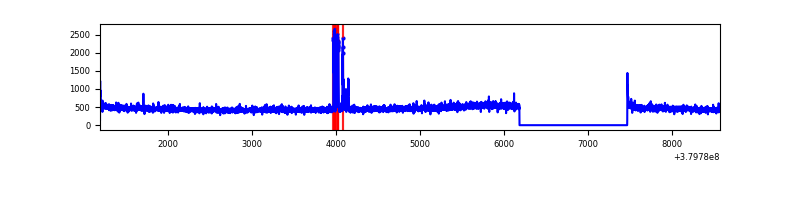

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

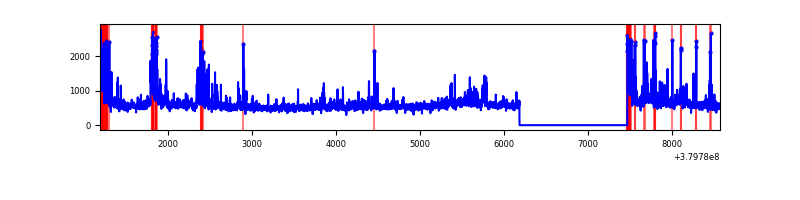

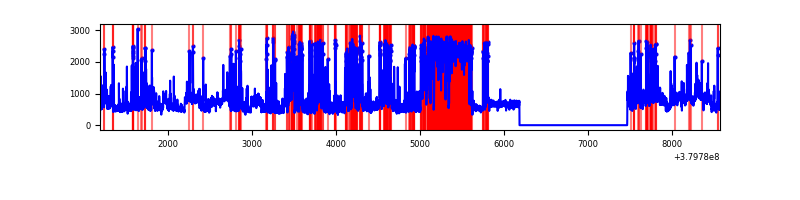

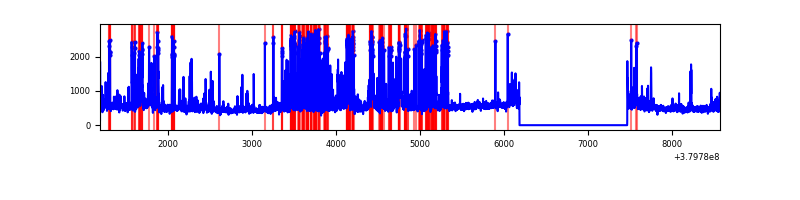

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7373 | 6092 | 30 | 30 | 0.41% | 0.49% |  |
| B | 7373 | 6092 | 306 | 306 | 4.15% | 5.02% |  |
| C | 7373 | 6092 | 91 | 91 | 1.23% | 1.49% |  |
| D | 7373 | 6092 | 748 | 748 | 10.15% | 12.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 119132 | 827.2 | 706 | 691 | 143.2 |
| A | 10 | 83 | 19688 | 132.68 | 706 | 691 | 143.2 |
| A | 13 | 6 | 18392 | 123.63 | 706 | 691 | 143.2 |
| B | 5 | 172 | 1111108 | 8465.47 | 685 | 668 | 131.2 |
| B | 15 | 85 | 131275 | 995.69 | 685 | 668 | 131.2 |
| B | 0 | 189 | 120277 | 911.84 | 685 | 668 | 131.2 |
| C | 3 | 233 | 456325 | 2896.91 | 682 | 686 | 157.3 |
| C | 0 | 207 | 358753 | 2276.56 | 682 | 686 | 157.3 |
| C | 15 | 214 | 280740 | 1780.56 | 682 | 686 | 157.3 |
| D | 2 | 249 | 1776225 | 11158.93 | 652 | 634 | 159.1 |
| D | 8 | 195 | 729028 | 4577.69 | 652 | 634 | 159.1 |
| D | 13 | 249 | 211879 | 1327.6 | 652 | 634 | 159.1 |

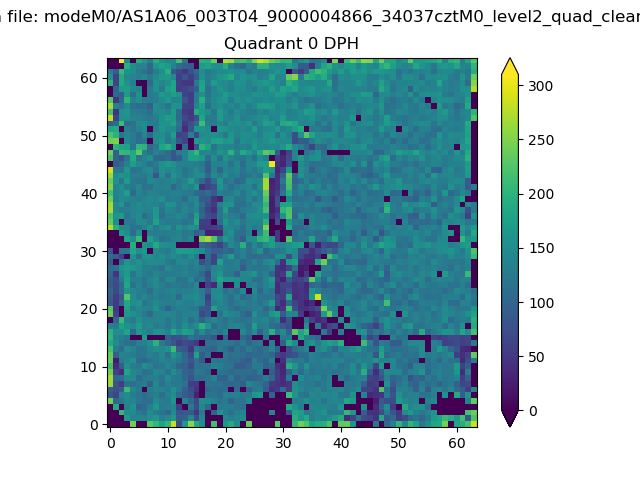

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

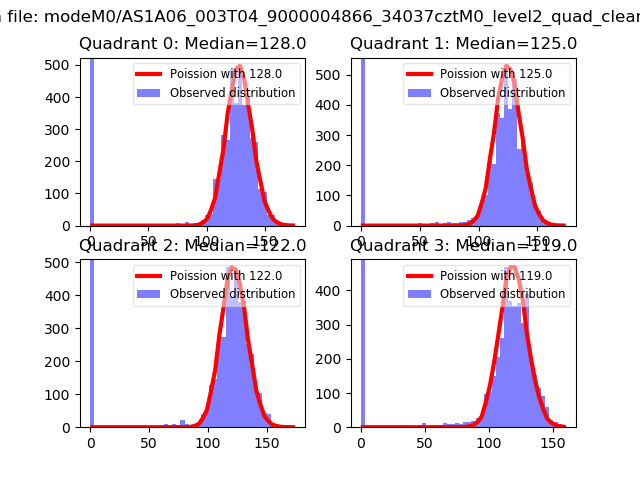

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

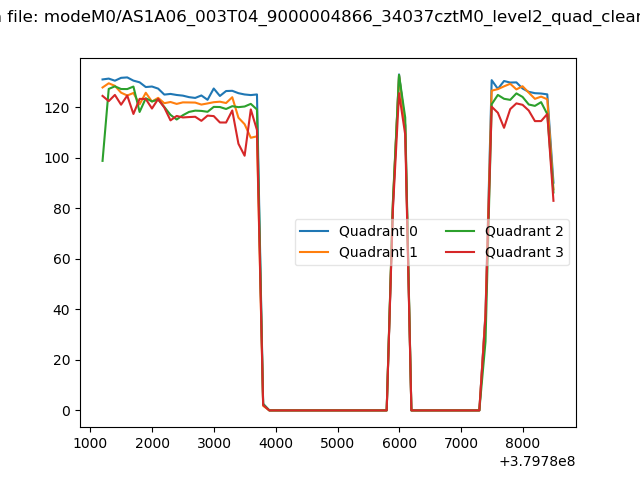

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

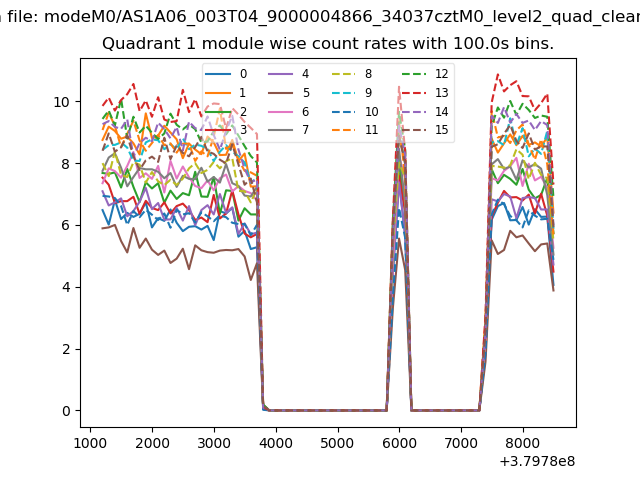

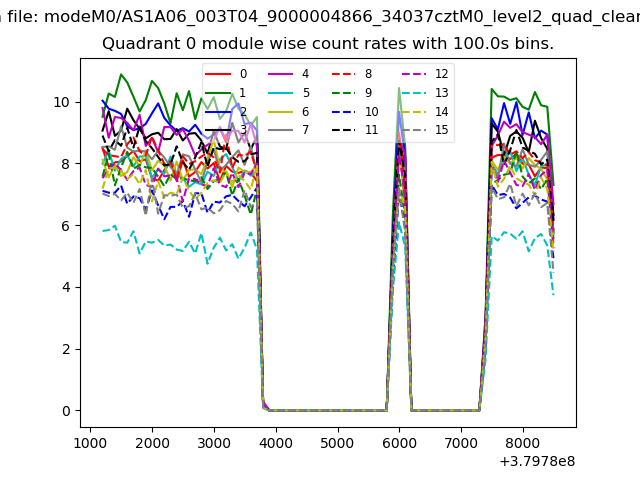

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

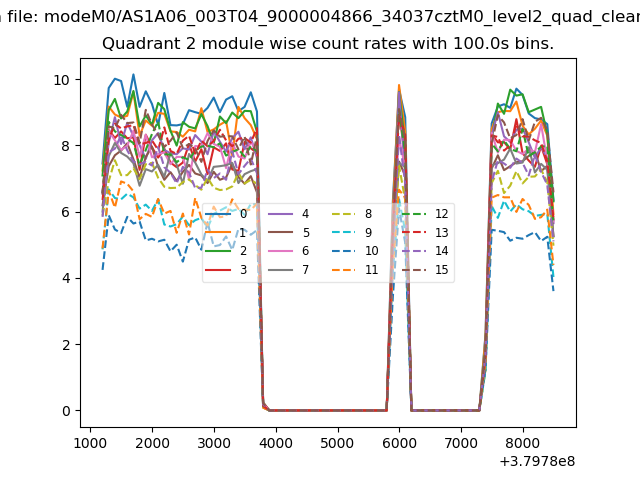

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

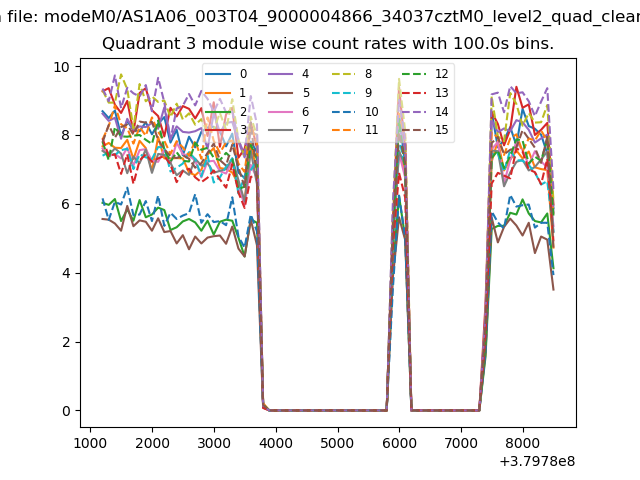

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

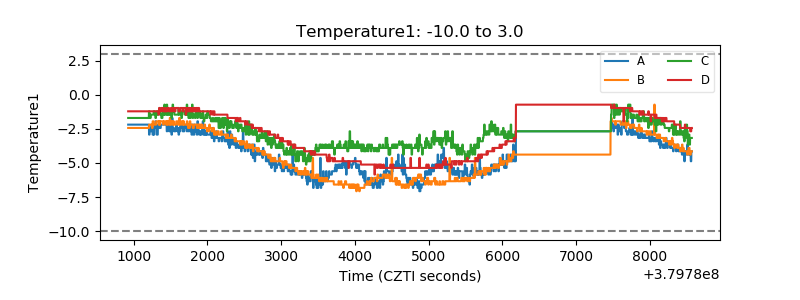

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

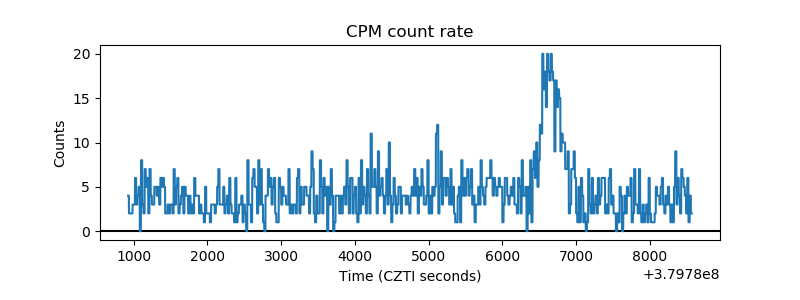

| _CPM_Rate |  |

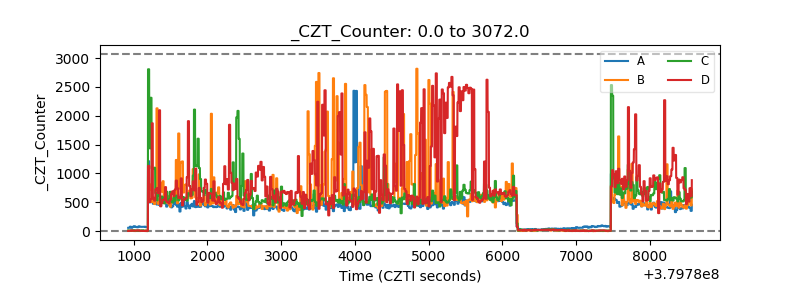

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

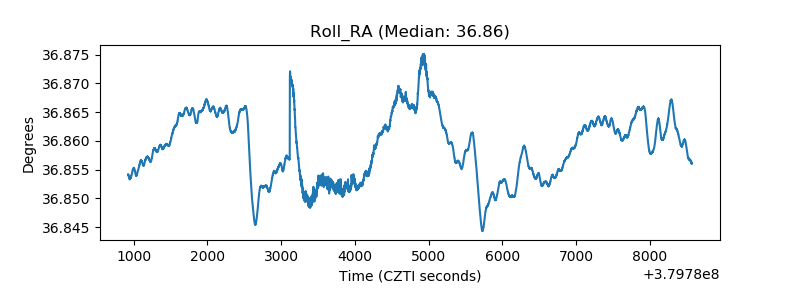

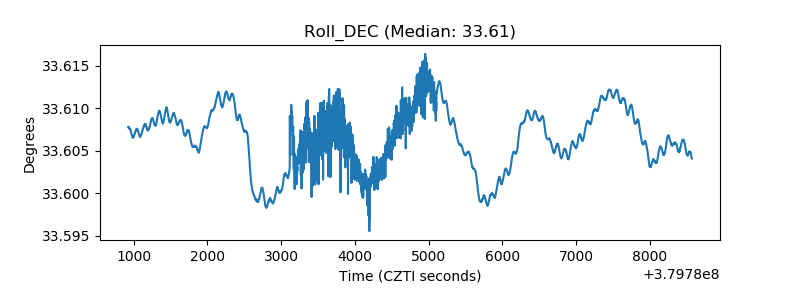

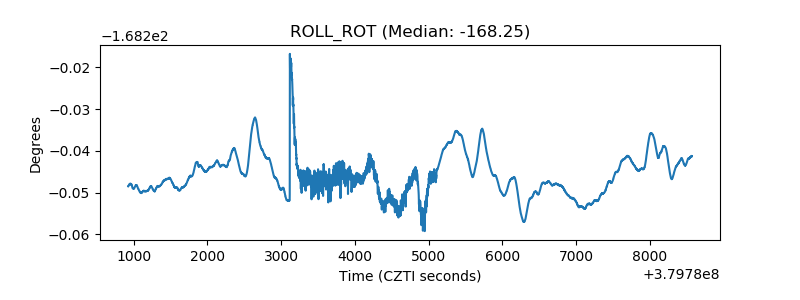

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

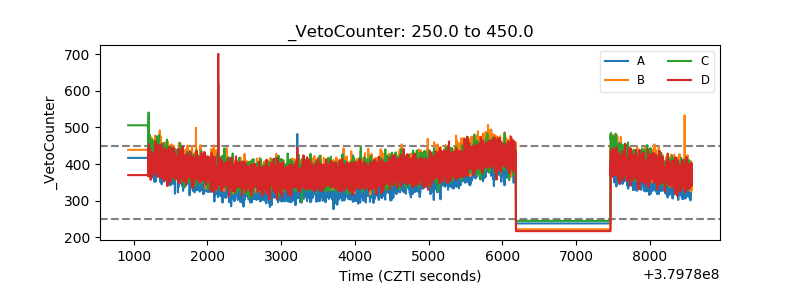

| Veto Counter |  |
