| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000004866_34039cztM0_level2.evt | modeM0/AS1A06_003T04_9000004866_34039cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,136,764,800 | 126,685,440 |
| Size | 1.1 GB | 120.8 MB |
| Events in quadrant A | 10,387,706 | 727,823 |
| Events in quadrant B | 7,124,822 | 806,796 |
| Events in quadrant C | 7,380,523 | 790,666 |
| Events in quadrant D | 8,809,780 | 766,241 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38103 | 4 |
| B | 0 | 28192 | 3 |
| C | 0 | 29118 | 3 |
| D | 0 | 33674 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 218 | 0 |
| B | 0 | 218 | 0 |
| C | 0 | 218 | 0 |
| D | 0 | 218 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10752 | 2664 | 24.776786% |
| B | 10752 | 414 | 3.850446% |
| C | 10752 | 240 | 2.232143% |
| D | 10752 | 503 | 4.678199% |

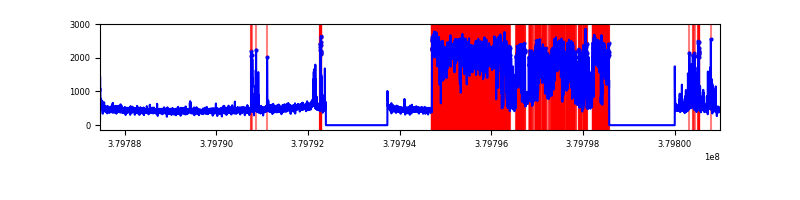

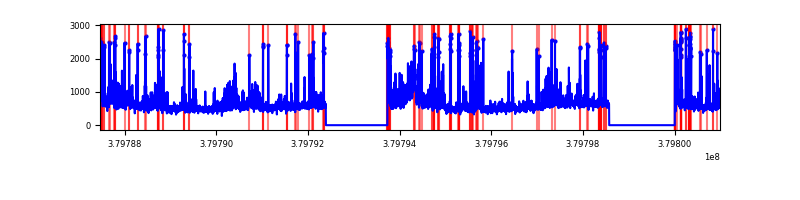

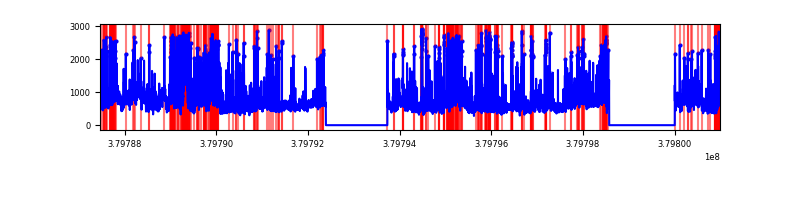

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13527 | 10754 | 1757 | 1757 | 12.99% | 16.34% |  |
| B | 13527 | 10754 | 307 | 307 | 2.27% | 2.85% |  |
| C | 13527 | 10754 | 198 | 198 | 1.46% | 1.84% |  |
| D | 13527 | 10754 | 507 | 507 | 3.75% | 4.71% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 6113820 | 28227.2 | 1088 | 1068 | 216.6 |
| A | 10 | 83 | 30058 | 133.87 | 1088 | 1068 | 216.6 |
| A | 13 | 6 | 24035 | 106.06 | 1088 | 1068 | 216.6 |
| B | 5 | 172 | 1391047 | 5969.94 | 1223 | 1191 | 232.8 |
| B | 0 | 190 | 301485 | 1289.87 | 1223 | 1191 | 232.8 |
| B | 0 | 189 | 231181 | 987.89 | 1223 | 1191 | 232.8 |
| C | 3 | 233 | 1076960 | 3877.75 | 1206 | 1215 | 277.4 |
| C | 0 | 10 | 620643 | 2232.86 | 1206 | 1215 | 277.4 |
| C | 15 | 214 | 489831 | 1761.32 | 1206 | 1215 | 277.4 |
| D | 2 | 249 | 1254755 | 4224.5 | 1203 | 1169 | 296.7 |
| D | 8 | 195 | 1183998 | 3986.05 | 1203 | 1169 | 296.7 |
| D | 13 | 249 | 536560 | 1804.23 | 1203 | 1169 | 296.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

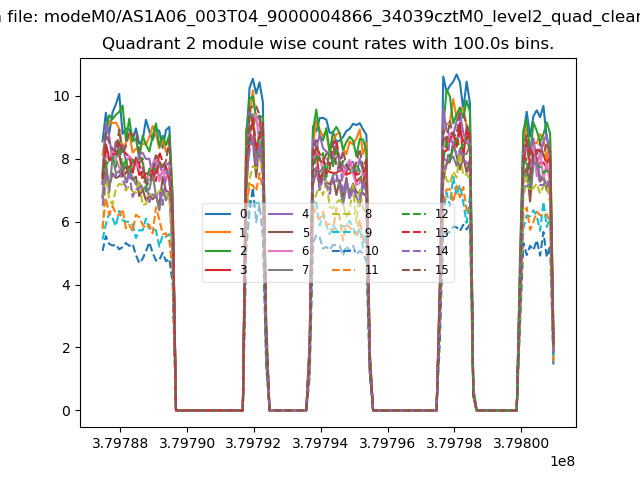

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

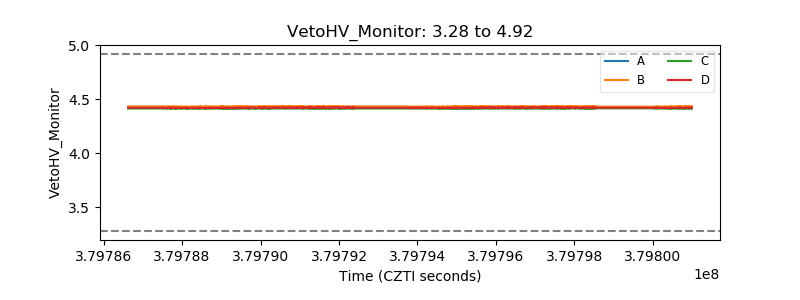

| Veto HV Monitor |  |

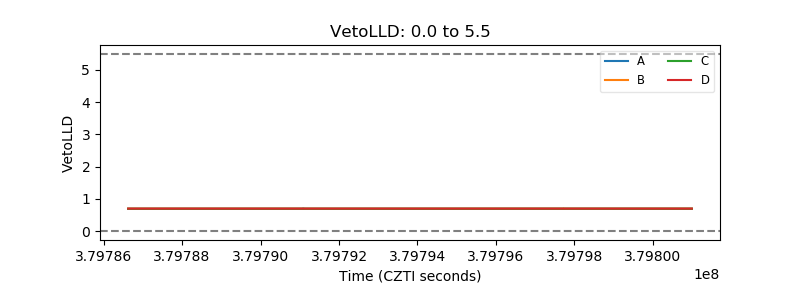

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

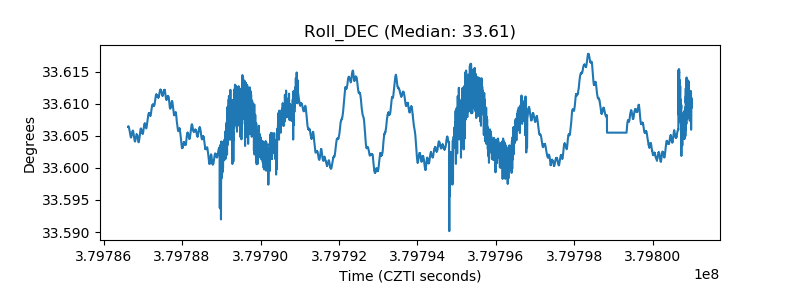

| _Roll_DEC |  |
| _Roll_RA |  |

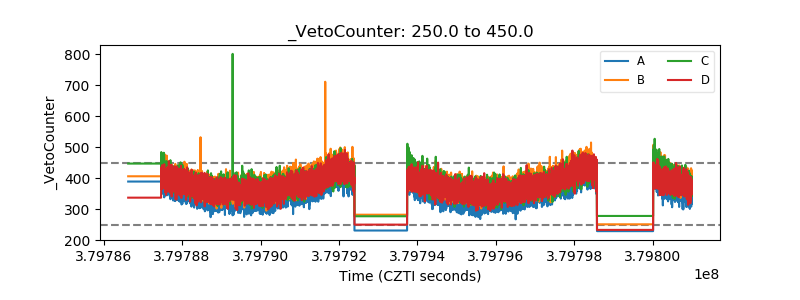

| Veto Counter |  |
