| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000004866_34041cztM0_level2.evt | modeM0/AS1A06_003T04_9000004866_34041cztM0_level2_quad_clean.evt |
| Size (bytes) | 534,867,840 | 62,012,160 |
| Size | 510.1 MB | 59.1 MB |
| Events in quadrant A | 3,189,391 | 389,527 |
| Events in quadrant B | 5,419,965 | 367,850 |
| Events in quadrant C | 3,229,699 | 379,631 |
| Events in quadrant D | 3,993,366 | 361,779 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12913 | 3 |
| B | 0 | 19678 | 2 |
| C | 0 | 12839 | 2 |
| D | 0 | 15603 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5405 | 145 | 2.682701% |
| B | 5405 | 753 | 13.931545% |
| C | 5405 | 99 | 1.831637% |
| D | 5405 | 243 | 4.495837% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

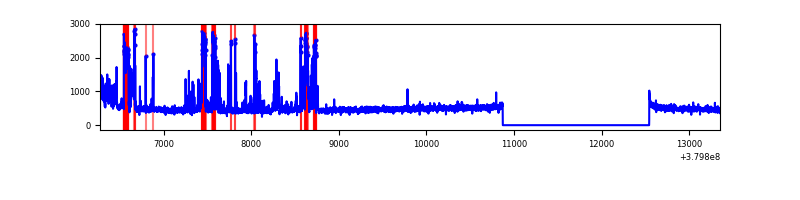

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7077 | 5406 | 128 | 128 | 1.81% | 2.37% |  |
| B | 7077 | 5406 | 600 | 600 | 8.48% | 11.10% |  |
| C | 7077 | 5406 | 76 | 76 | 1.07% | 1.41% |  |
| D | 7077 | 5406 | 228 | 228 | 3.22% | 4.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 719164 | 5659.58 | 631 | 621 | 127.0 |
| A | 10 | 83 | 18723 | 142.58 | 631 | 621 | 127.0 |
| A | 13 | 254 | 9246 | 67.93 | 631 | 621 | 127.0 |
| B | 5 | 31 | 1365266 | 11646.82 | 611 | 595 | 117.2 |
| B | 5 | 172 | 666718 | 5685.04 | 611 | 595 | 117.2 |
| B | 5 | 15 | 517008 | 4407.34 | 611 | 595 | 117.2 |
| C | 15 | 214 | 250339 | 1735.74 | 617 | 621 | 143.9 |
| C | 0 | 10 | 250334 | 1735.7 | 617 | 621 | 143.9 |
| C | 3 | 233 | 231629 | 1605.69 | 617 | 621 | 143.9 |
| D | 2 | 249 | 446599 | 2712.84 | 608 | 596 | 164.4 |
| D | 12 | 6 | 372772 | 2263.79 | 608 | 596 | 164.4 |
| D | 8 | 195 | 336953 | 2045.91 | 608 | 596 | 164.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

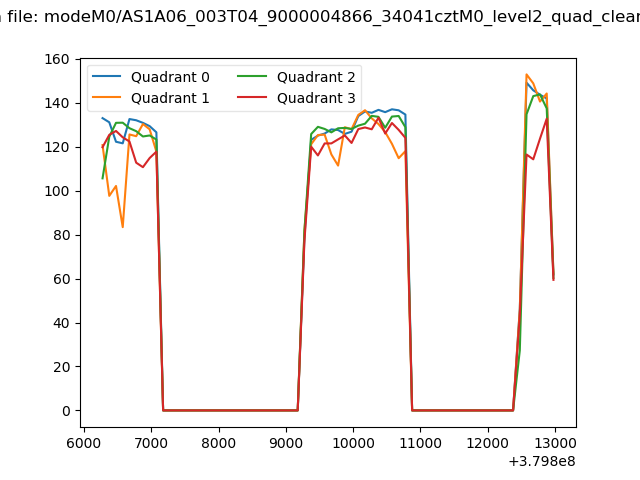

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

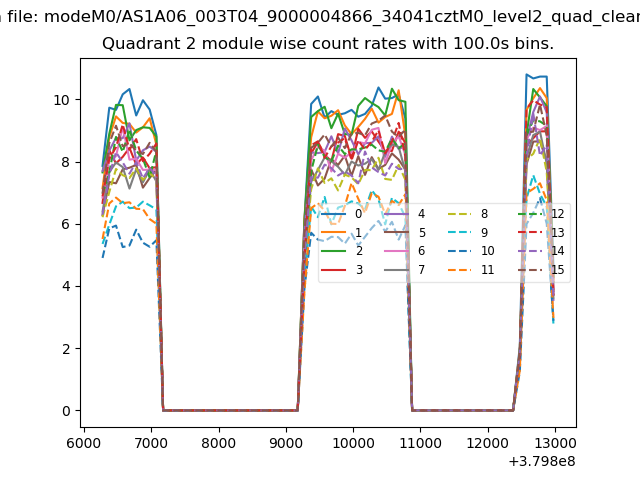

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

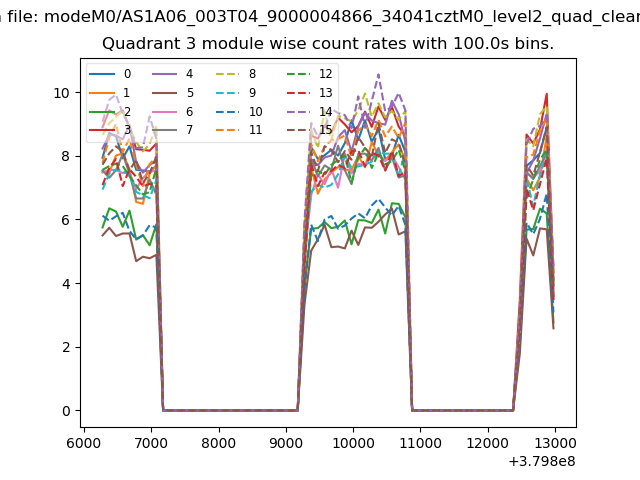

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

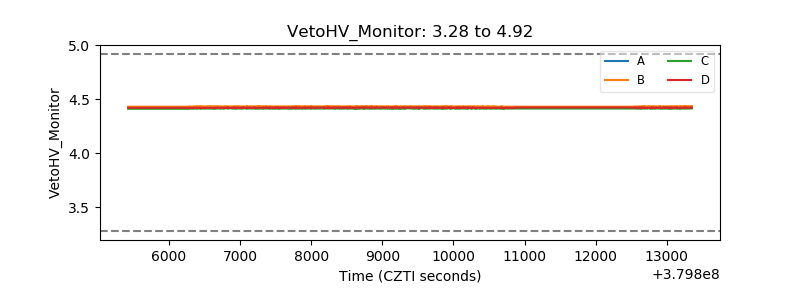

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

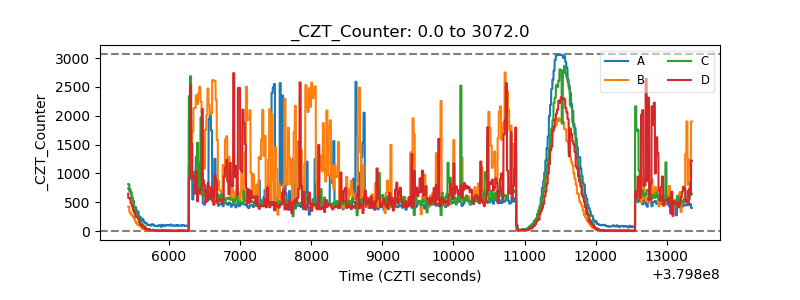

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

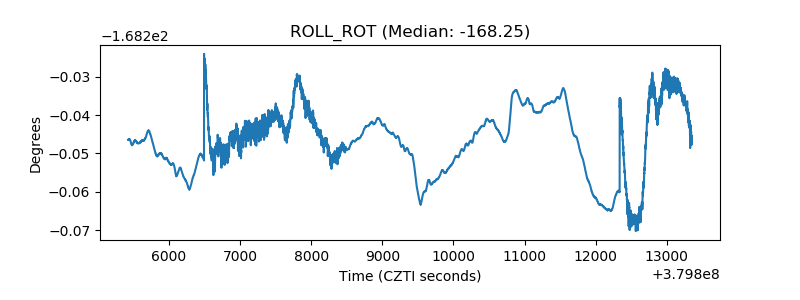

| _ROLL_ROT |  |

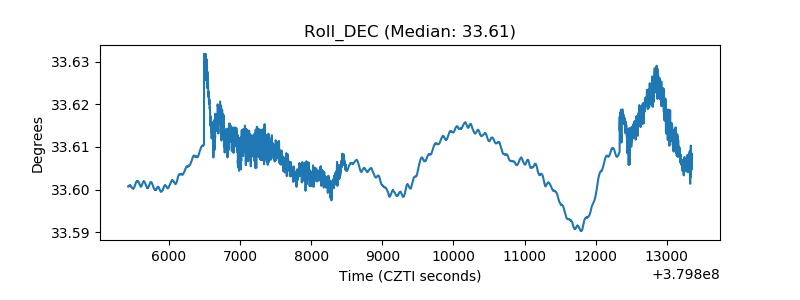

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
