| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000004866_34054cztM0_level2.evt | modeM0/AS1A06_003T04_9000004866_34054cztM0_level2_quad_clean.evt |
| Size (bytes) | 2,609,493,120 | 161,536,320 |
| Size | 2.4 GB | 154.1 MB |
| Events in quadrant A | 26,160,424 | 802,517 |
| Events in quadrant B | 26,176,434 | 909,798 |
| Events in quadrant C | 9,391,876 | 1,133,216 |
| Events in quadrant D | 16,257,557 | 963,097 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41 | 0 |
| B | 0 | 41 | 0 |
| C | 0 | 41 | 0 |
| D | 0 | 41 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88447 | 4 |
| B | 0 | 88566 | 3 |
| C | 0 | 37412 | 3 |
| D | 0 | 58991 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 320 | 0 |
| B | 0 | 320 | 0 |
| C | 0 | 320 | 0 |
| D | 0 | 320 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15616 | 7299 | 46.740523% |
| B | 15616 | 6912 | 44.262295% |
| C | 15616 | 229 | 1.466445% |
| D | 15616 | 2796 | 17.904713% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

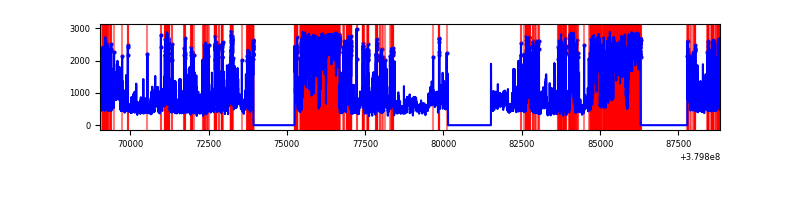

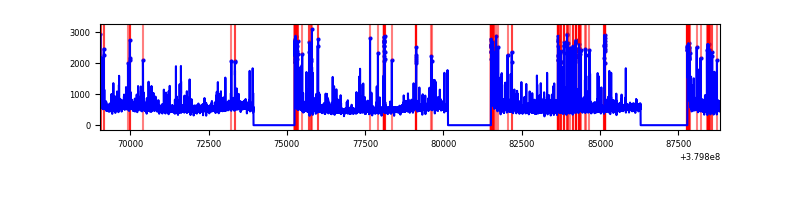

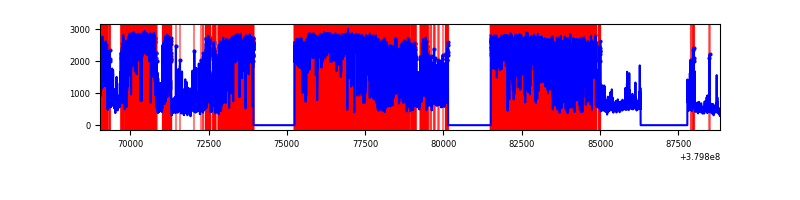

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19794 | 15617 | 7203 | 7203 | 36.39% | 46.12% |  |
| B | 19794 | 15617 | 6313 | 6313 | 31.89% | 40.42% |  |
| C | 19794 | 15619 | 227 | 227 | 1.15% | 1.45% |  |
| D | 19793 | 15617 | 2749 | 2749 | 13.89% | 17.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 20665158 | 73443.74 | 1414 | 1382 | 281.4 |
| A | 10 | 83 | 23583 | 78.91 | 1414 | 1382 | 281.4 |
| A | 13 | 254 | 23277 | 77.82 | 1414 | 1382 | 281.4 |
| B | 5 | 31 | 11437659 | 38994.01 | 1545 | 1506 | 293.3 |
| B | 5 | 15 | 5357282 | 18261.66 | 1545 | 1506 | 293.3 |
| B | 5 | 172 | 1712318 | 5833.38 | 1545 | 1506 | 293.3 |
| C | 0 | 10 | 939027 | 2326.43 | 1755 | 1768 | 402.9 |
| C | 15 | 214 | 688921 | 1705.62 | 1755 | 1768 | 402.9 |
| C | 3 | 233 | 484713 | 1198.75 | 1755 | 1768 | 402.9 |
| D | 2 | 250 | 3500935 | 8379.01 | 1616 | 1579 | 417.6 |
| D | 12 | 233 | 2811448 | 6728.07 | 1616 | 1579 | 417.6 |
| D | 8 | 195 | 1666573 | 3986.73 | 1616 | 1579 | 417.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

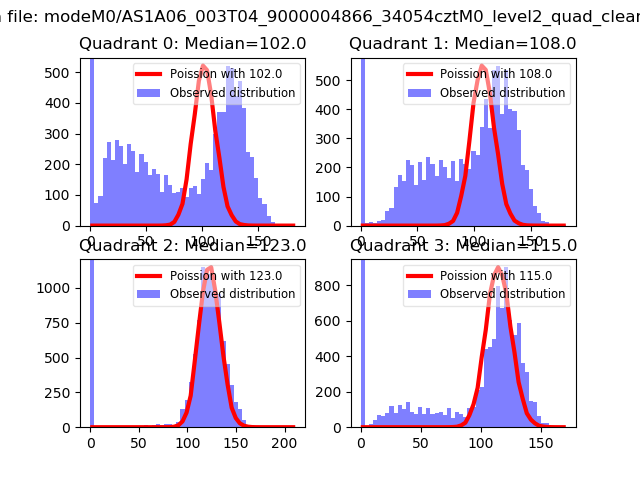

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

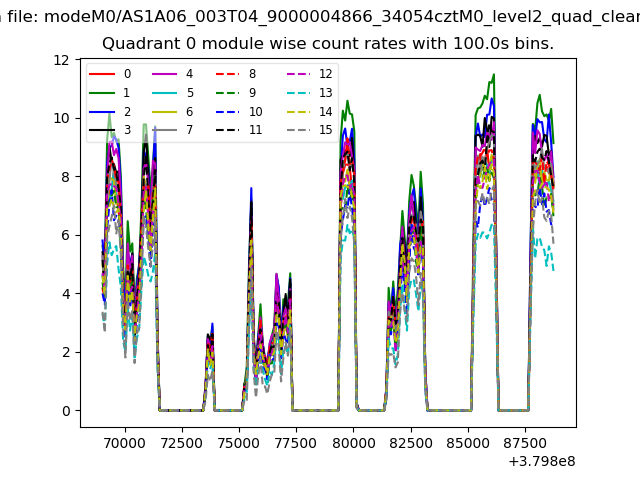

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

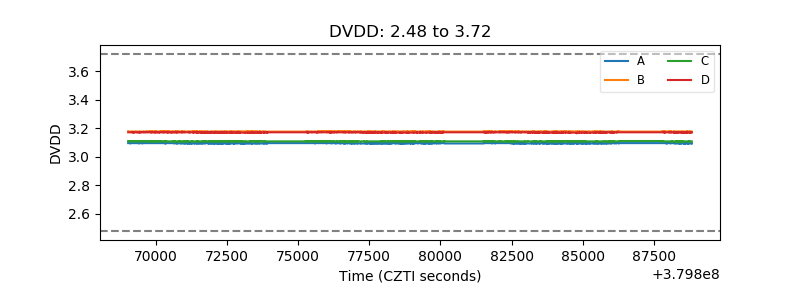

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

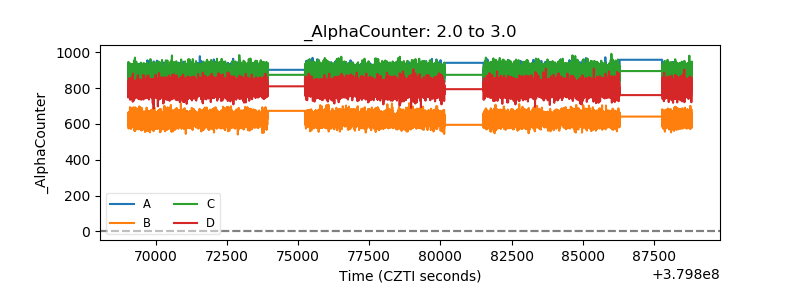

| Alpha Counter |  |
| _CPM_Rate |  |

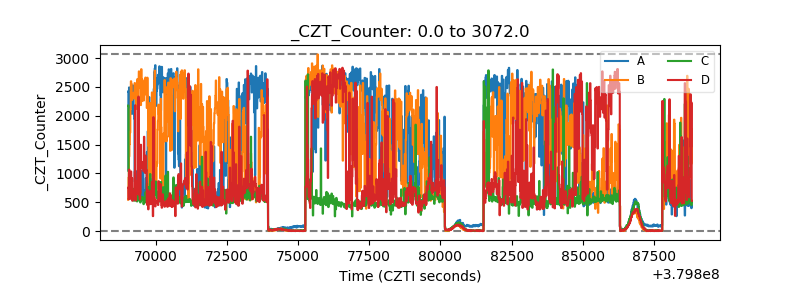

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
