| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A06_003T04_9000004866_34057cztM0_level2.evt | modeM0/AS1A06_003T04_9000004866_34057cztM0_level2_quad_clean.evt |
| Size (bytes) | 827,815,680 | 57,136,320 |
| Size | 789.5 MB | 54.5 MB |
| Events in quadrant A | 6,245,577 | 356,049 |
| Events in quadrant B | 10,666,097 | 266,165 |
| Events in quadrant C | 3,506,733 | 364,467 |
| Events in quadrant D | 4,273,043 | 348,732 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22411 | 2 |
| B | 0 | 35468 | 1 |
| C | 0 | 13785 | 1 |
| D | 0 | 16579 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5632 | 777 | 13.796165% |
| B | 5632 | 3831 | 68.022017% |
| C | 5632 | 125 | 2.219460% |
| D | 5632 | 262 | 4.651989% |

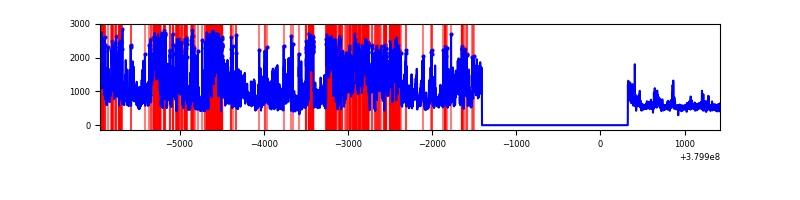

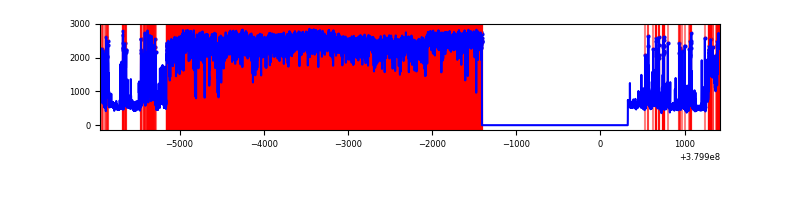

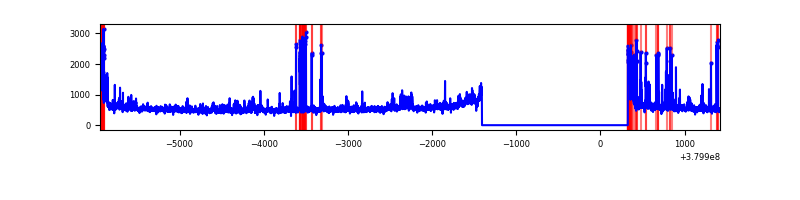

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

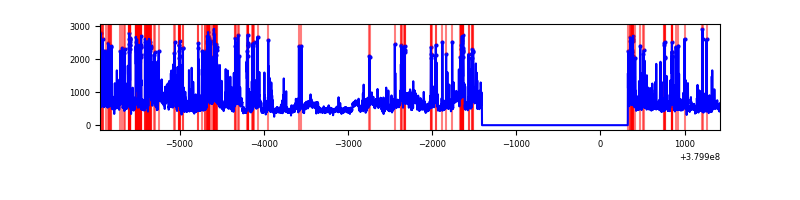

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7365 | 5633 | 642 | 642 | 8.72% | 11.40% |  |
| B | 7364 | 5631 | 3633 | 3633 | 49.33% | 64.52% |  |
| C | 7365 | 5633 | 103 | 103 | 1.40% | 1.83% |  |
| D | 7365 | 5633 | 231 | 231 | 3.14% | 4.10% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 3694856 | 28286.14 | 651 | 638 | 130.6 |
| A | 10 | 83 | 18817 | 139.19 | 651 | 638 | 130.6 |
| A | 13 | 6 | 15909 | 116.93 | 651 | 638 | 130.6 |
| B | 5 | 31 | 3688578 | 39171.81 | 489 | 477 | 94.2 |
| B | 5 | 15 | 3025240 | 32126.41 | 489 | 477 | 94.2 |
| B | 5 | 14 | 1214369 | 12892.91 | 489 | 477 | 94.2 |
| C | 0 | 10 | 297961 | 1964.88 | 652 | 656 | 151.3 |
| C | 15 | 214 | 246062 | 1621.88 | 652 | 656 | 151.3 |
| C | 0 | 207 | 222208 | 1464.23 | 652 | 656 | 151.3 |
| D | 2 | 250 | 492592 | 2907.3 | 642 | 628 | 169.2 |
| D | 8 | 195 | 473488 | 2794.4 | 642 | 628 | 169.2 |
| D | 13 | 249 | 308635 | 1820.19 | 642 | 628 | 169.2 |

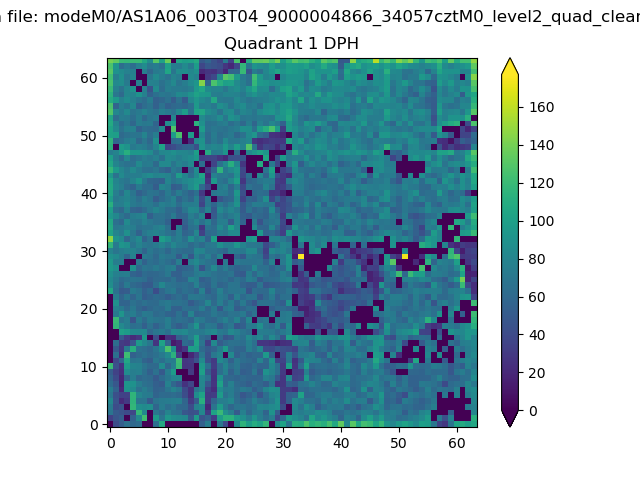

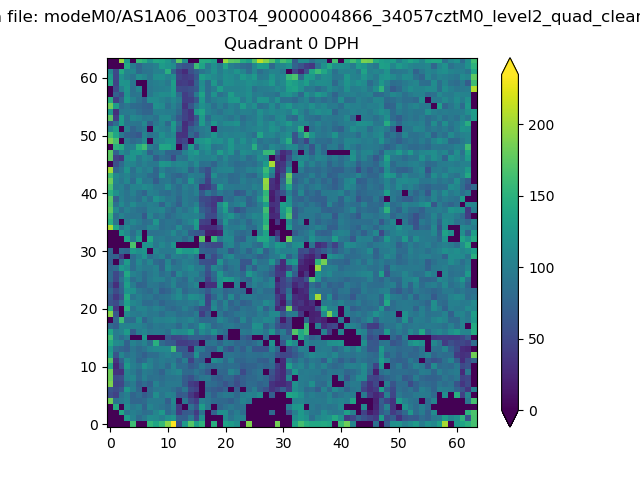

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

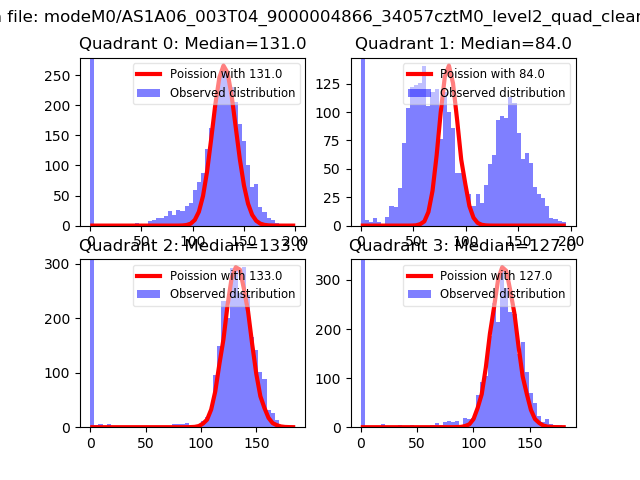

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

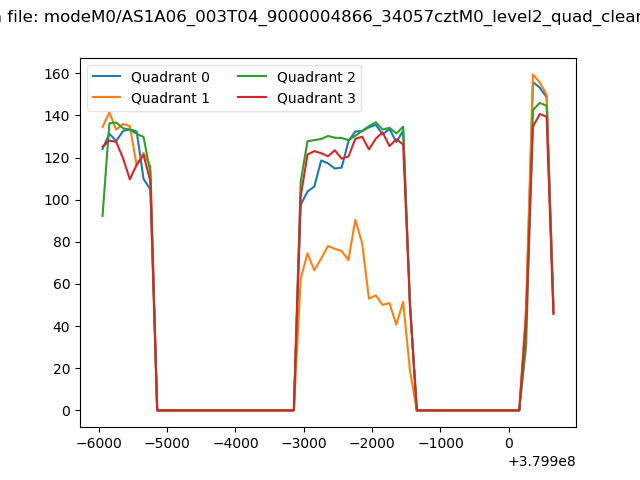

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

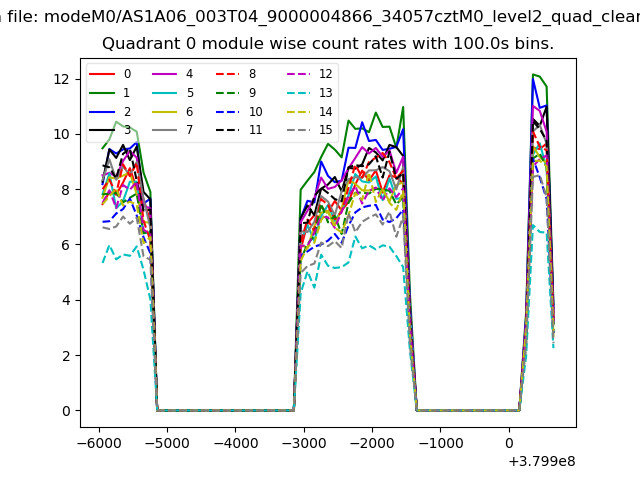

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

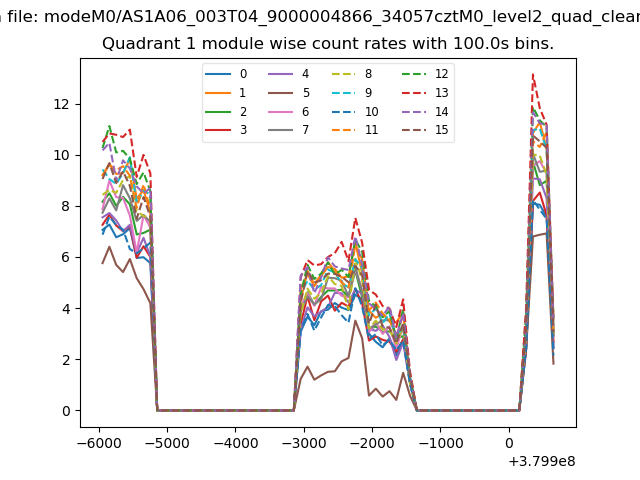

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

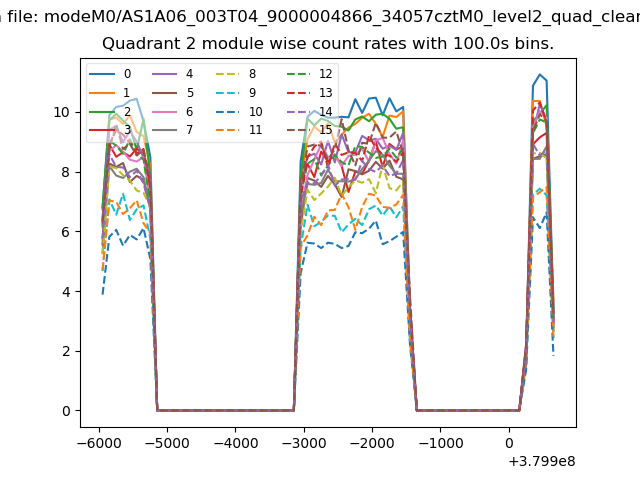

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

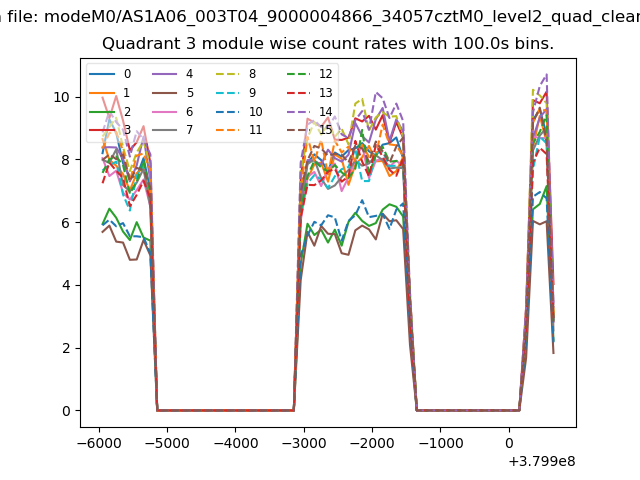

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

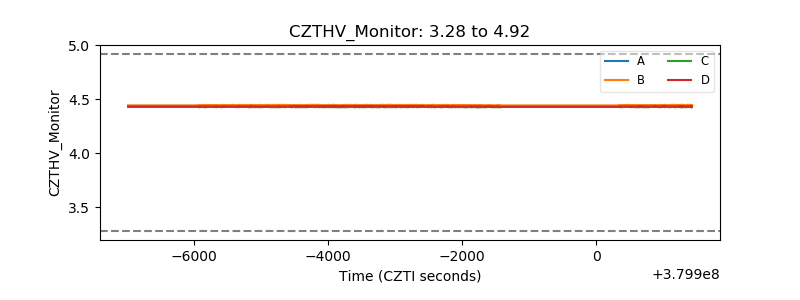

| CZT HV Monitor |  |

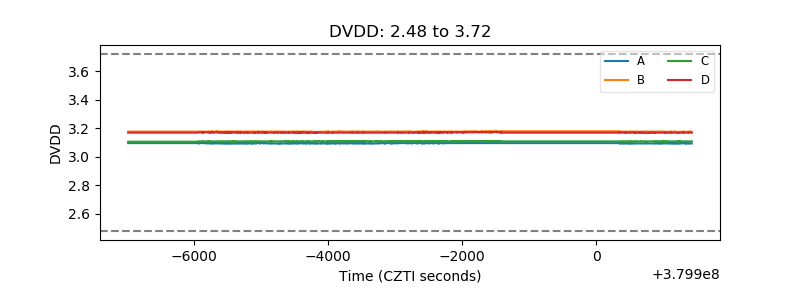

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

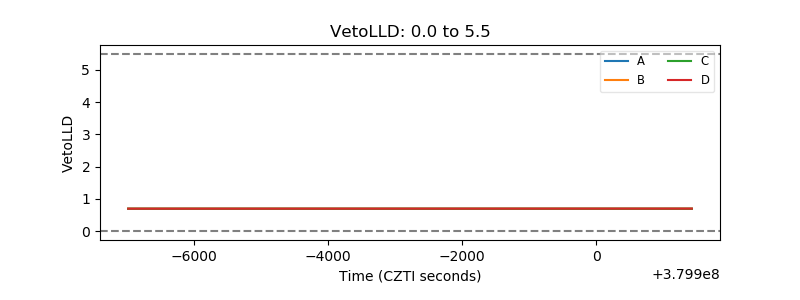

| Veto LLD |  |

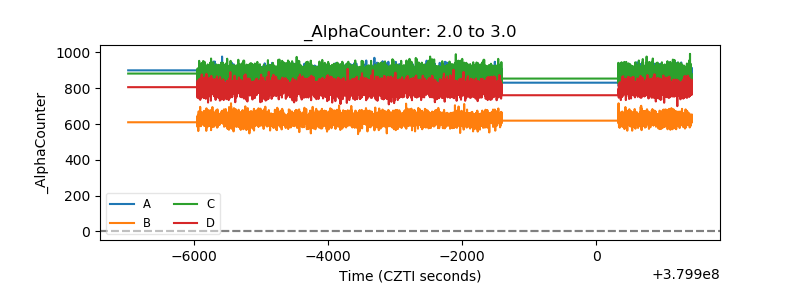

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

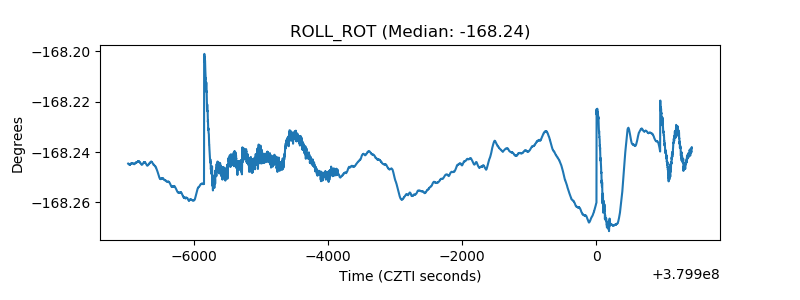

| _ROLL_ROT |  |

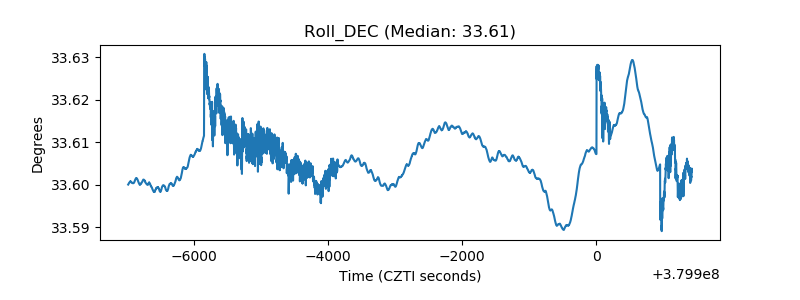

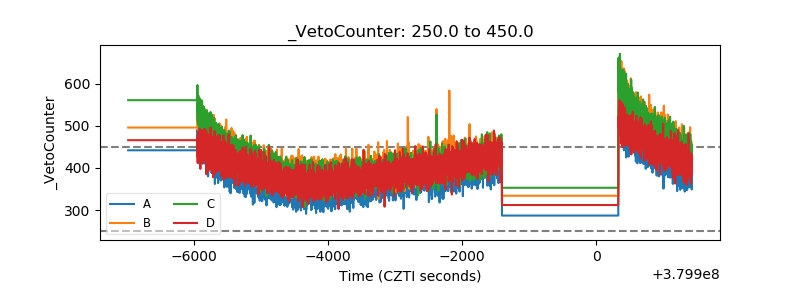

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
