| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T04_9000004868_34066cztM0_level2.evt | modeM0/AS1C07_001T04_9000004868_34066cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,473,920 | 78,710,400 |
| Size | 560.3 MB | 75.1 MB |
| Events in quadrant A | 4,763,308 | 494,678 |
| Events in quadrant B | 4,832,066 | 504,960 |
| Events in quadrant C | 3,204,493 | 501,997 |
| Events in quadrant D | 4,596,251 | 472,664 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18037 | 2 |
| B | 0 | 18112 | 1 |
| C | 0 | 12853 | 1 |
| D | 0 | 17693 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5852 | 373 | 6.373889% |
| B | 5852 | 582 | 9.945318% |
| C | 5852 | 71 | 1.213260% |
| D | 5852 | 263 | 4.494190% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

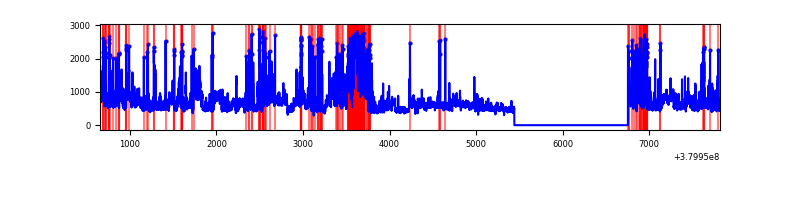

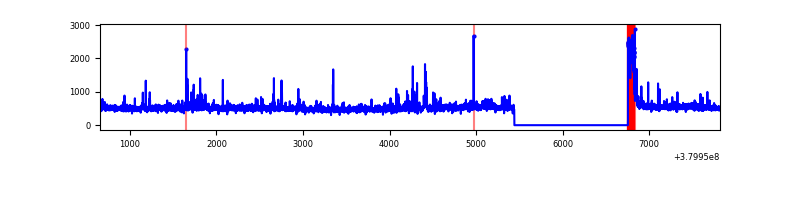

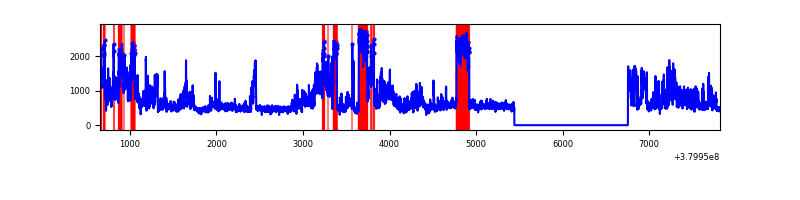

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7165 | 5853 | 316 | 316 | 4.41% | 5.40% |  |
| B | 7165 | 5853 | 456 | 456 | 6.36% | 7.79% |  |
| C | 7165 | 5853 | 65 | 65 | 0.91% | 1.11% |  |
| D | 7165 | 5853 | 267 | 267 | 3.73% | 4.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 2158311 | 15971.68 | 667 | 653 | 135.1 |
| A | 13 | 6 | 13334 | 93.87 | 667 | 653 | 135.1 |
| A | 10 | 83 | 12554 | 88.1 | 667 | 653 | 135.1 |
| B | 5 | 172 | 678557 | 5409.81 | 659 | 643 | 125.3 |
| B | 5 | 31 | 614909 | 4901.89 | 659 | 643 | 125.3 |
| B | 5 | 15 | 503257 | 4010.9 | 659 | 643 | 125.3 |
| C | 0 | 10 | 258137 | 1701.36 | 654 | 659 | 151.3 |
| C | 15 | 214 | 253109 | 1668.14 | 654 | 659 | 151.3 |
| C | 3 | 233 | 76004 | 497.86 | 654 | 659 | 151.3 |
| D | 8 | 195 | 689006 | 4292.54 | 649 | 629 | 160.4 |
| D | 12 | 233 | 513202 | 3196.27 | 649 | 629 | 160.4 |
| D | 13 | 249 | 334187 | 2079.98 | 649 | 629 | 160.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

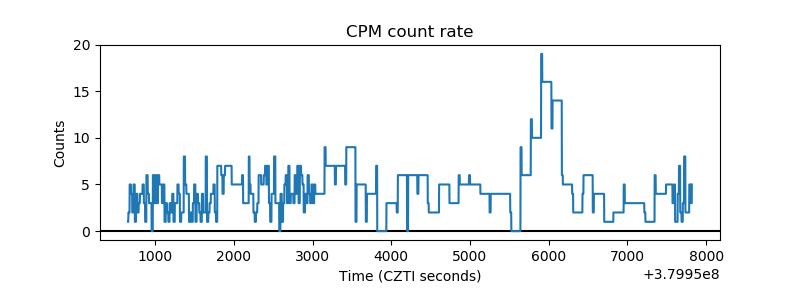

| _CPM_Rate |  |

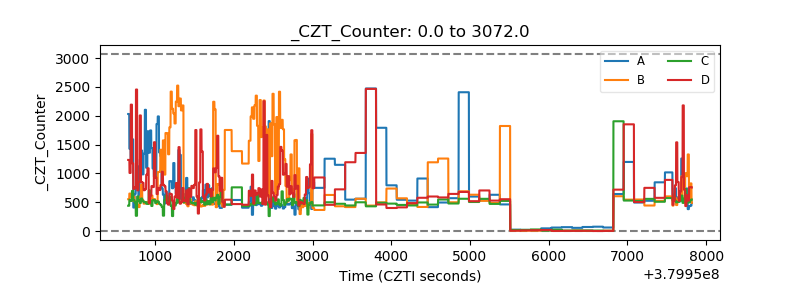

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

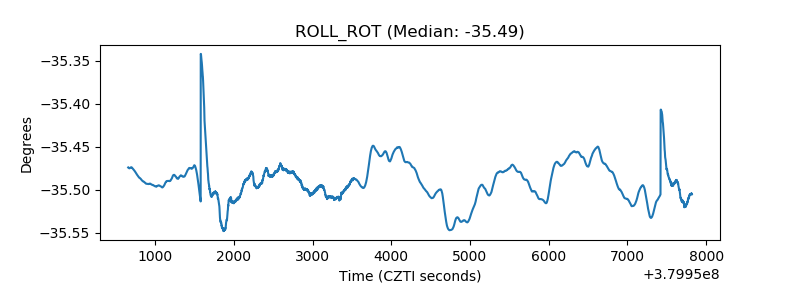

| _ROLL_ROT |  |
| _Roll_DEC |  |

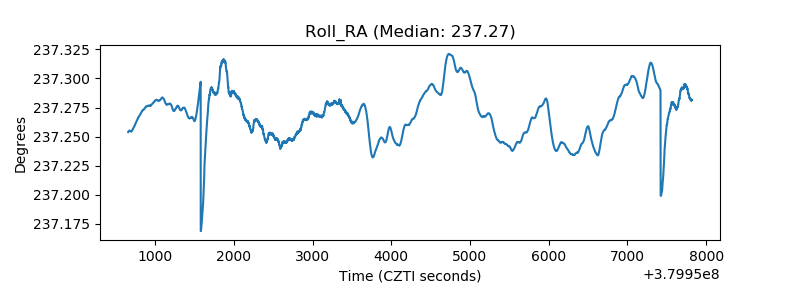

| _Roll_RA |  |
| Veto Counter |  |
