| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T04_9000004868_34068cztM0_level2.evt | modeM0/AS1C07_001T04_9000004868_34068cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,009,480,320 | 143,323,200 |
| Size | 962.7 MB | 136.7 MB |
| Events in quadrant A | 6,572,358 | 931,011 |
| Events in quadrant B | 9,715,974 | 864,423 |
| Events in quadrant C | 5,927,885 | 926,390 |
| Events in quadrant D | 7,638,280 | 881,690 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26531 | 2 |
| B | 0 | 35827 | 1 |
| C | 0 | 23948 | 1 |
| D | 0 | 30135 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10642 | 153 | 1.437700% |
| B | 10642 | 1880 | 17.665852% |
| C | 10642 | 138 | 1.296749% |
| D | 10642 | 343 | 3.223078% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

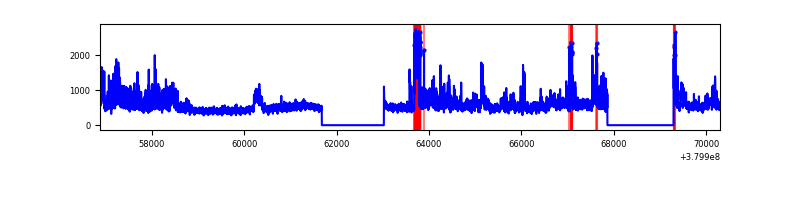

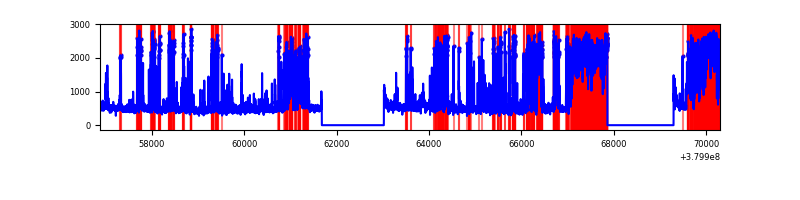

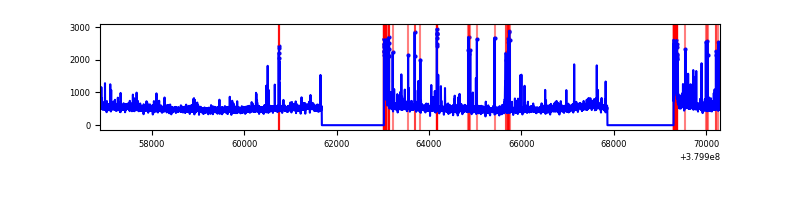

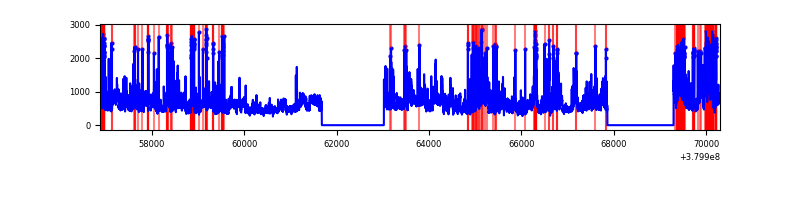

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13419 | 10644 | 121 | 121 | 0.90% | 1.14% |  |
| B | 13418 | 10642 | 1473 | 1473 | 10.98% | 13.84% |  |
| C | 13419 | 10644 | 110 | 110 | 0.82% | 1.03% |  |
| D | 13419 | 10644 | 304 | 304 | 2.27% | 2.86% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 1803053 | 7357.67 | 1221 | 1196 | 244.9 |
| A | 13 | 6 | 31230 | 122.64 | 1221 | 1196 | 244.9 |
| A | 10 | 83 | 24534 | 95.3 | 1221 | 1196 | 244.9 |
| B | 5 | 172 | 2428197 | 11105.55 | 1150 | 1119 | 218.5 |
| B | 5 | 31 | 1346845 | 6157.62 | 1150 | 1119 | 218.5 |
| B | 5 | 15 | 809546 | 3699.11 | 1150 | 1119 | 218.5 |
| C | 15 | 214 | 457239 | 1664.98 | 1186 | 1193 | 273.9 |
| C | 0 | 10 | 434796 | 1583.04 | 1186 | 1193 | 273.9 |
| C | 3 | 233 | 131919 | 477.27 | 1186 | 1193 | 273.9 |
| D | 8 | 195 | 1365503 | 4687.69 | 1180 | 1144 | 291.1 |
| D | 2 | 250 | 599574 | 2056.1 | 1180 | 1144 | 291.1 |
| D | 13 | 249 | 339371 | 1162.09 | 1180 | 1144 | 291.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

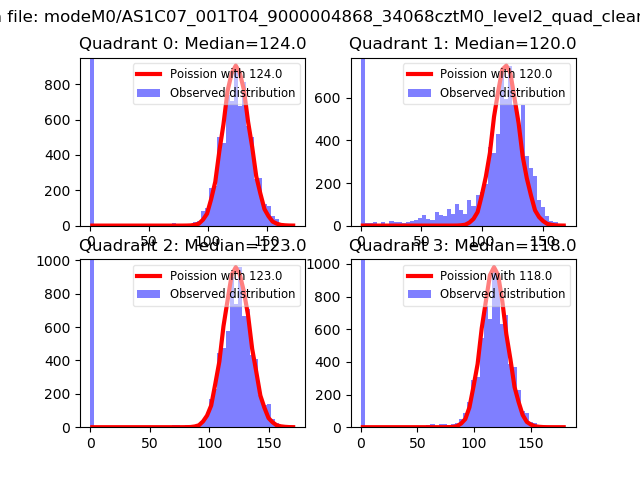

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

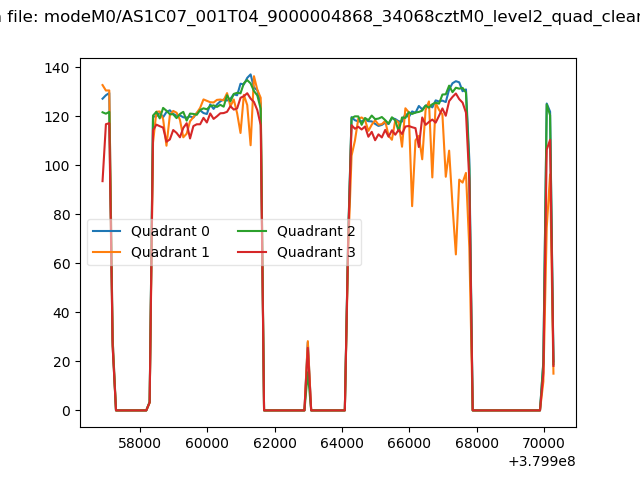

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

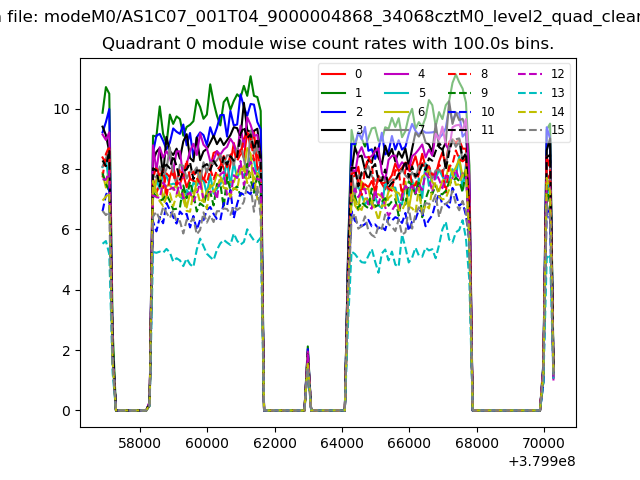

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

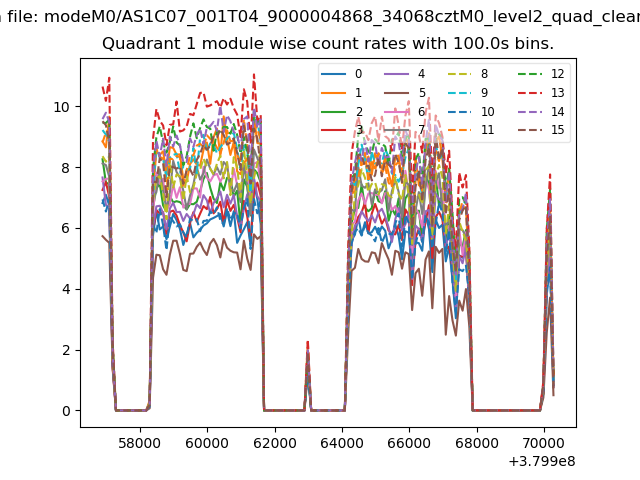

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

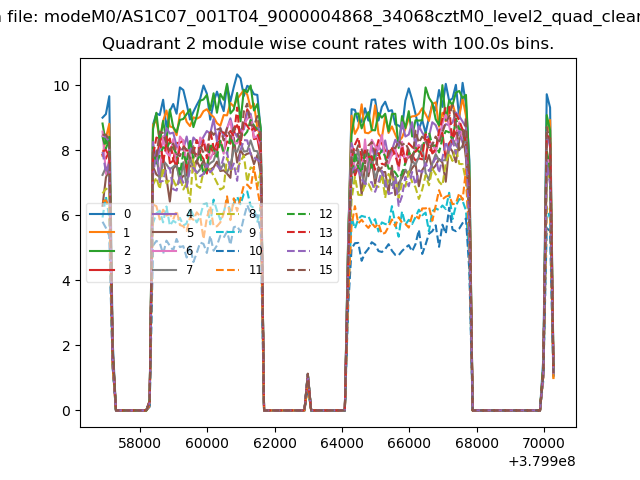

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

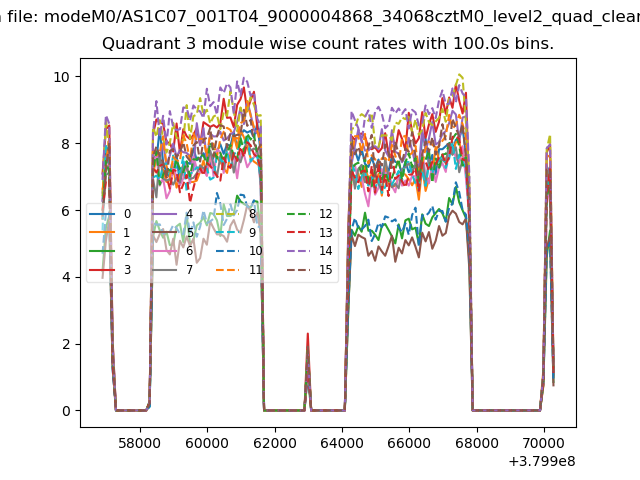

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

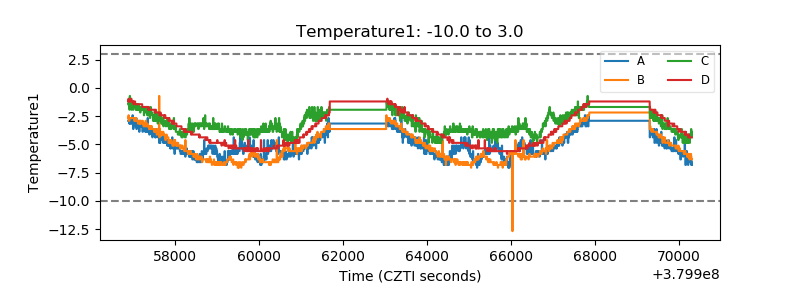

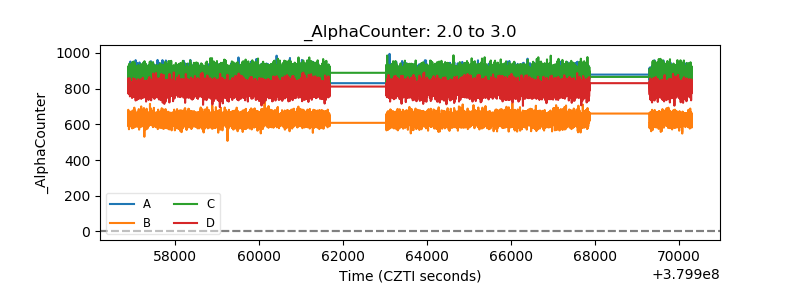

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

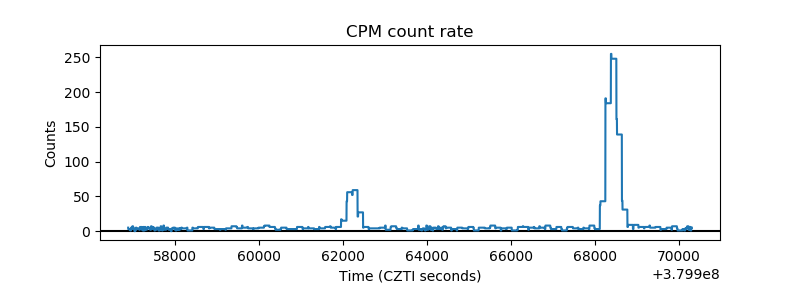

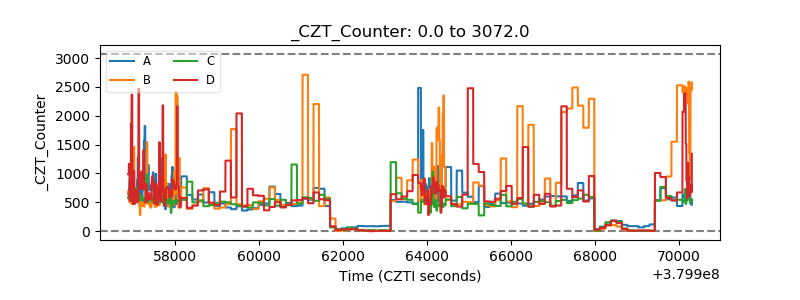

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

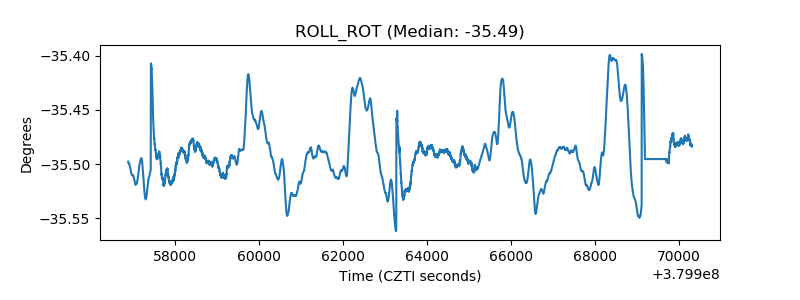

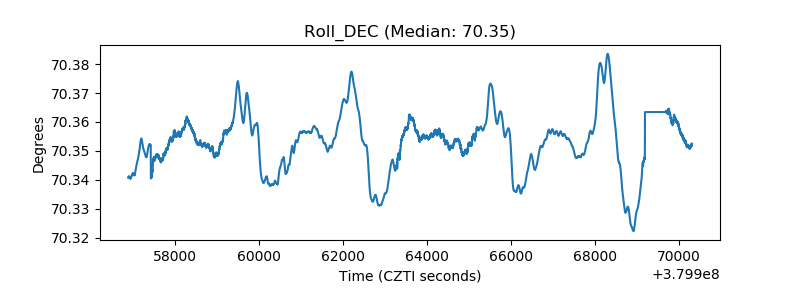

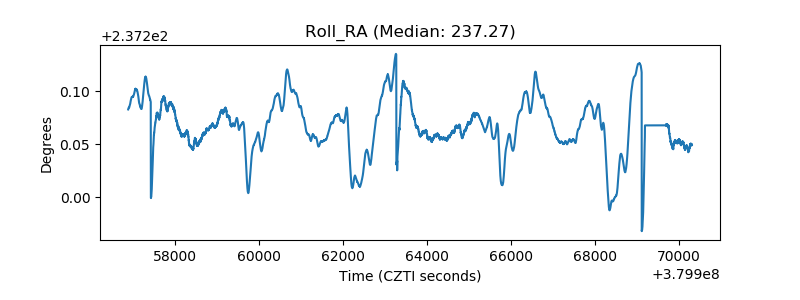

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

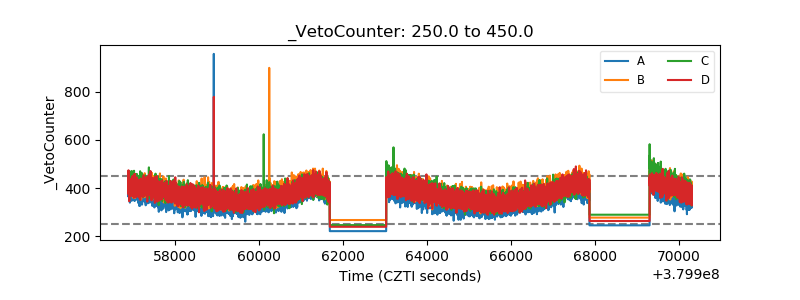

| Veto Counter |  |
