| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T04_9000004868_34073cztM0_level2.evt | modeM0/AS1C07_001T04_9000004868_34073cztM0_level2_quad_clean.evt |
| Size (bytes) | 463,536,000 | 103,852,800 |
| Size | 442.1 MB | 99.0 MB |
| Events in quadrant A | 2,474,842 | 709,491 |
| Events in quadrant B | 3,720,300 | 714,651 |
| Events in quadrant C | 3,585,103 | 693,612 |
| Events in quadrant D | 3,897,091 | 654,962 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10763 | 3 |
| B | 0 | 14573 | 2 |
| C | 0 | 14018 | 2 |
| D | 0 | 15301 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5316 | 4 | 0.075245% |
| B | 5316 | 257 | 4.834462% |
| C | 5316 | 88 | 1.655380% |
| D | 5316 | 91 | 1.711813% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

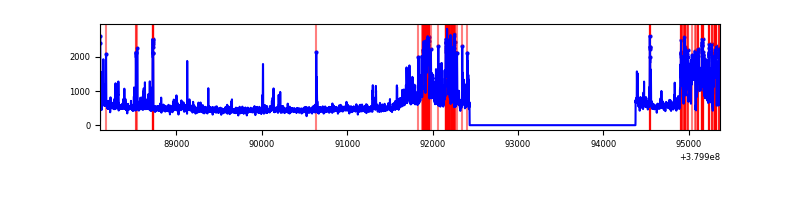

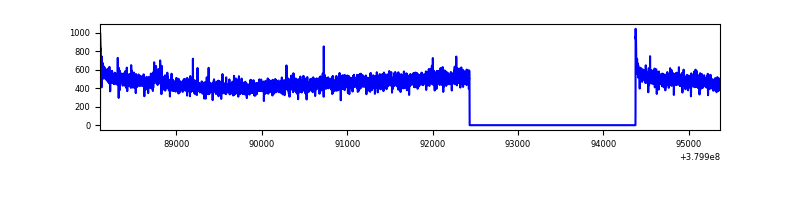

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7259 | 5317 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7259 | 5317 | 184 | 184 | 2.53% | 3.46% |  |
| C | 7259 | 5317 | 66 | 66 | 0.91% | 1.24% |  |
| D | 7259 | 5317 | 73 | 73 | 1.01% | 1.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 18899 | 146.46 | 630 | 620 | 124.8 |
| A | 13 | 6 | 11616 | 88.1 | 630 | 620 | 124.8 |
| A | 15 | 169 | 9423 | 70.53 | 630 | 620 | 124.8 |
| B | 5 | 31 | 489897 | 4152.8 | 624 | 609 | 117.8 |
| B | 5 | 172 | 386078 | 3271.64 | 624 | 609 | 117.8 |
| B | 5 | 15 | 176433 | 1492.29 | 624 | 609 | 117.8 |
| C | 3 | 233 | 463432 | 3371.35 | 603 | 608 | 137.3 |
| C | 0 | 10 | 398863 | 2901.01 | 603 | 608 | 137.3 |
| C | 15 | 214 | 231003 | 1678.27 | 603 | 608 | 137.3 |
| D | 8 | 195 | 995718 | 6841.35 | 599 | 583 | 145.5 |
| D | 13 | 249 | 221481 | 1518.63 | 599 | 583 | 145.5 |
| D | 2 | 250 | 103700 | 708.91 | 599 | 583 | 145.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

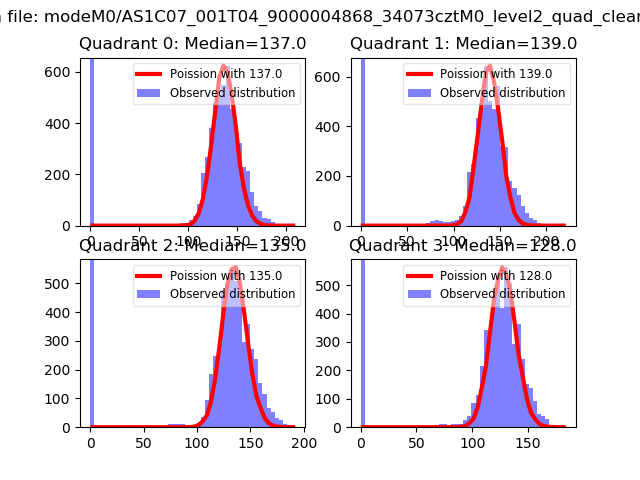

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

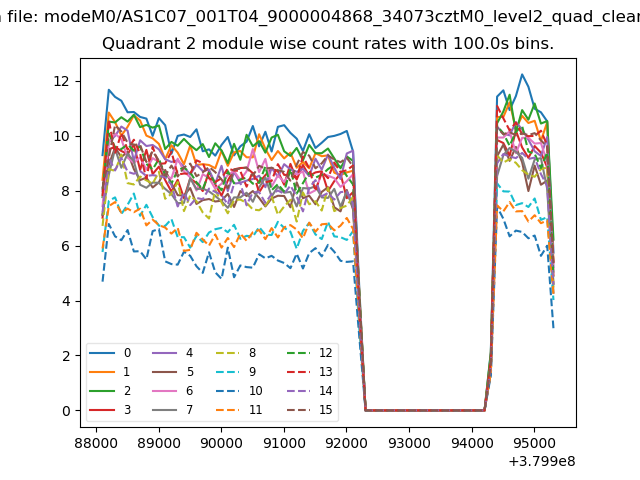

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

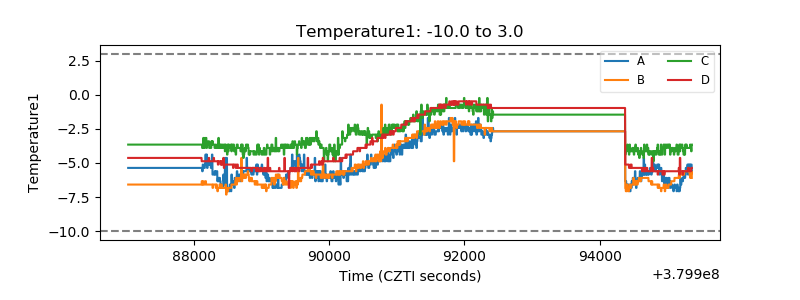

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

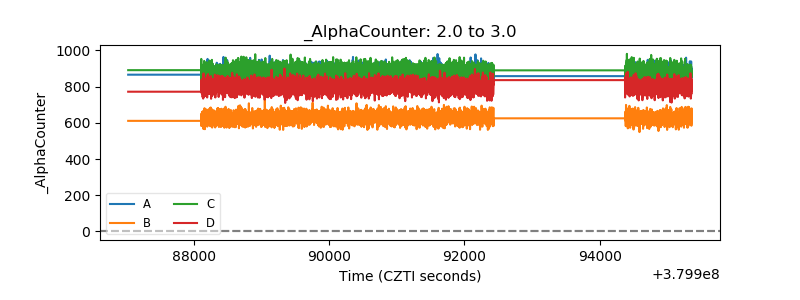

| Alpha Counter |  |
| _CPM_Rate |  |

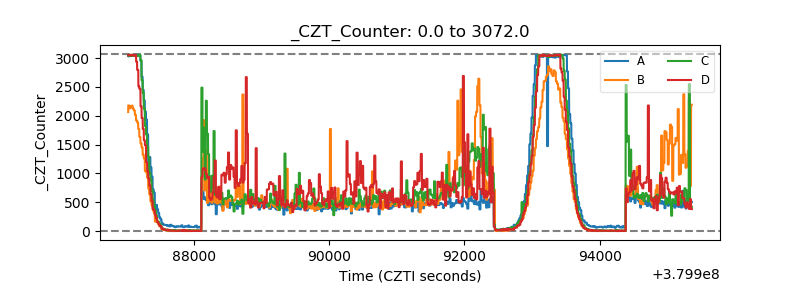

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

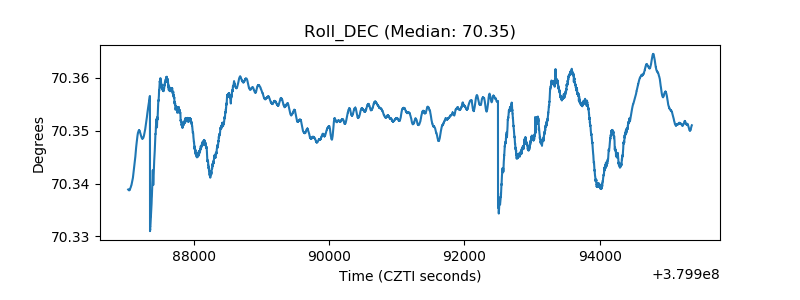

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
