| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T08_9000004874_34113cztM0_level2.evt | modeM0/AS1A11_097T08_9000004874_34113cztM0_level2_quad_clean.evt |
| Size (bytes) | 497,589,120 | 85,639,680 |
| Size | 474.5 MB | 81.7 MB |
| Events in quadrant A | 2,735,976 | 559,952 |
| Events in quadrant B | 3,161,042 | 569,393 |
| Events in quadrant C | 3,445,209 | 557,431 |
| Events in quadrant D | 5,337,407 | 504,593 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11944 | 3 |
| B | 0 | 13198 | 2 |
| C | 0 | 13802 | 2 |
| D | 0 | 19773 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5744 | 19 | 0.330780% |
| B | 5744 | 91 | 1.584262% |
| C | 5744 | 136 | 2.367688% |
| D | 5744 | 532 | 9.261838% |

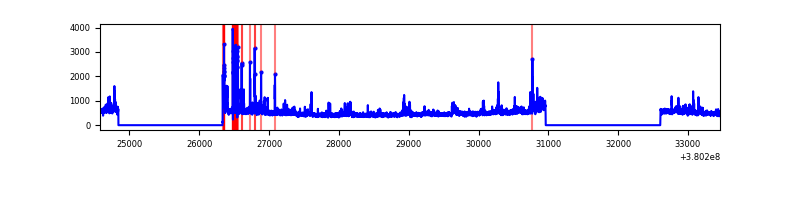

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8880 | 5746 | 5 | 5 | 0.06% | 0.09% |  |
| B | 8880 | 5746 | 44 | 44 | 0.50% | 0.77% |  |
| C | 8880 | 5746 | 79 | 79 | 0.89% | 1.37% |  |
| D | 8880 | 5746 | 428 | 428 | 4.82% | 7.45% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 93148 | 677.83 | 674 | 658 | 136.5 |
| A | 10 | 83 | 20579 | 145.99 | 674 | 658 | 136.5 |
| A | 13 | 6 | 13512 | 94.2 | 674 | 658 | 136.5 |
| B | 5 | 172 | 204146 | 1571.39 | 671 | 654 | 129.5 |
| B | 0 | 182 | 69729 | 533.4 | 671 | 654 | 129.5 |
| B | 0 | 190 | 68870 | 526.77 | 671 | 654 | 129.5 |
| C | 0 | 10 | 542504 | 3559.87 | 654 | 659 | 152.2 |
| C | 15 | 214 | 247278 | 1620.26 | 654 | 659 | 152.2 |
| C | 14 | 254 | 41117 | 265.81 | 654 | 659 | 152.2 |
| D | 2 | 250 | 1202420 | 7311.21 | 629 | 612 | 164.4 |
| D | 8 | 195 | 1073942 | 6529.61 | 629 | 612 | 164.4 |
| D | 10 | 118 | 247087 | 1499.43 | 629 | 612 | 164.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

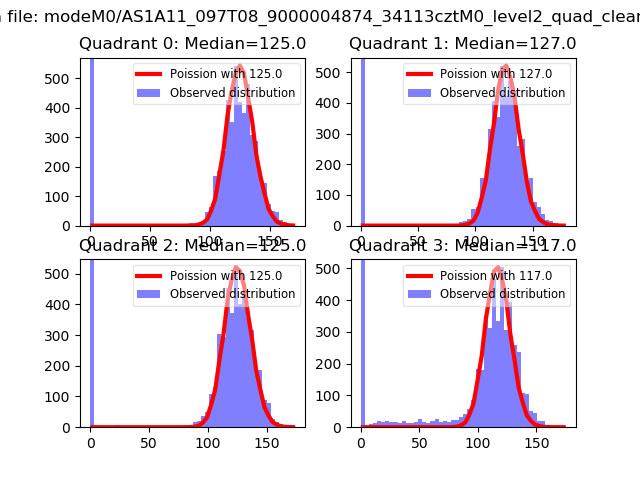

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

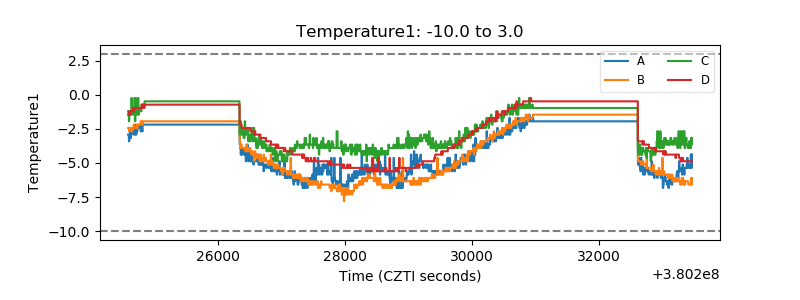

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

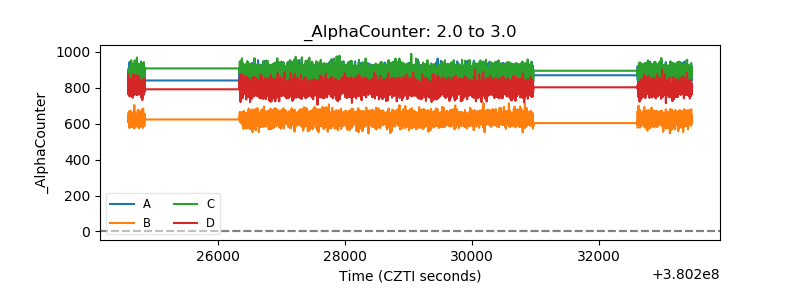

| Alpha Counter |  |

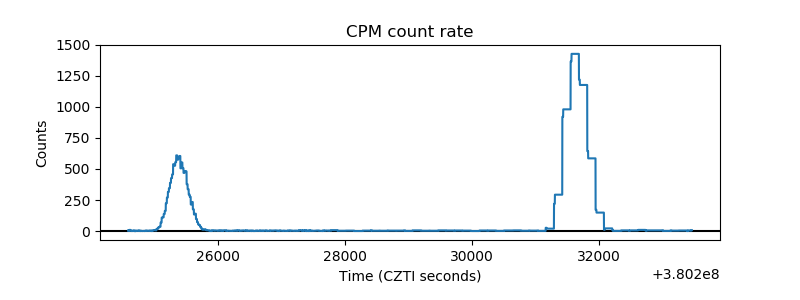

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

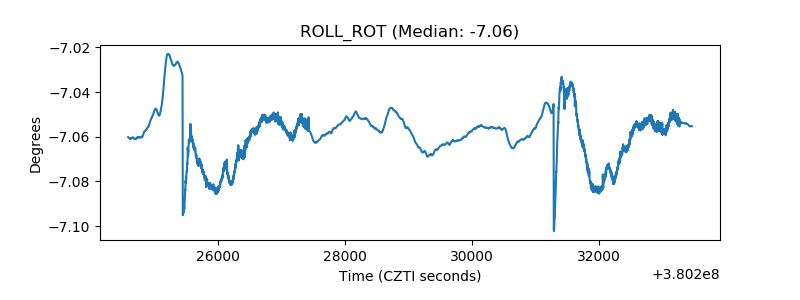

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
