| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T08_9000004874_34117cztM0_level2.evt | modeM0/AS1A11_097T08_9000004874_34117cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,882,880 | 84,813,120 |
| Size | 440.5 MB | 80.9 MB |
| Events in quadrant A | 2,639,162 | 555,494 |
| Events in quadrant B | 3,103,643 | 572,710 |
| Events in quadrant C | 3,704,183 | 541,553 |
| Events in quadrant D | 4,169,042 | 514,816 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39 | 0 |
| B | 0 | 39 | 0 |
| C | 0 | 39 | 0 |
| D | 0 | 39 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11165 | 3 |
| B | 0 | 12631 | 2 |
| C | 0 | 14461 | 2 |
| D | 0 | 16175 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5483 | 6 | 0.109429% |
| B | 5483 | 43 | 0.784242% |
| C | 5483 | 142 | 2.589823% |
| D | 5483 | 171 | 3.118731% |

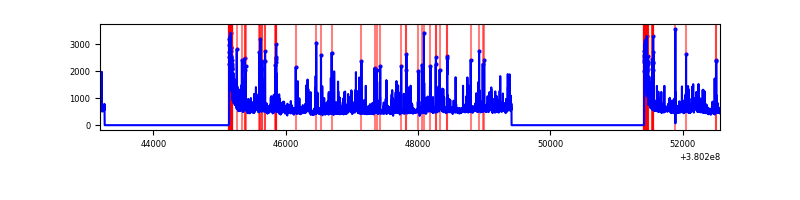

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9368 | 5485 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9368 | 5485 | 22 | 22 | 0.23% | 0.40% |  |
| C | 9368 | 5485 | 127 | 127 | 1.36% | 2.32% |  |
| D | 9368 | 5485 | 130 | 130 | 1.39% | 2.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 19948 | 142.38 | 673 | 659 | 135.5 |
| A | 13 | 6 | 13415 | 94.16 | 673 | 659 | 135.5 |
| A | 13 | 254 | 10072 | 69.48 | 673 | 659 | 135.5 |
| B | 5 | 172 | 225265 | 1770.13 | 675 | 658 | 126.9 |
| B | 0 | 219 | 59275 | 461.96 | 675 | 658 | 126.9 |
| B | 0 | 229 | 40906 | 317.2 | 675 | 658 | 126.9 |
| C | 0 | 10 | 710211 | 4799.27 | 645 | 651 | 147.8 |
| C | 15 | 214 | 237187 | 1599.86 | 645 | 651 | 147.8 |
| C | 14 | 254 | 196948 | 1327.7 | 645 | 651 | 147.8 |
| D | 8 | 195 | 635630 | 3803.2 | 634 | 622 | 167.0 |
| D | 2 | 250 | 285911 | 1708.66 | 634 | 622 | 167.0 |
| D | 12 | 233 | 175902 | 1049.79 | 634 | 622 | 167.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

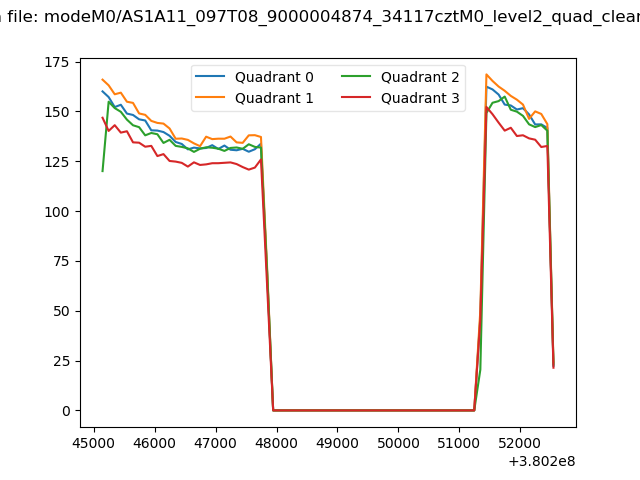

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

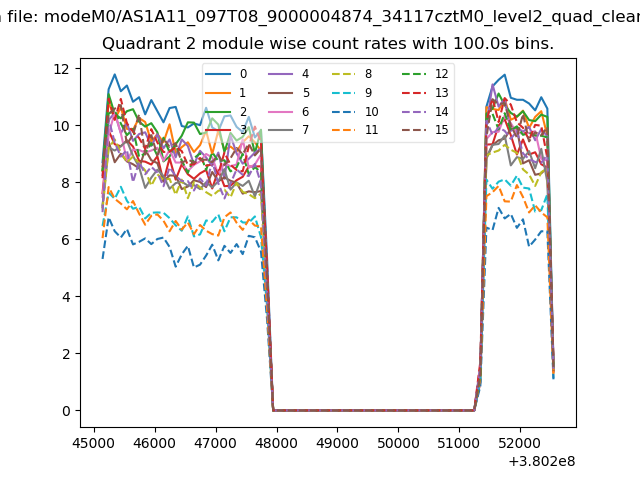

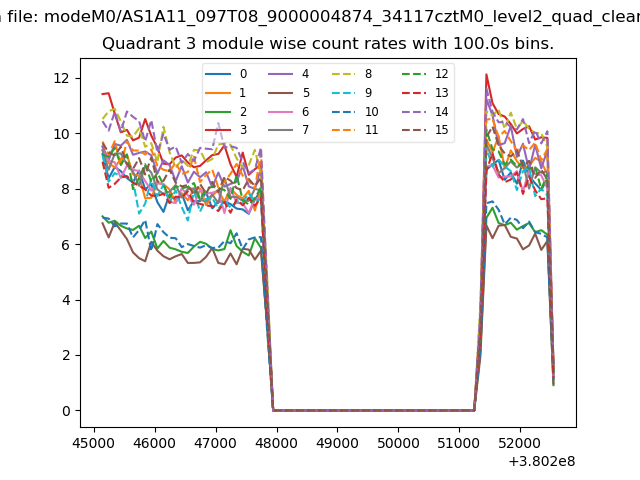

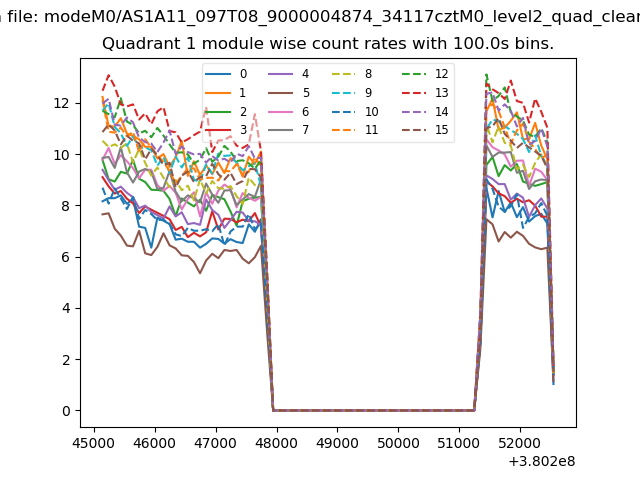

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

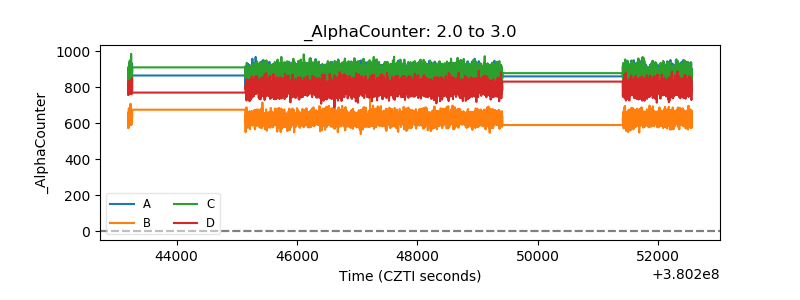

| Alpha Counter |  |

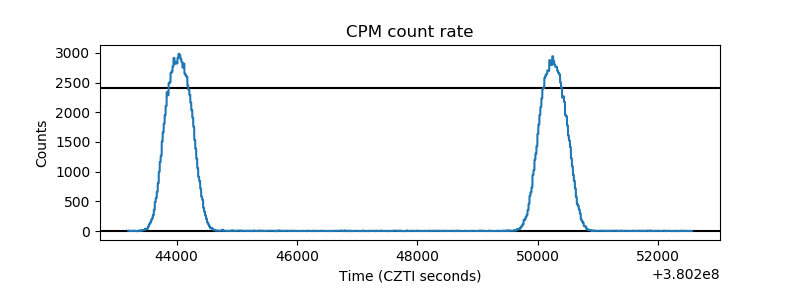

| _CPM_Rate |  |

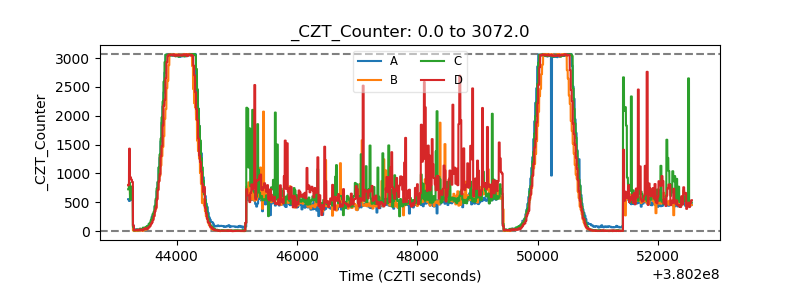

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
