| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T08_9000004874_34120cztM0_level2.evt | modeM0/AS1A11_097T08_9000004874_34120cztM0_level2_quad_clean.evt |
| Size (bytes) | 464,538,240 | 61,208,640 |
| Size | 443.0 MB | 58.4 MB |
| Events in quadrant A | 2,413,896 | 385,716 |
| Events in quadrant B | 3,116,312 | 387,137 |
| Events in quadrant C | 4,056,737 | 364,506 |
| Events in quadrant D | 4,139,934 | 362,713 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10167 | 2 |
| B | 0 | 12289 | 1 |
| C | 0 | 15487 | 1 |
| D | 0 | 15754 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5038 | 7 | 0.138944% |
| B | 5038 | 229 | 4.545455% |
| C | 5038 | 275 | 5.458515% |
| D | 5038 | 405 | 8.038904% |

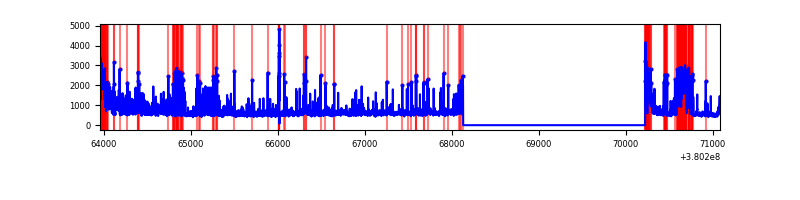

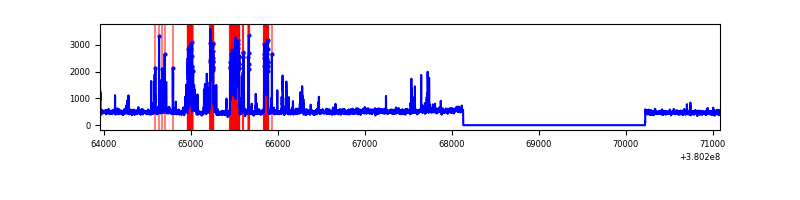

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7131 | 5039 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7131 | 5039 | 181 | 181 | 2.54% | 3.59% |  |
| C | 7131 | 5039 | 262 | 262 | 3.67% | 5.20% |  |
| D | 7131 | 5039 | 342 | 342 | 4.80% | 6.79% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 20427 | 159.88 | 617 | 605 | 124.0 |
| A | 13 | 254 | 9215 | 69.45 | 617 | 605 | 124.0 |
| A | 13 | 6 | 8722 | 65.47 | 617 | 605 | 124.0 |
| B | 5 | 172 | 649932 | 5699.82 | 598 | 586 | 113.9 |
| B | 4 | 251 | 45151 | 391.18 | 598 | 586 | 113.9 |
| B | 0 | 190 | 15821 | 133.73 | 598 | 586 | 113.9 |
| C | 0 | 10 | 1182320 | 8804.11 | 581 | 584 | 134.2 |
| C | 3 | 233 | 344459 | 2561.92 | 581 | 584 | 134.2 |
| C | 15 | 214 | 217925 | 1619.22 | 581 | 584 | 134.2 |
| D | 10 | 118 | 639593 | 4165.03 | 570 | 559 | 153.4 |
| D | 8 | 195 | 453781 | 2953.96 | 570 | 559 | 153.4 |
| D | 15 | 0 | 397682 | 2588.33 | 570 | 559 | 153.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

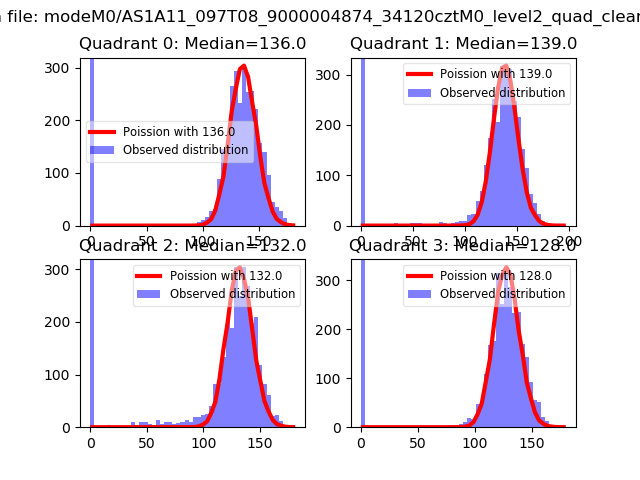

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

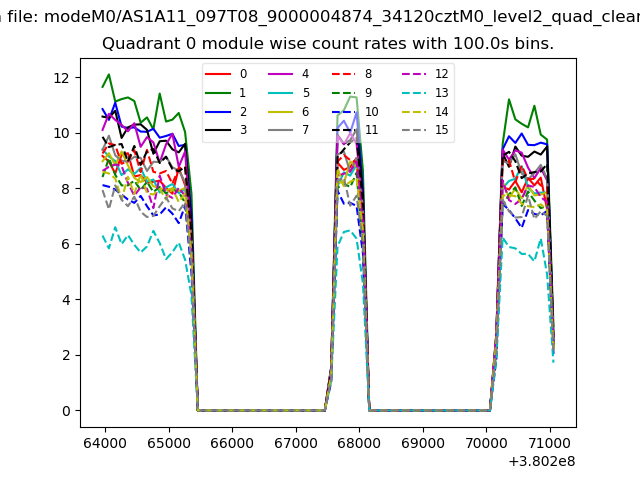

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

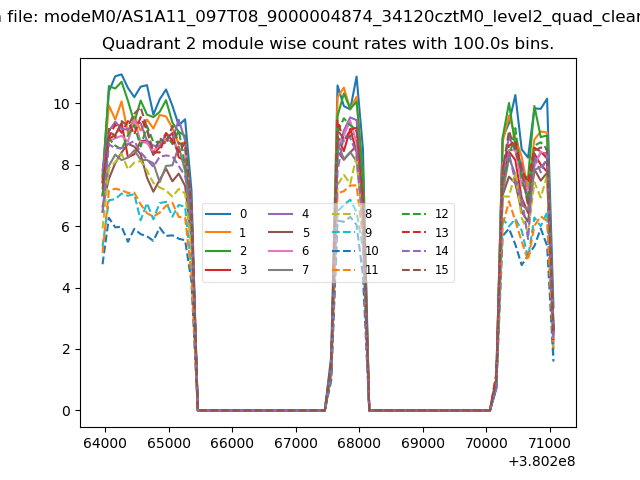

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

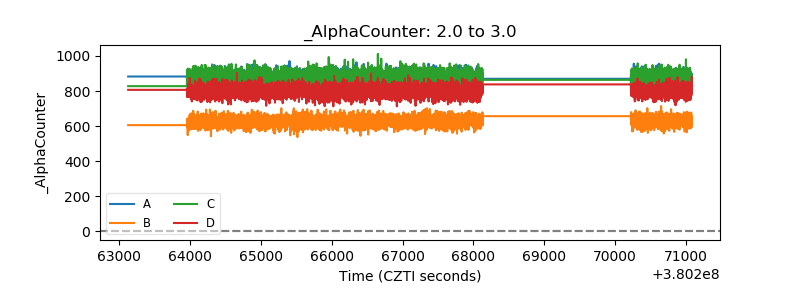

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

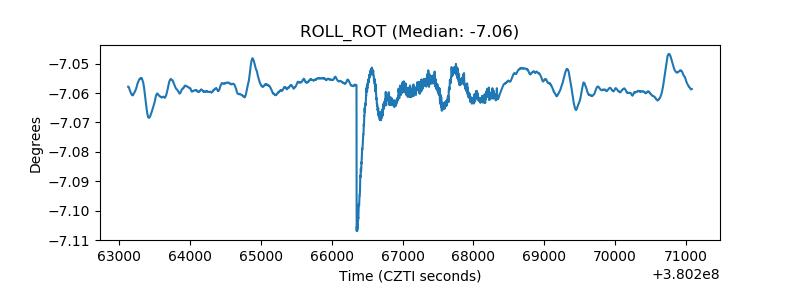

| _ROLL_ROT |  |

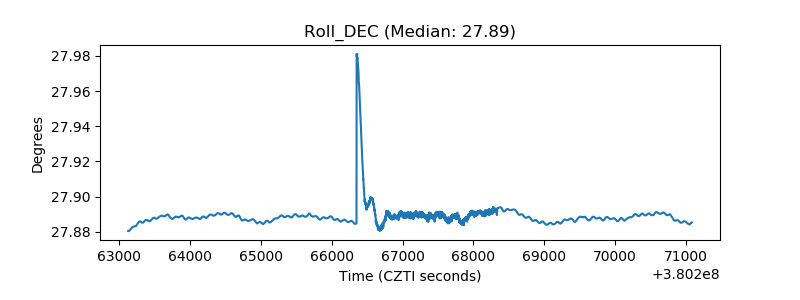

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
