| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T08_9000004874_34127cztM0_level2.evt | modeM0/AS1A11_097T08_9000004874_34127cztM0_level2_quad_clean.evt |
| Size (bytes) | 419,970,240 | 82,664,640 |
| Size | 400.5 MB | 78.8 MB |
| Events in quadrant A | 2,574,309 | 534,431 |
| Events in quadrant B | 2,885,853 | 537,685 |
| Events in quadrant C | 3,315,468 | 528,465 |
| Events in quadrant D | 3,561,565 | 509,991 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11376 | 3 |
| B | 0 | 12217 | 2 |
| C | 0 | 13401 | 2 |
| D | 0 | 14513 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5609 | 2 | 0.035657% |
| B | 5609 | 18 | 0.320913% |
| C | 5609 | 96 | 1.711535% |
| D | 5609 | 54 | 0.962738% |

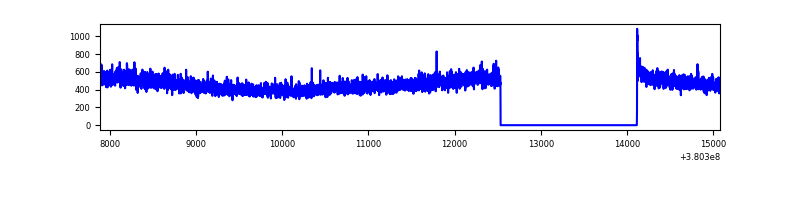

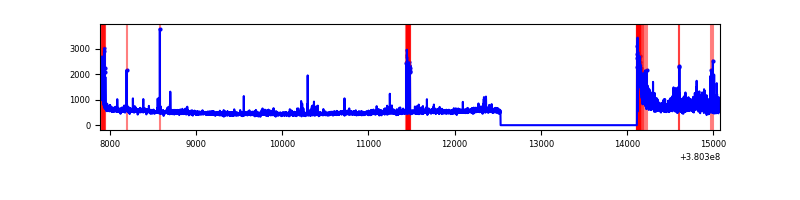

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7192 | 5610 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7192 | 5610 | 8 | 8 | 0.11% | 0.14% |  |
| C | 7192 | 5610 | 73 | 73 | 1.02% | 1.30% |  |
| D | 7192 | 5610 | 34 | 34 | 0.47% | 0.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 6 | 28596 | 210.77 | 655 | 642 | 132.6 |
| A | 10 | 83 | 16228 | 117.51 | 655 | 642 | 132.6 |
| A | 13 | 254 | 9645 | 67.88 | 655 | 642 | 132.6 |
| B | 5 | 172 | 102234 | 814.41 | 653 | 637 | 124.7 |
| B | 0 | 182 | 44875 | 354.61 | 653 | 637 | 124.7 |
| B | 0 | 229 | 37488 | 295.4 | 653 | 637 | 124.7 |
| C | 0 | 10 | 503092 | 3398.26 | 634 | 639 | 147.9 |
| C | 15 | 214 | 241770 | 1630.85 | 634 | 639 | 147.9 |
| C | 9 | 69 | 49124 | 327.92 | 634 | 639 | 147.9 |
| D | 8 | 195 | 566978 | 3281.91 | 629 | 615 | 172.6 |
| D | 10 | 118 | 100478 | 578.68 | 629 | 615 | 172.6 |
| D | 2 | 250 | 94732 | 545.38 | 629 | 615 | 172.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

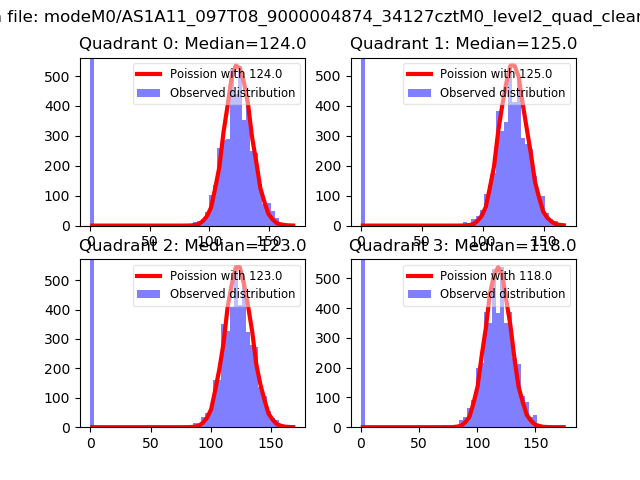

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

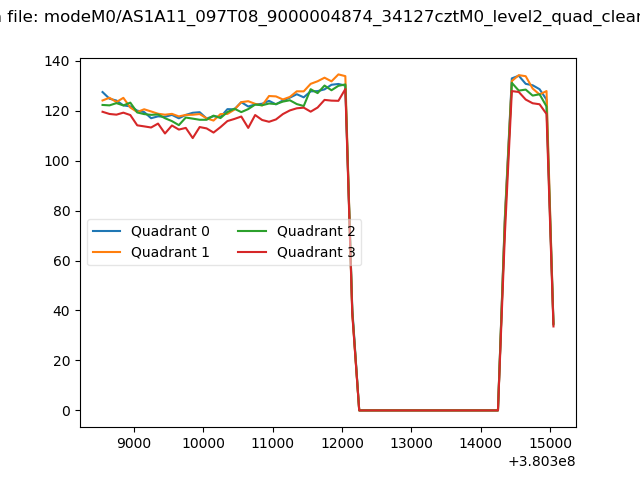

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

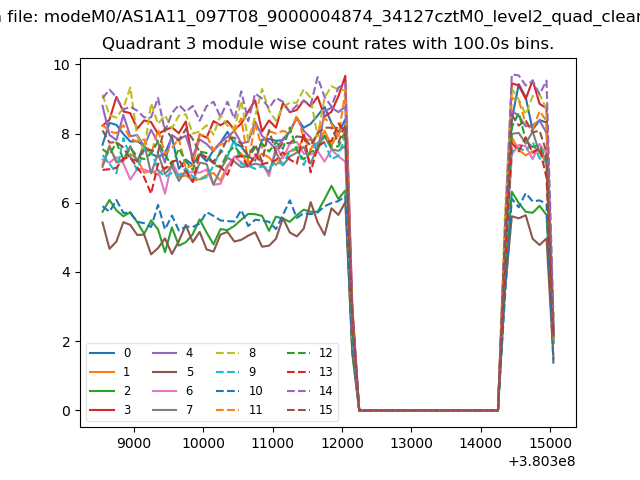

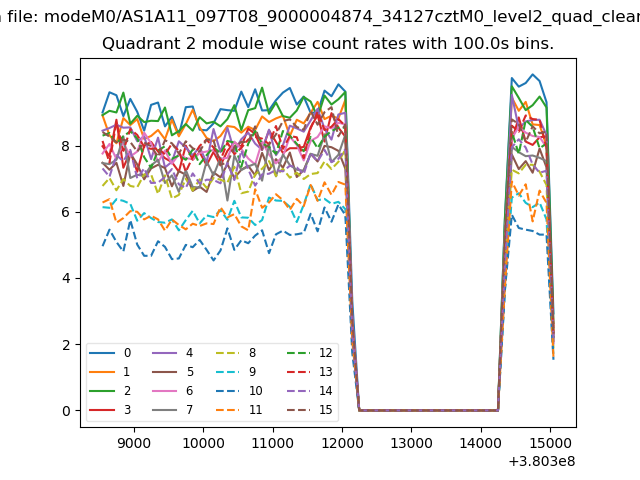

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

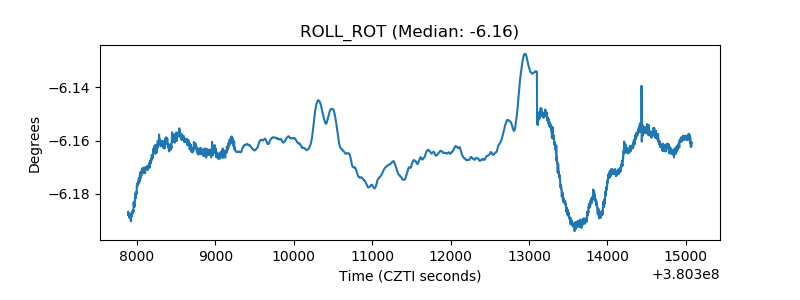

| _ROLL_ROT |  |

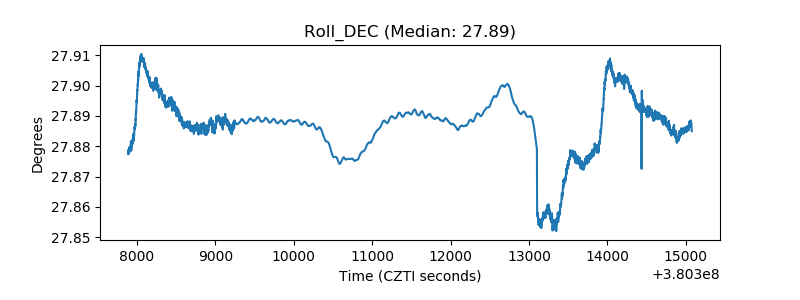

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
