| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T08_9000004874_34134cztM0_level2.evt | modeM0/AS1A11_097T08_9000004874_34134cztM0_level2_quad_clean.evt |
| Size (bytes) | 476,599,680 | 64,560,960 |
| Size | 454.5 MB | 61.6 MB |
| Events in quadrant A | 2,482,186 | 407,437 |
| Events in quadrant B | 4,154,914 | 418,662 |
| Events in quadrant C | 3,662,182 | 390,064 |
| Events in quadrant D | 3,784,318 | 376,479 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10455 | 4 |
| B | 0 | 15691 | 2 |
| C | 0 | 13995 | 2 |
| D | 0 | 14799 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5165 | 6 | 0.116167% |
| B | 5165 | 442 | 8.557599% |
| C | 5165 | 216 | 4.181994% |
| D | 5165 | 110 | 2.129719% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7289 | 5167 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7289 | 5167 | 325 | 325 | 4.46% | 6.29% |  |
| C | 7289 | 5167 | 215 | 215 | 2.95% | 4.16% |  |
| D | 7289 | 5167 | 77 | 77 | 1.06% | 1.49% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 20719 | 156.94 | 635 | 622 | 128.1 |
| A | 13 | 6 | 9959 | 72.91 | 635 | 622 | 128.1 |
| A | 13 | 254 | 9054 | 65.85 | 635 | 622 | 128.1 |
| B | 5 | 31 | 774551 | 6545.08 | 616 | 601 | 118.2 |
| B | 5 | 15 | 465801 | 3934.07 | 616 | 601 | 118.2 |
| B | 5 | 172 | 140215 | 1180.68 | 616 | 601 | 118.2 |
| C | 0 | 10 | 791846 | 5688.99 | 599 | 606 | 139.1 |
| C | 14 | 254 | 269415 | 1932.73 | 599 | 606 | 139.1 |
| C | 15 | 214 | 225372 | 1616.06 | 599 | 606 | 139.1 |
| D | 8 | 195 | 689919 | 4675.44 | 606 | 590 | 147.4 |
| D | 2 | 250 | 236013 | 1596.78 | 606 | 590 | 147.4 |
| D | 7 | 80 | 201157 | 1360.37 | 606 | 590 | 147.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

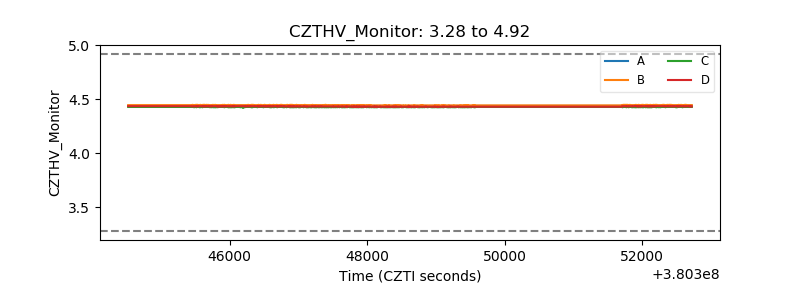

| CZT HV Monitor |  |

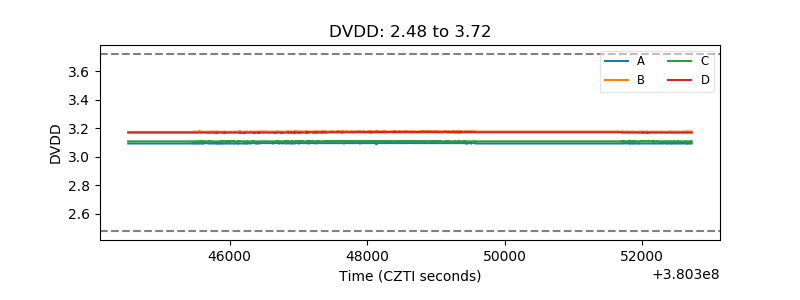

| D_VDD |  |

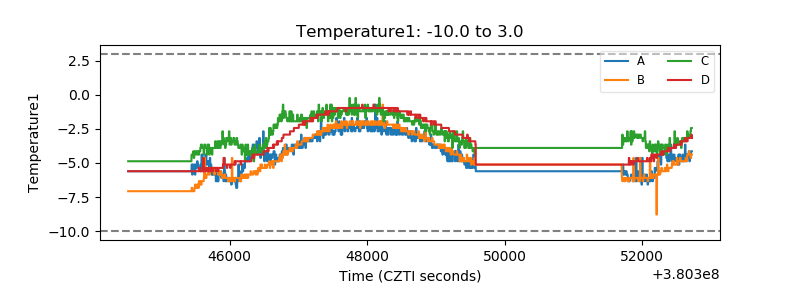

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

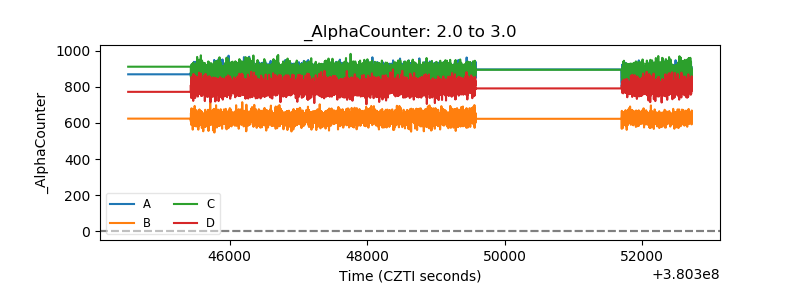

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

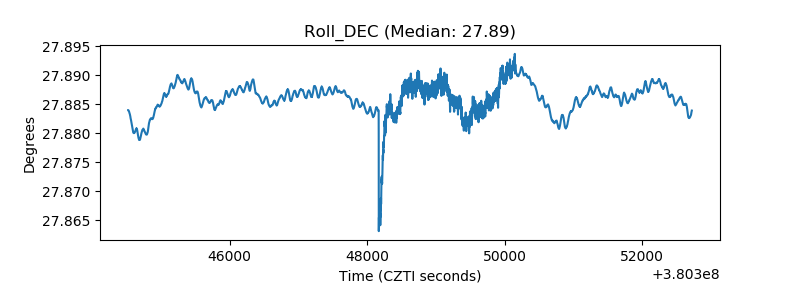

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
