| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_097T08_9000004874_34137cztM0_level2.evt | modeM0/AS1A11_097T08_9000004874_34137cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,058,434,560 | 118,558,080 |
| Size | 1009.4 MB | 113.1 MB |
| Events in quadrant A | 5,658,341 | 703,049 |
| Events in quadrant B | 9,824,753 | 702,727 |
| Events in quadrant C | 6,990,226 | 692,321 |
| Events in quadrant D | 8,768,439 | 658,781 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 37 | 0 |
| B | 0 | 37 | 0 |
| C | 0 | 37 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24332 | 2 |
| B | 0 | 36725 | 2 |
| C | 0 | 27583 | 2 |
| D | 0 | 34142 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 244 | 0 |
| B | 0 | 244 | 0 |
| C | 0 | 244 | 0 |
| D | 0 | 244 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12050 | 12 | 0.099585% |
| B | 12050 | 1467 | 12.174274% |
| C | 12050 | 159 | 1.319502% |
| D | 12050 | 242 | 2.008299% |

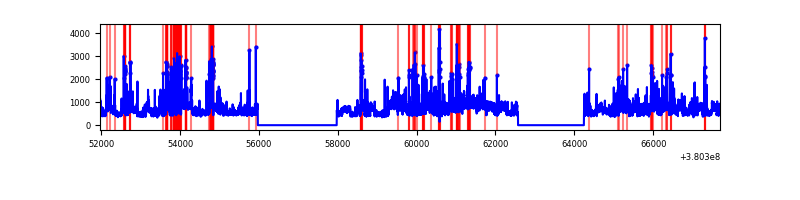

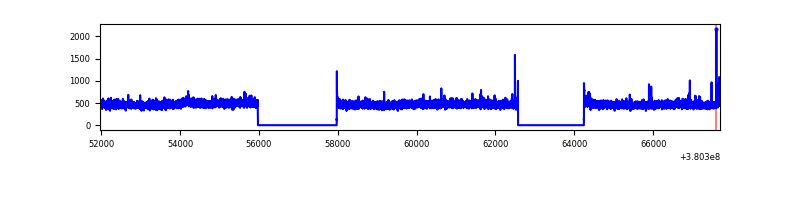

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15726 | 12052 | 1 | 1 | 0.01% | 0.01% |  |
| B | 15726 | 12052 | 1225 | 1225 | 7.79% | 10.16% |  |
| C | 15726 | 12052 | 142 | 142 | 0.90% | 1.18% |  |
| D | 15726 | 12052 | 214 | 214 | 1.36% | 1.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 169 | 42863 | 144.52 | 1440 | 1411 | 286.8 |
| A | 13 | 6 | 28472 | 94.34 | 1440 | 1411 | 286.8 |
| A | 10 | 83 | 26005 | 85.74 | 1440 | 1411 | 286.8 |
| B | 5 | 31 | 2114513 | 8093.97 | 1371 | 1335 | 261.1 |
| B | 5 | 15 | 1176451 | 4500.97 | 1371 | 1335 | 261.1 |
| B | 5 | 172 | 497098 | 1898.89 | 1371 | 1335 | 261.1 |
| C | 0 | 10 | 997448 | 3121.14 | 1386 | 1395 | 319.1 |
| C | 15 | 214 | 516864 | 1615.23 | 1386 | 1395 | 319.1 |
| C | 14 | 67 | 31056 | 92.94 | 1386 | 1395 | 319.1 |
| D | 8 | 195 | 1837757 | 5315.26 | 1394 | 1351 | 345.5 |
| D | 7 | 80 | 547348 | 1580.32 | 1394 | 1351 | 345.5 |
| D | 2 | 250 | 207871 | 597.75 | 1394 | 1351 | 345.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

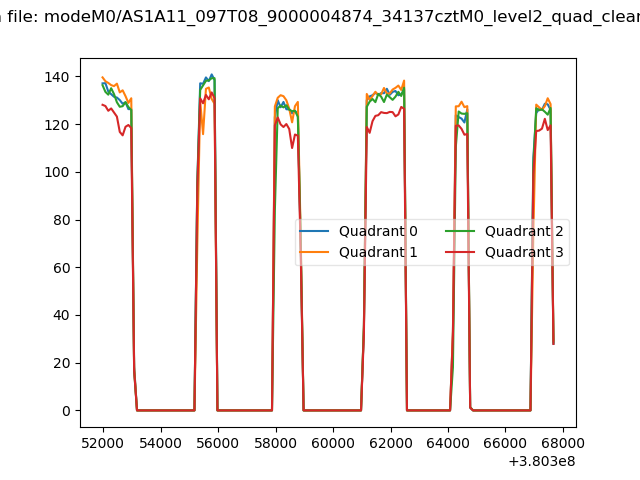

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

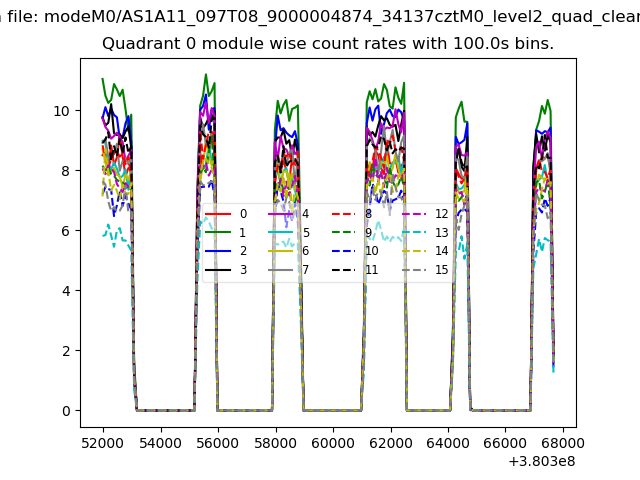

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

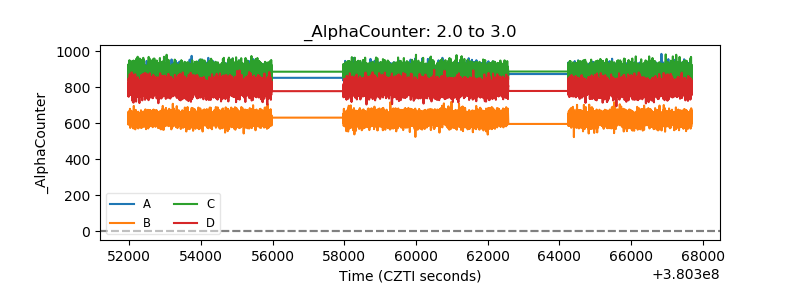

| Alpha Counter |  |

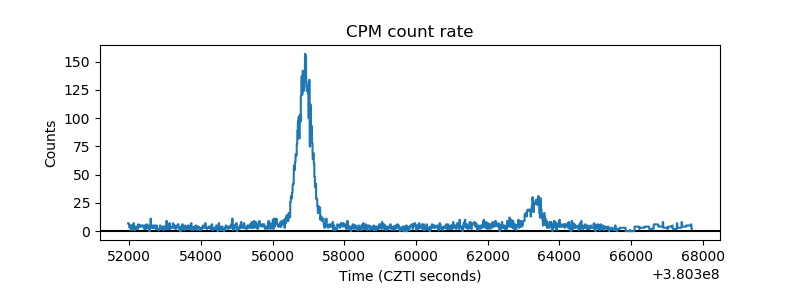

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

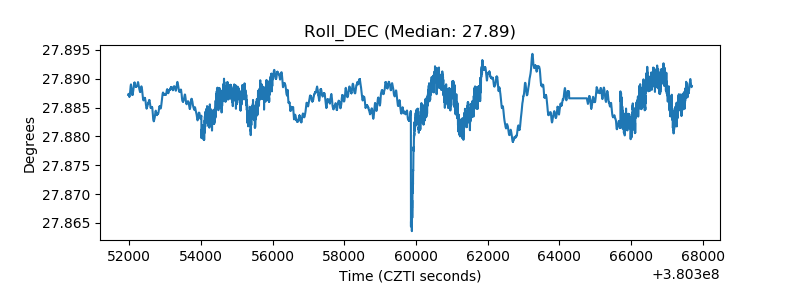

| _Roll_DEC |  |
| _Roll_RA |  |

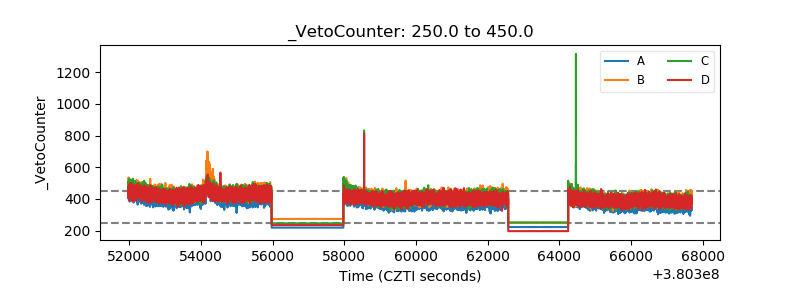

| Veto Counter |  |
