| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_059T05_9000004876_34147cztM0_level2.evt | modeM0/AS1A11_059T05_9000004876_34147cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,154,880 | 57,222,720 |
| Size | 516.1 MB | 54.6 MB |
| Events in quadrant A | 2,603,669 | 355,434 |
| Events in quadrant B | 5,626,913 | 338,802 |
| Events in quadrant C | 3,458,113 | 353,635 |
| Events in quadrant D | 4,347,229 | 319,028 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10652 | 3 |
| B | 0 | 20018 | 2 |
| C | 0 | 13460 | 2 |
| D | 0 | 16335 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5213 | 4 | 0.076731% |
| B | 5213 | 1088 | 20.870900% |
| C | 5213 | 143 | 2.743142% |
| D | 5213 | 246 | 4.718972% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7307 | 5214 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7307 | 5214 | 949 | 949 | 12.99% | 18.20% |  |
| C | 7307 | 5214 | 115 | 115 | 1.57% | 2.21% |  |
| D | 7307 | 5214 | 223 | 223 | 3.05% | 4.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 20506 | 149.68 | 665 | 654 | 132.6 |
| A | 13 | 6 | 12985 | 92.97 | 665 | 654 | 132.6 |
| A | 13 | 254 | 8798 | 61.4 | 665 | 654 | 132.6 |
| B | 5 | 31 | 1710615 | 14338.64 | 632 | 619 | 119.3 |
| B | 5 | 15 | 823313 | 6898.45 | 632 | 619 | 119.3 |
| B | 5 | 172 | 288171 | 2411.18 | 632 | 619 | 119.3 |
| C | 0 | 10 | 523274 | 3443.24 | 659 | 666 | 151.8 |
| C | 15 | 214 | 223955 | 1471.16 | 659 | 666 | 151.8 |
| C | 9 | 187 | 54389 | 353.96 | 659 | 666 | 151.8 |
| D | 8 | 195 | 1095218 | 7060.5 | 639 | 625 | 155.0 |
| D | 10 | 118 | 571558 | 3682.72 | 639 | 625 | 155.0 |
| D | 12 | 217 | 96269 | 616.94 | 639 | 625 | 155.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

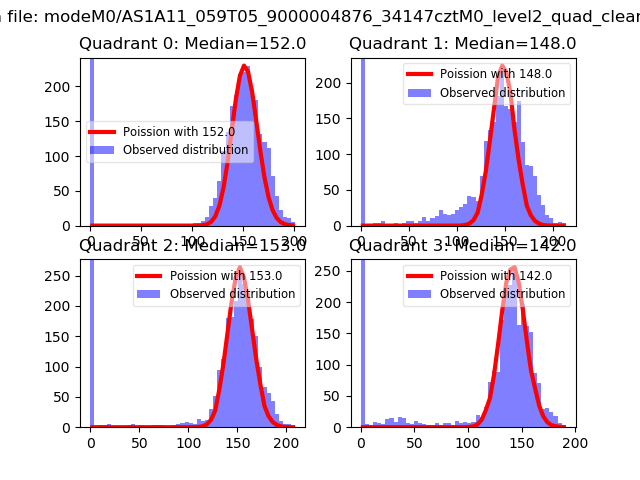

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

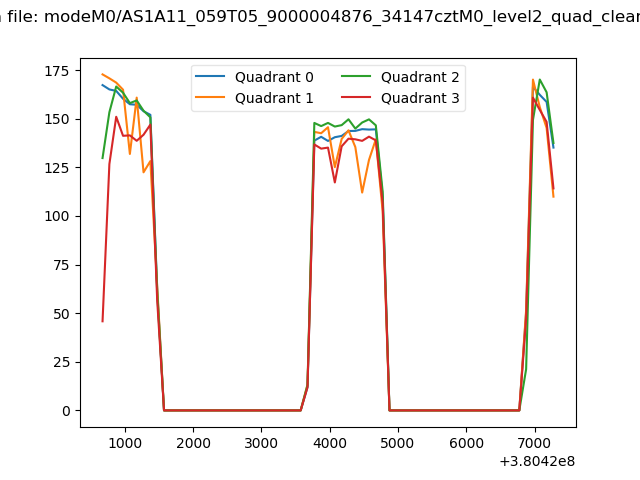

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

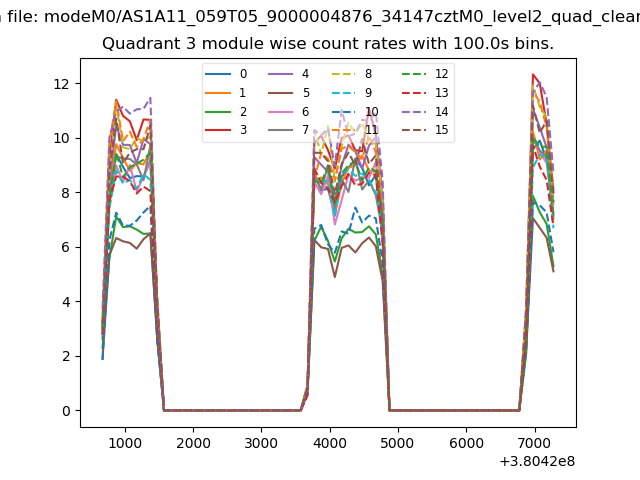

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
